neoVI FIRE 2 User's Guide

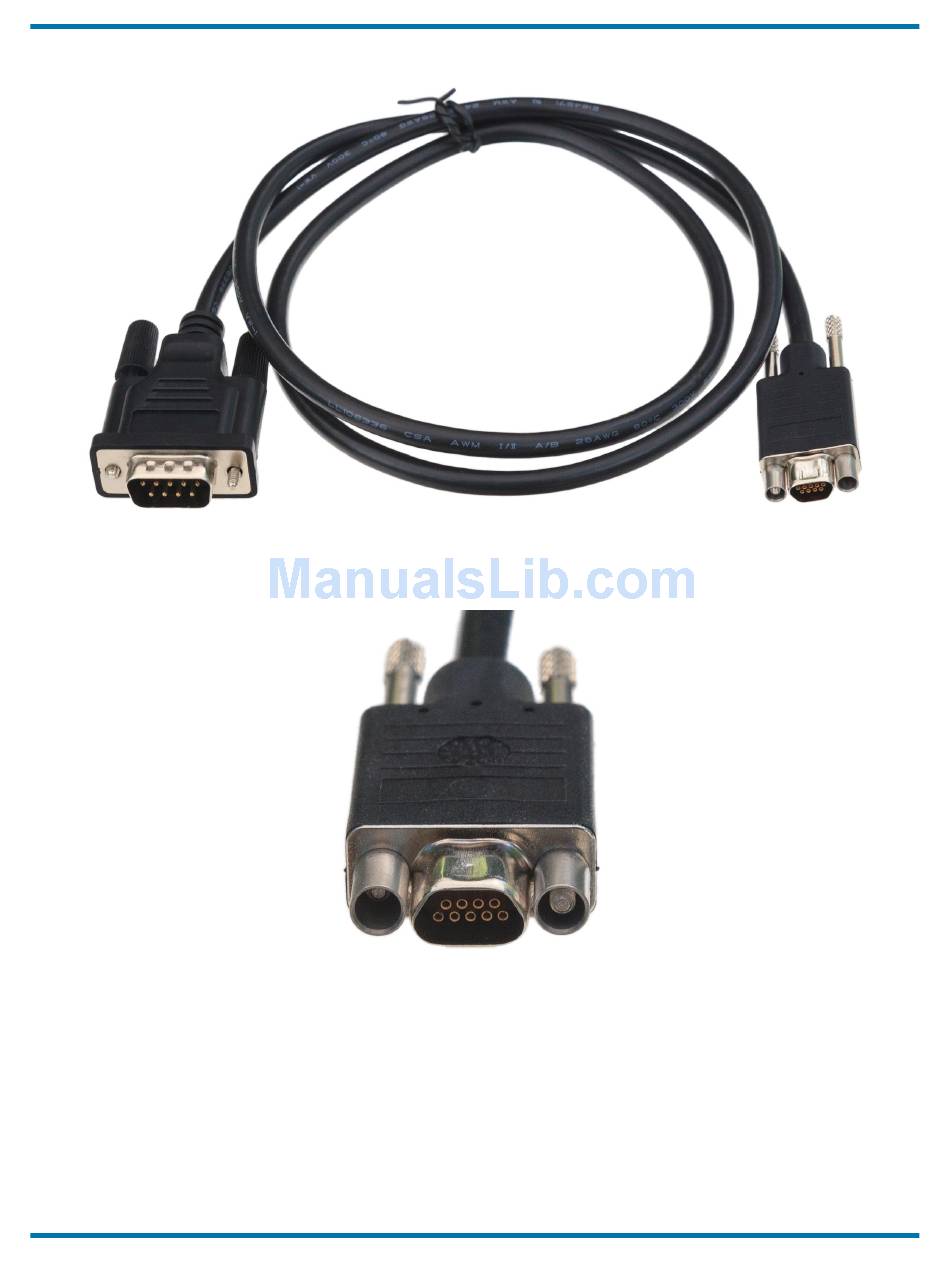

Figure 10: µDB-9 (Micro DB-9) to DB-9 Cable
Figure 11: Close-up of µDB-9 Connector. This connector attaches to the mating connector on the neoVI FIRE 2, adapting it
into an industry-standard DB-9 connector.
FIRE 2 Ethernet Cable Adapter
This special cable "breaks out" the HD-26 connector on the left side of the neoVI FIRE 2 to
three connectors that are used to communicate with vehicle networks. The cable is illustrated
in Figure 12, while the network interface connectors are described further below.
