neoVI FIRE 2 User's Guide
See Section 3.3 for hookup diagrams that show how to connect all of these cables to the FIRE
2 and your network or bench.

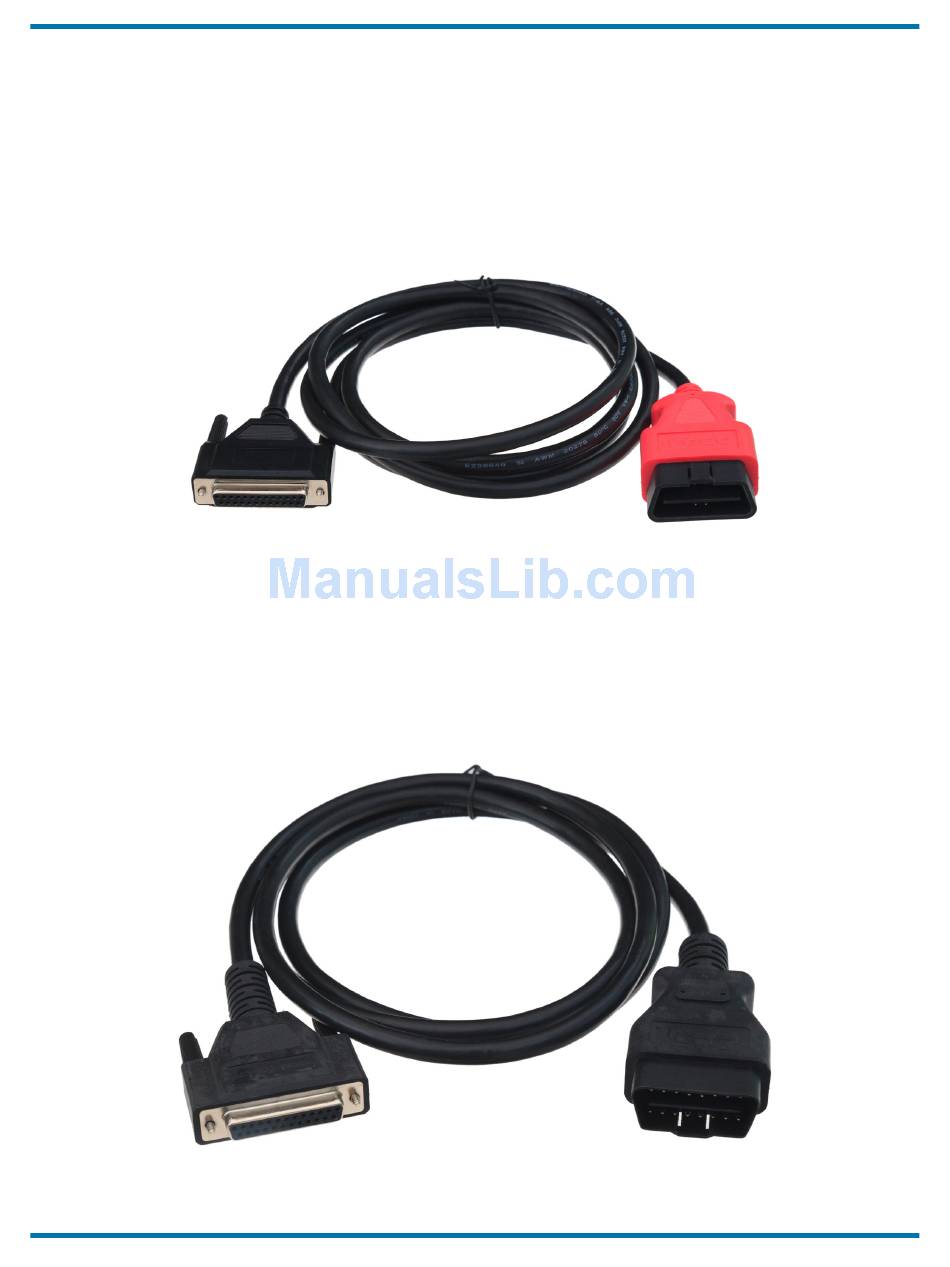

neoVI-OBD-1 Cable
This cable, which has a red OBD-II connector, is used primarily for General Motors vehicles. It
can be seen in Figure 16.
Figure 16: neoVI-OBD-1 Cable.
neoVI-OBD-MULTI Cable
This cable has a standard black OBD-II connector and is suitable for use with the vehicles of
most OEMs. It is pictured in Figure 17.
Figure 17: neoVI-OBD-MULTI Cable.
Version 2.1 - October 10, 2016
20
© 2016 Intrepid Control Systems, Inc.
