neoVI FIRE 2 User's Guide

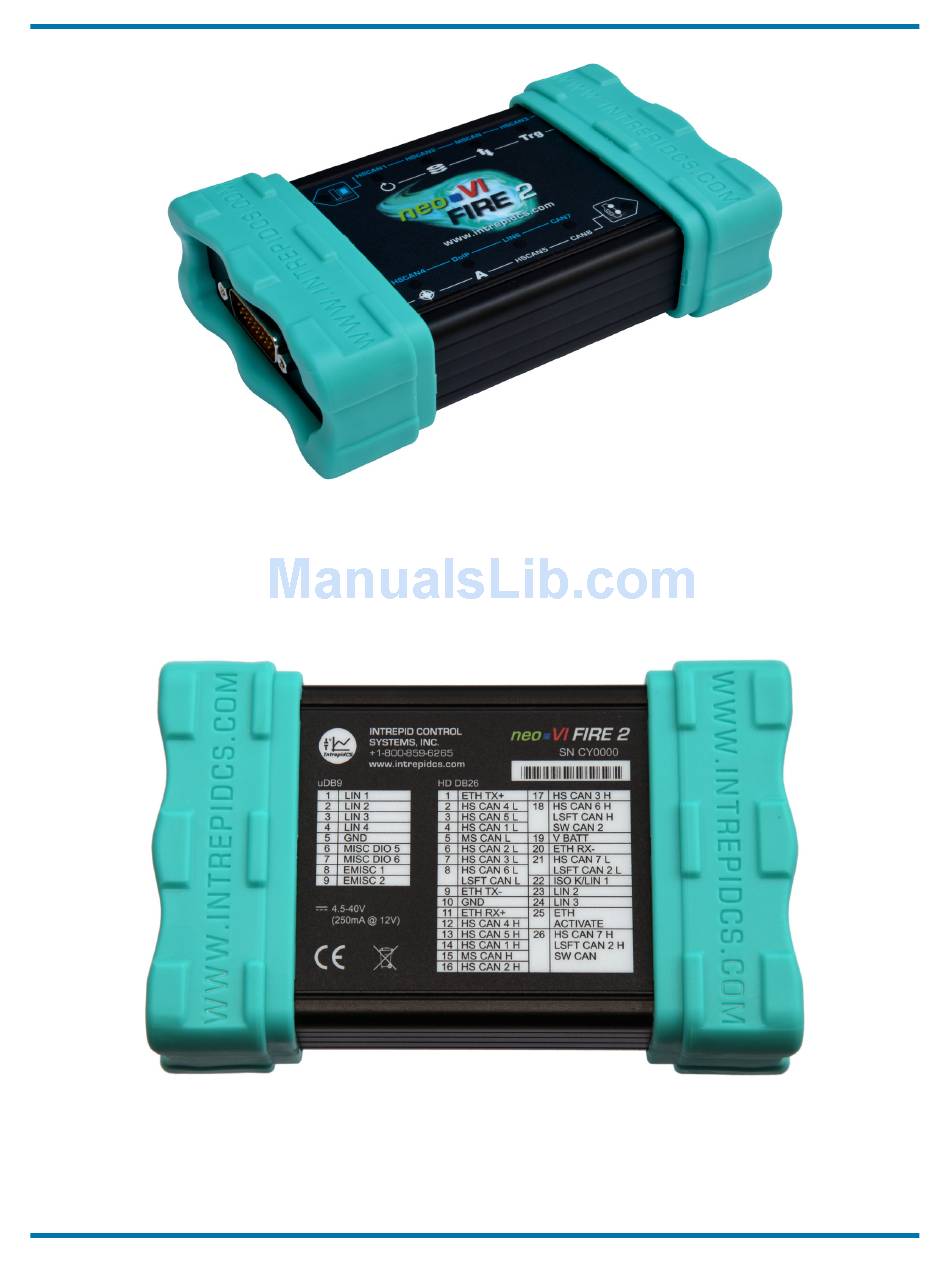

Figure 3: Overview of the neoVI FIRE 2.
The bottom of the neoVI FIRE 2 contains useful reference information, including the device
serial number, pinouts of its HD-26 and µDB-9 connectors, and Intrepid's contact information
(Figure 4). Pinouts for all FIRE 2 connectors and cables can be found in Chapter 7.
Figure 4: neoVI FIRE 2 Bottom View. Note that the FIRE 2's miscellaneous I/O channels are "EMISC 1" and "EMISC 2". (The
"MISC DIO 5" and "MISC DIO 6" entries will be removed in future FIRE 2 label printings.)
