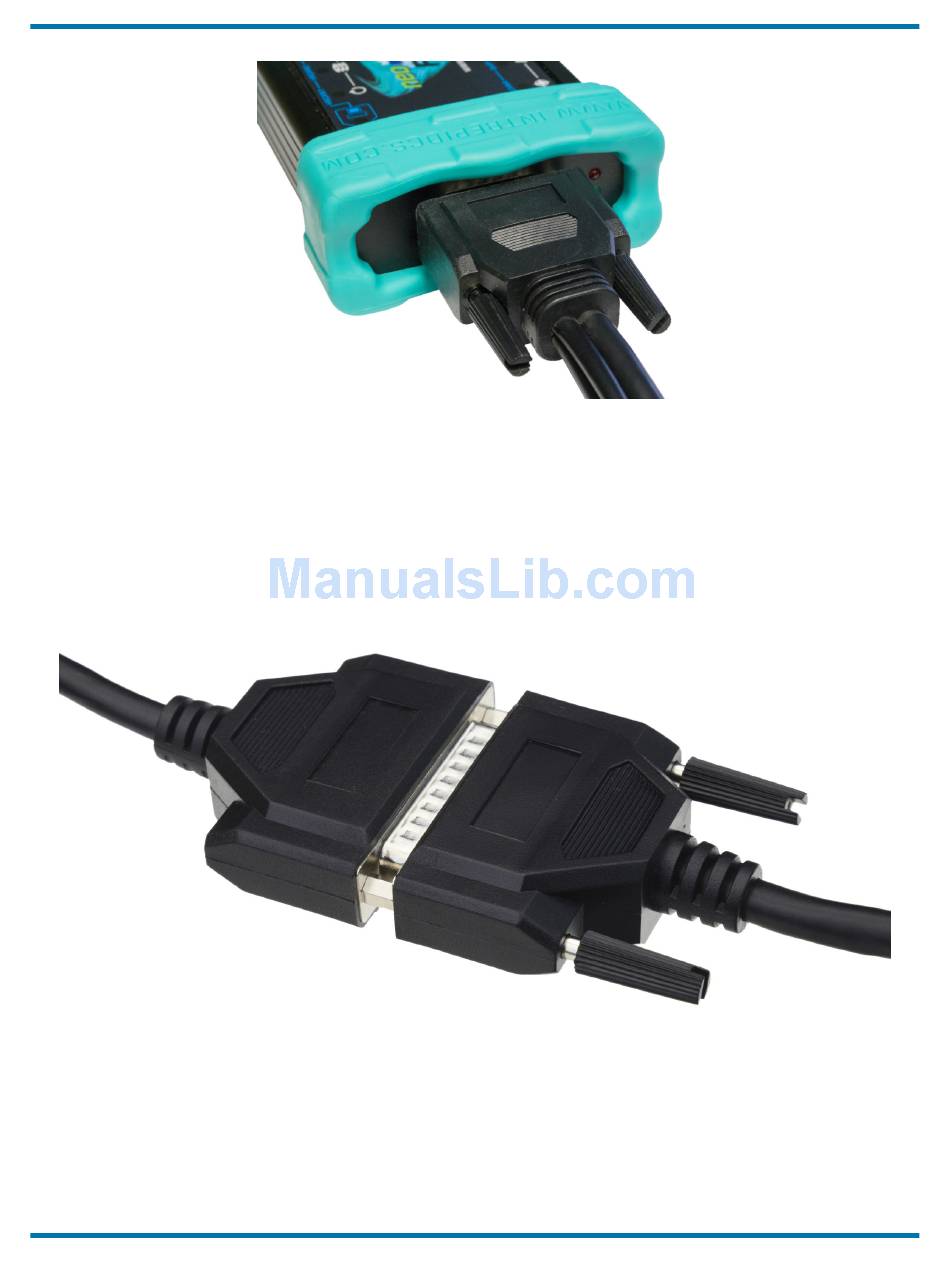

Figure 52: Connecting the HD-26 Cable Connector to the neoVI FIRE 2.
2.
Attach OBD Cable to DB-25 Connector on FIRE 2 Ethernet Cable Adapter (OBD
Use Only): Connect the female DB-25 connector of your neoVI-OBD-1, neoVI-OBD-
MULTI, neoVI-OBD-MULTI Right Angle or neoVI FIRE/RED J1939 cable to the male
DB-25 of the FIRE 2 Ethernet Cable Adapter (Figure 53).
Figure 53: Attaching the DB-25 Connector of an OBD Cable to the DB-25 on the FIRE 2 Ethernet Cable Adapter.
Version 2.1 - October 10, 2016
neoVI FIRE 2 User's Guide
40
© 2016 Intrepid Control Systems, Inc.
