First, make sure the neoVI FIRE 2 is connected to your vehicle network. Then follow these
steps to create and transmit a message:
1. Launch Vehicle Spy: Start Vehicle Spy by double-clicking its icon or selecting it from
the Windows Start Menu.
2. Select neoVI FIRE 2: On the Logon Screen, select the neoVI FIRE 2 if it is not already
selected: right-click the device name and choose Select Hardware (see Figure 79).
3. Load Messages Editor: Select Messages Editor from the Spy Networks menu.
4. Select Transmit Messages: Click the Transmit button, found in the blue bar.
5. Create Transmit Message: To the right of the drop-down box that currently says "HS
CAN", click the
Vehicle Spy will generate a new HS CAN transmit message called "Tx Message HS CAN 1",
preset with default values. The program window should now appear similar to Figure 81.

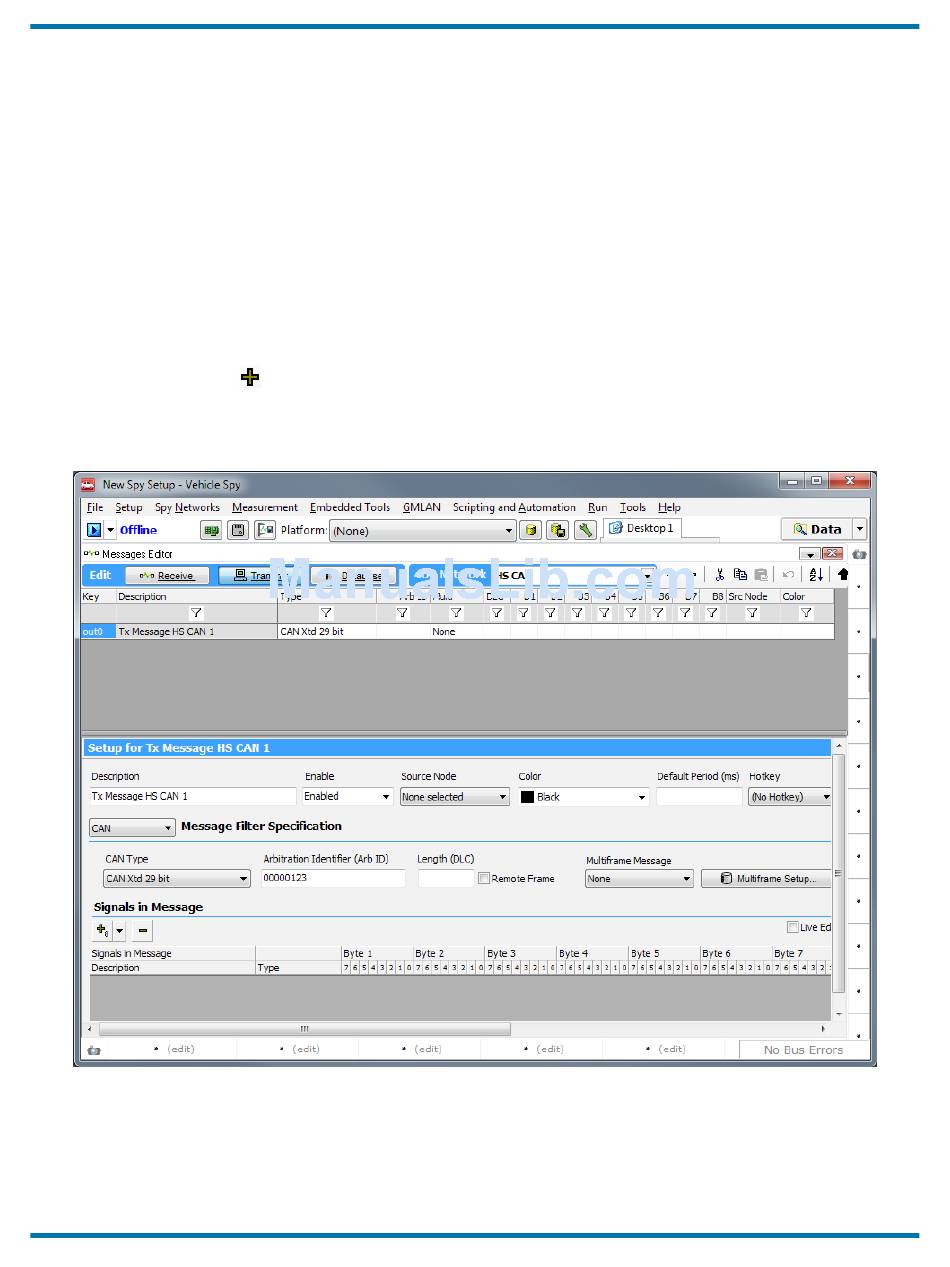

Figure 81: A Default Transmit Message Created in Vehicle Spy.
Next, we will change the default message by assigning an arbitration ID to it, and then adding
a signal and renaming it.
Version 2.1 - October 10, 2016
neoVI FIRE 2 User's Guide
button.
