neoVI FIRE 2 User's Guide
FIRE 2 OBD Cable with DoIP Support
This special cable attaches to the FIRE 2's HD-26 connector in place of the regular FIRE 2
Ethernet Cable Adapter. It contains DB-25, DB-9 and OBD-II connectors wired for DoIP use,
and is illustrated in Figure 20.

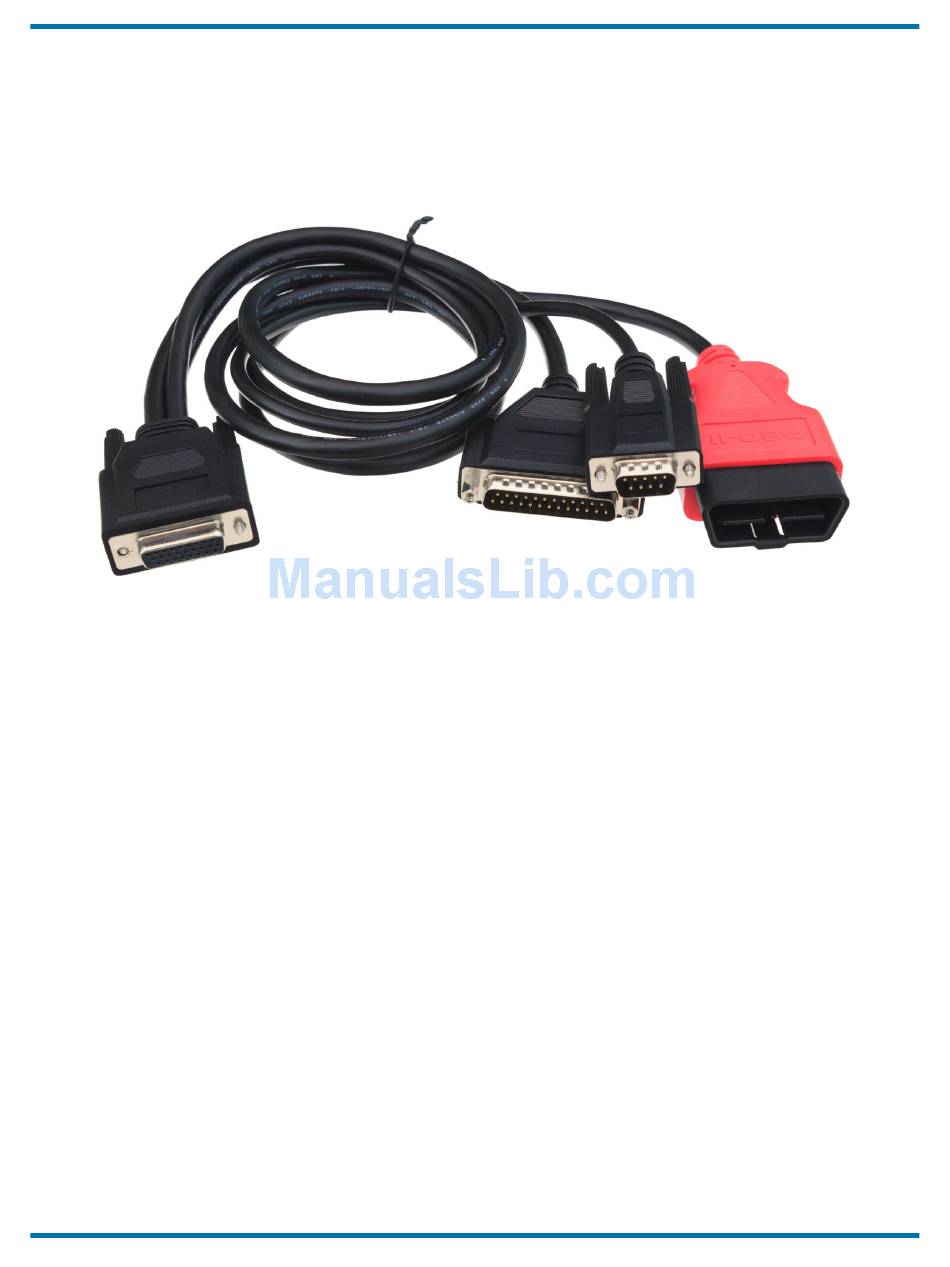

Figure 20: FIRE 2 OBD Cable with DoIP Support.
Version 2.1 - October 10, 2016
22
© 2016 Intrepid Control Systems, Inc.
