Hardware Interfaces
3.19

Power in

Terminal strip, 3 pin
1
2
3
Pin Signal
1 VCC12V
2 GND
3 VCC5V
3.20

External battery

Male connection strip, 4 pin, 2.54 mm
1
Pin Signal
1 GND
2 n.c.
3 n.c.
4 VBAT
Page 38 of 38
82443BX

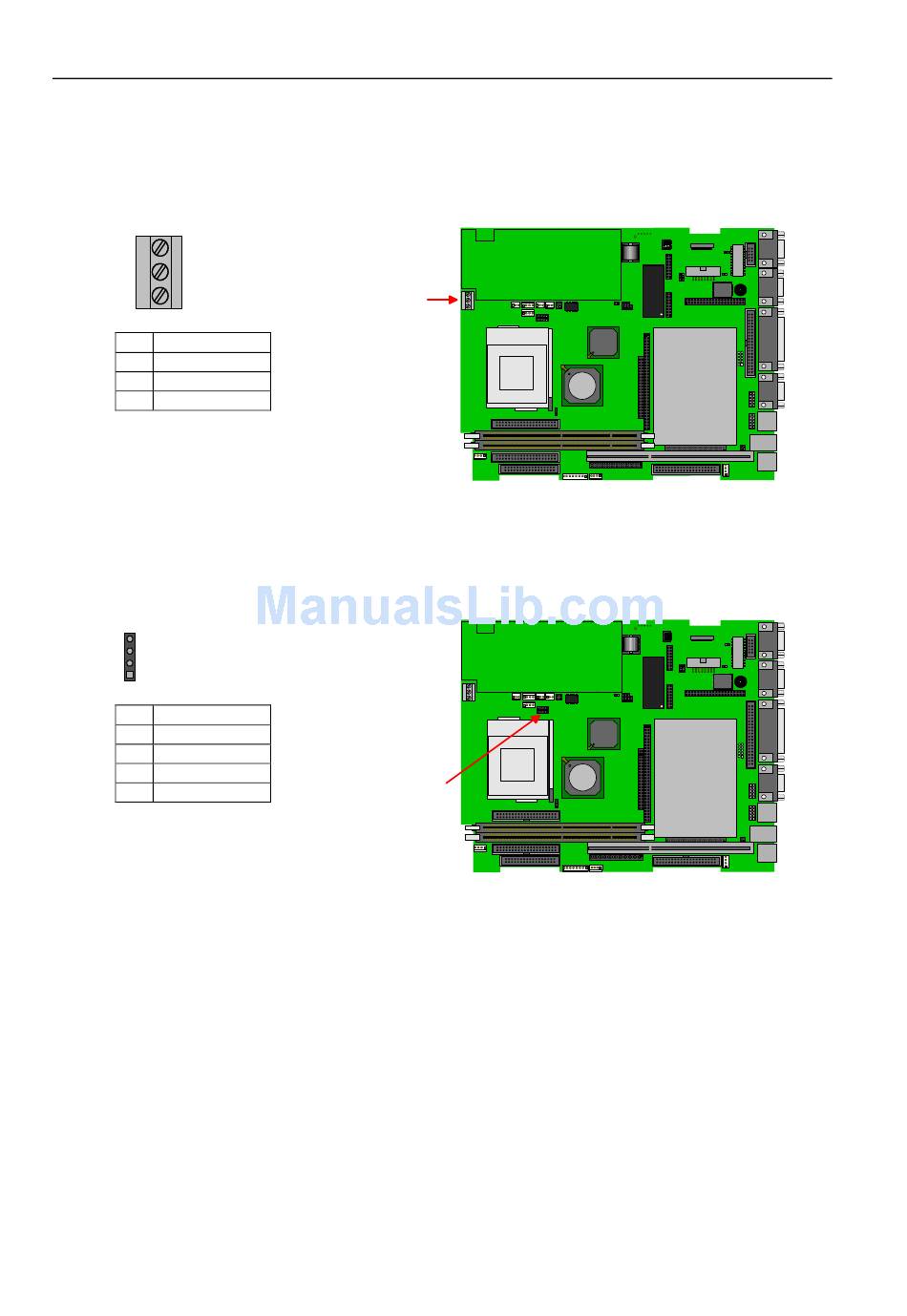

Fig. 3-19:
82443BX
Fig. 3-20: External battery
Rev. 1.00 dated 1.7.2004
OI: IPC370T
Power in
