Hardware Interfaces
3.3

COM-C / COM-D

Socket strip, 16 pin, 2.54 mm
16 15
14 13
12 11
10 9
8 7
6 5
4 3
2 1
Pin Signal
1 GND
3 GND
5 GND
7 DCD#
9 RxD
11 TxD
13 DTR#
15 GND
Page 26 of 38
Pin Signal
2 VCCN5V
4 VCCN12V
6 VCC12V
8 DSR#
10 RTS#
12 CTS#
14 RI#
16 VCC5V
82443BX

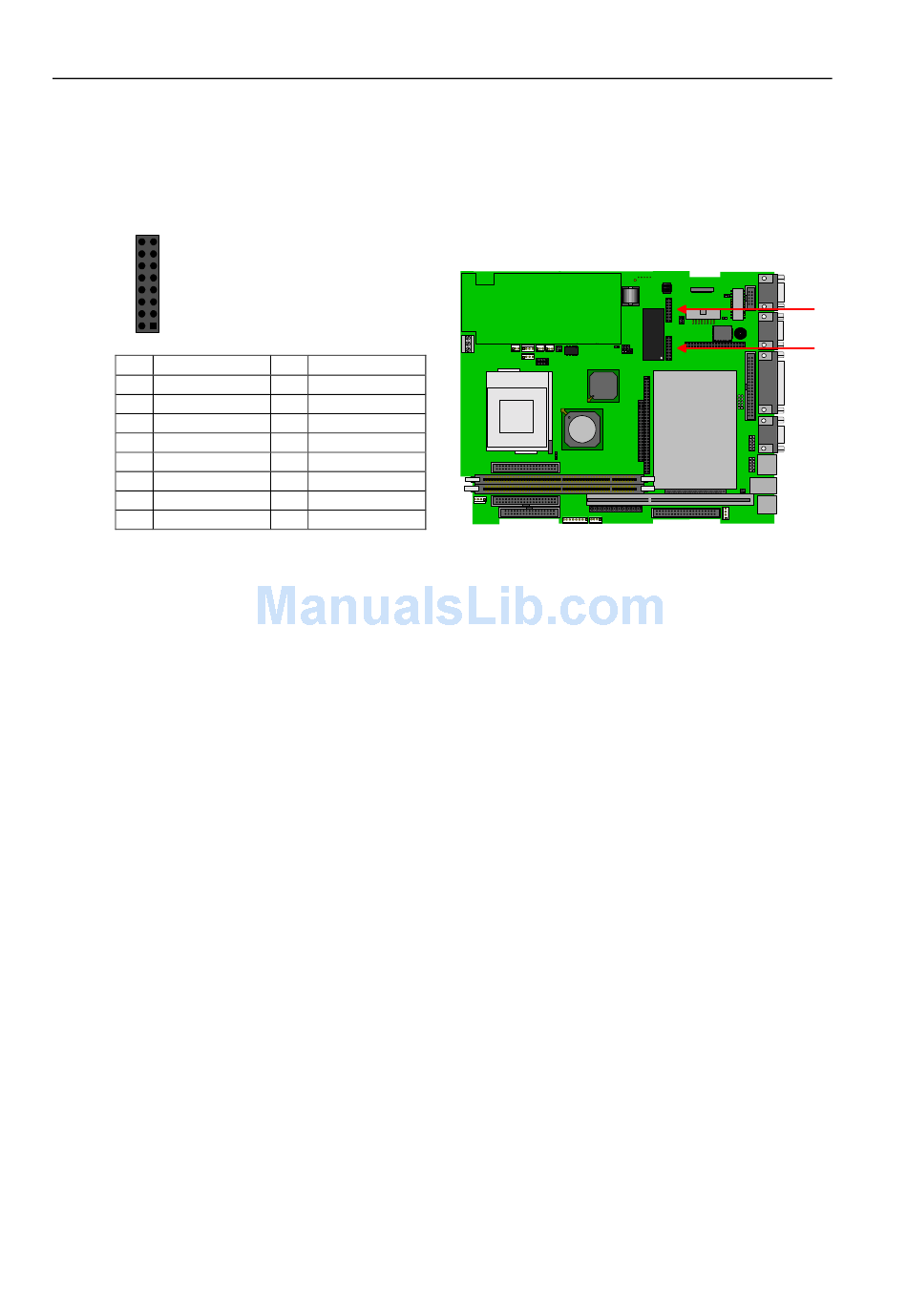

Fig. 3-3: COM-C / COM-D
Rev. 1.00 dated 1.7.2004
OI: IPC370T
COM-C
COM-D
