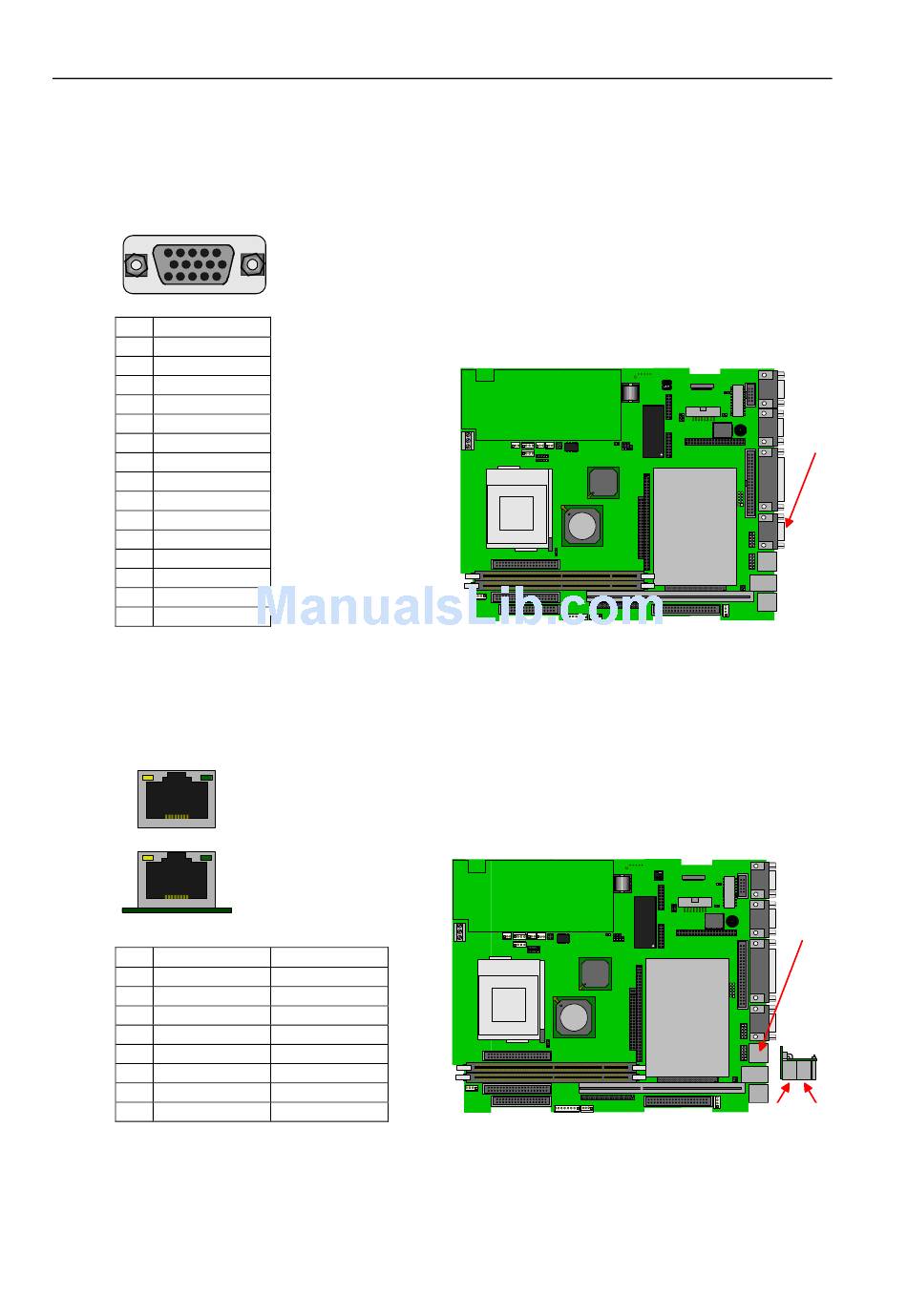

Crt - Monitor; Ethernet (Lan1/Lan2); Fig. 3-5: Crt - Monitor; Fig. 3-6: Ethernet (Lan1/Lan2) - MSC IPC370T Operating Instructions Manual

Hardware Interfaces
3.5 CRT – Monitor
HD-SUB socket, 15 pin
5 4 3 2 1
10
15 14 13 12 11
Pin Signal
1 RED
2 GREEN
3 BLUE
4 VCC5V Fused
5 GND
6 GND
7 GND
8 GND
9 VCC5V Fused
10 GND
11 RESERVED
12 DDC DAT
13 HSYNC
14 VSYNC
15 DDC CLK
3.6

Ethernet (LAN1/LAN2)

2 x RJ-45 with integrated LEDs, 8 pin (one on top of the other)
8 1
8 1
Pin LAN1
1 TX+
2 TX–
3 RX+
4 n.c.
5 n.c.
6 RX–
7 n.c.
8 n.c.
Page 28 of 38
6
LAN2
LAN1
LAN2
TX+
TX–
RX+
n.c.
n.c.
RX–
n.c.
n.c.
82443BX
Fig. 3-5:
82443BX
Fig. 3-6: Ethernet (LAN1/LAN2)
Rev. 1.00 dated 1.7.2004
OI: IPC370T
CRT – Monitor
Ethernet
LAN1 LAN2
