OI: IPC370T
3.7

Keyboard and mouse

2 x MiniDIN, 6 pin (two-in-one)
6 5
Mouse
4 3
2 1
6 5
Keyboard
4 3
2 1
• Keyboard
Pin Signal
1 KBDAT
2 MDAT
3 GND
4 VCC5V Fused
5 KBCLK
6 MCLK
• Mouse
Pin Signal
1 MDAT
2 n.c.
3 GND
4 VCC5V Fused
5 MCLK
6 n.c.
3.8

USB

USB Type A Connector (two-in-one), 2 x 4 pin
5 8
1 4
Pin Signal
1 VCC USB1
2 USB1–
3 USB1+
4 GND
Rev. 1.00 dated 1.7.2004
Pin Signal
5 VCC USB2
6 USB2–
7 USB2+
8 GND
Hardware Interfaces
82443BX

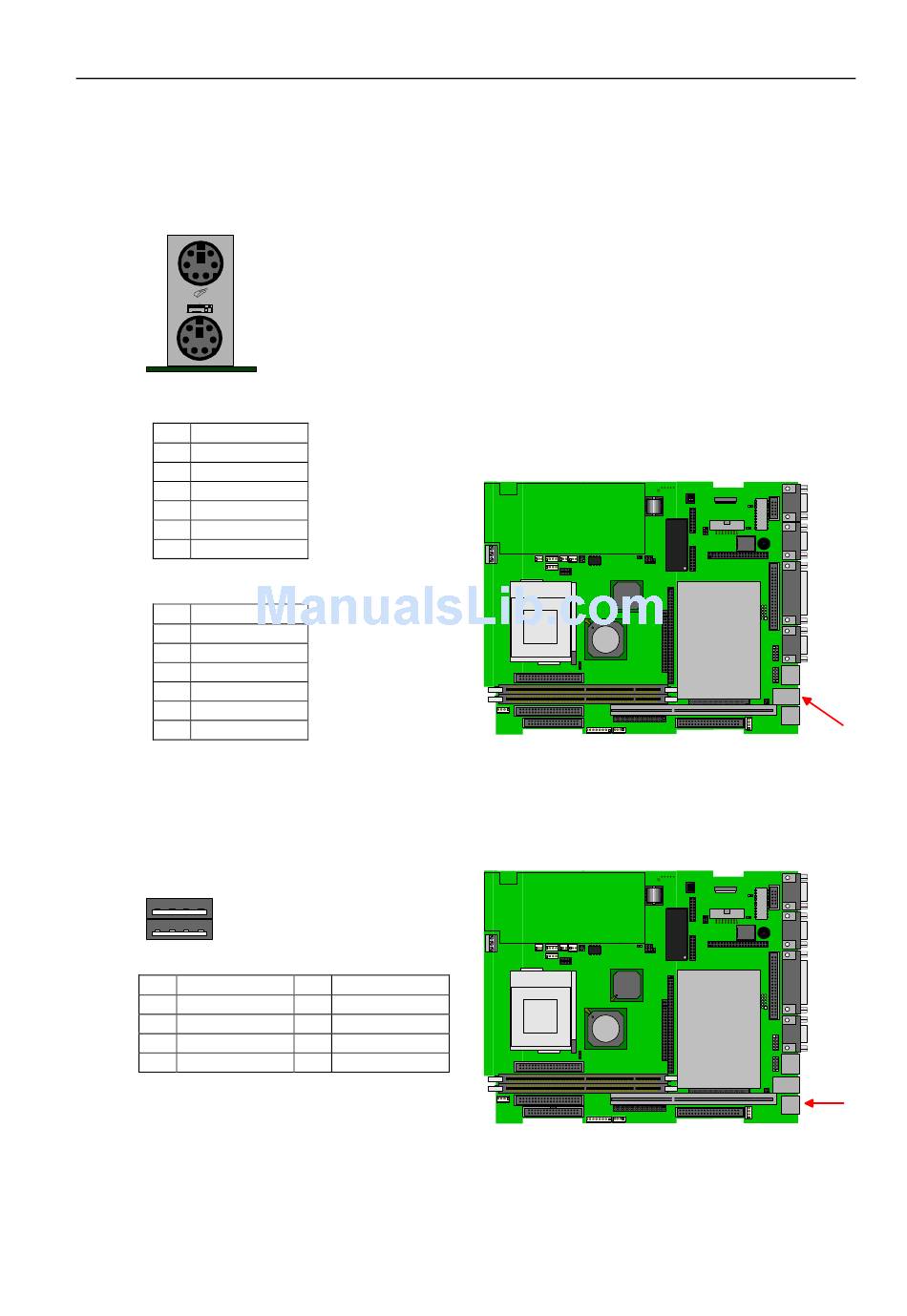

Fig. 3-7: Keyboard and mouse
82443BX
Fig. 3-8: USB
Page 29 of 38
