OI: IPC370T
3.17

Temperature alarm

Male connection strip, 4 pin, coded, 2.54 mm
1
Pin Signal
1 VCC5V
2 GND
3 Alarm
4 VCC12V
3.18

Power out

Male connection strip, 4 pin, coded, 2.54 mm – 4x
1
Pin Signal
1 VCC5V
2 GND
3 GND
4 VCC12V
Rev. 1.00 dated 1.7.2004
Hardware Interfaces
82443BX

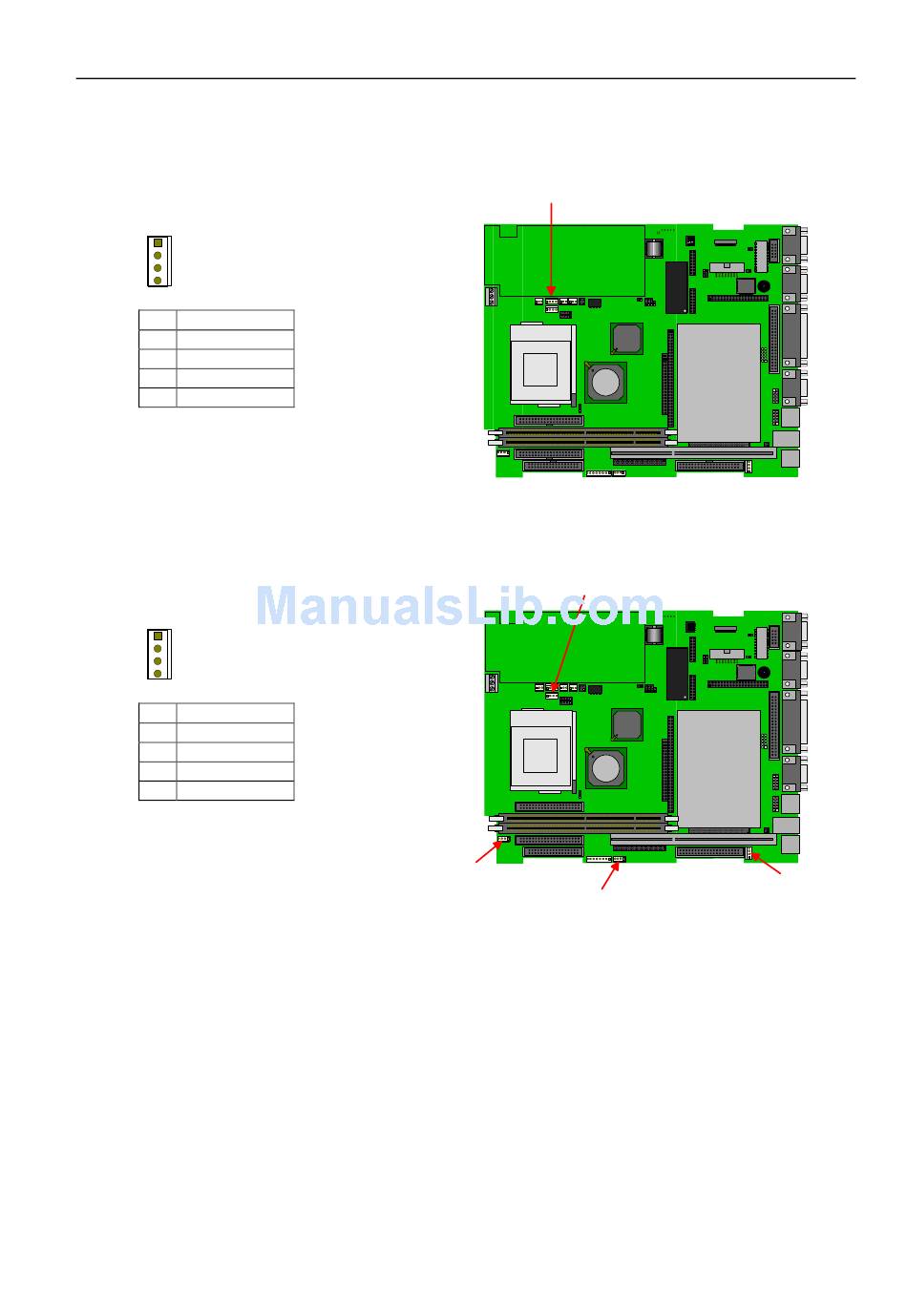

Fig. 3-17: Temperature alarm
82443BX
Fig. 3-18: Power out
Page 37 of 38
