Hardware Interfaces
3.11

Secondary IDE

Male connection strip, 40 pin, with shroud, 2.54 mm
39
40
Pin Signal
1 /IDE-RESET
3 DATA7
5 DATA6
7 DATA5
9 DATA4
11 DATA3
13 DATA2
15 DATA1
17 DATA0
19 GND
21 DRQ0
23 /IDEIOW
25 /IDEIOR
27 IORDY
29 /DAK0
31 INTRQ
33 IDEADR1
35 IDEADR0
37 /IDECS0
39 /IDEACTIV
Page 32 of 38
1
2
Pin Signal
2 GND
4 DATA8
6 DATA9
8 DATA10
10 DATA11
12 DATA12
14 DATA13
16 DATA14
18 DATA15
20 n.c.
22 GND
24 GND
26 GND
28 +5V pull up
30 GND
32 n.c.
34 n.c.
36 IDEADR2
38 /IDECS1
40 GND
82443BX

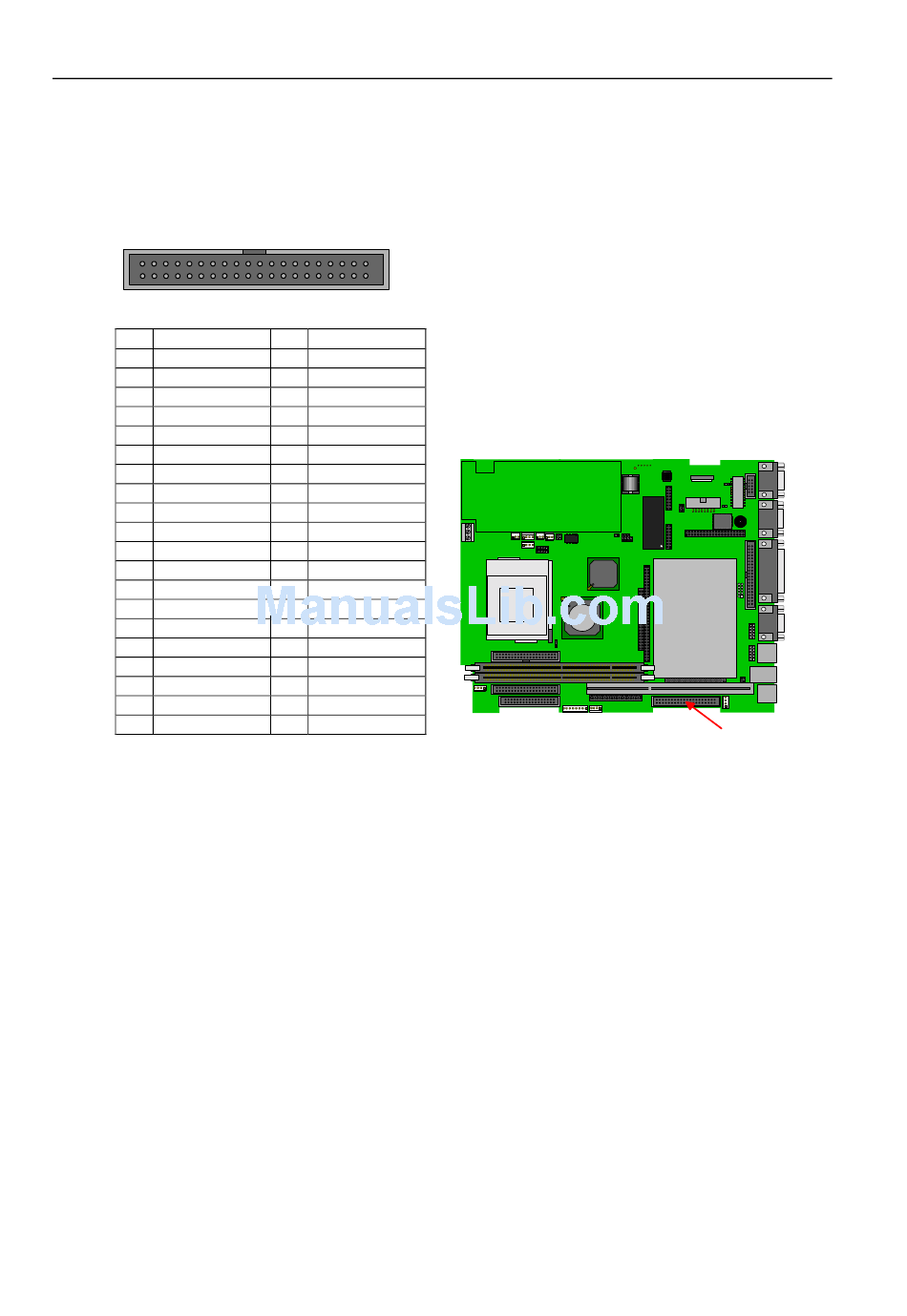

Fig. 3-11: Secondary IDE
Rev. 1.00 dated 1.7.2004
OI: IPC370T
