Memory extension and FSB switching

The main memory consists of two lockable DIMM sockets. It can be used standard 3.3V SDRAM
modules, which correspond to the Intel specification PC100 or PC133.
Note for plug-in: first socket DIMM1, then socket DIMM2.
Per socket a maximum of 512 Mbytes SDRAM are possible.
Since the chipset supports 256-Mbit DRAMs at the most, a 512-MB module must consist of two
banks each based on 256 Mbit.
During plug-in of the modules please pay attention to corresponding coding as well as correct
locking (see picture above).
Front Side Bus (FSB) - Switching
Rev. 1.00 dated 1.7.2004
82443BX
DIMM 2
DIMM 1
FSB 100 MHz
FSB 133 MHz
Installation and Configuration

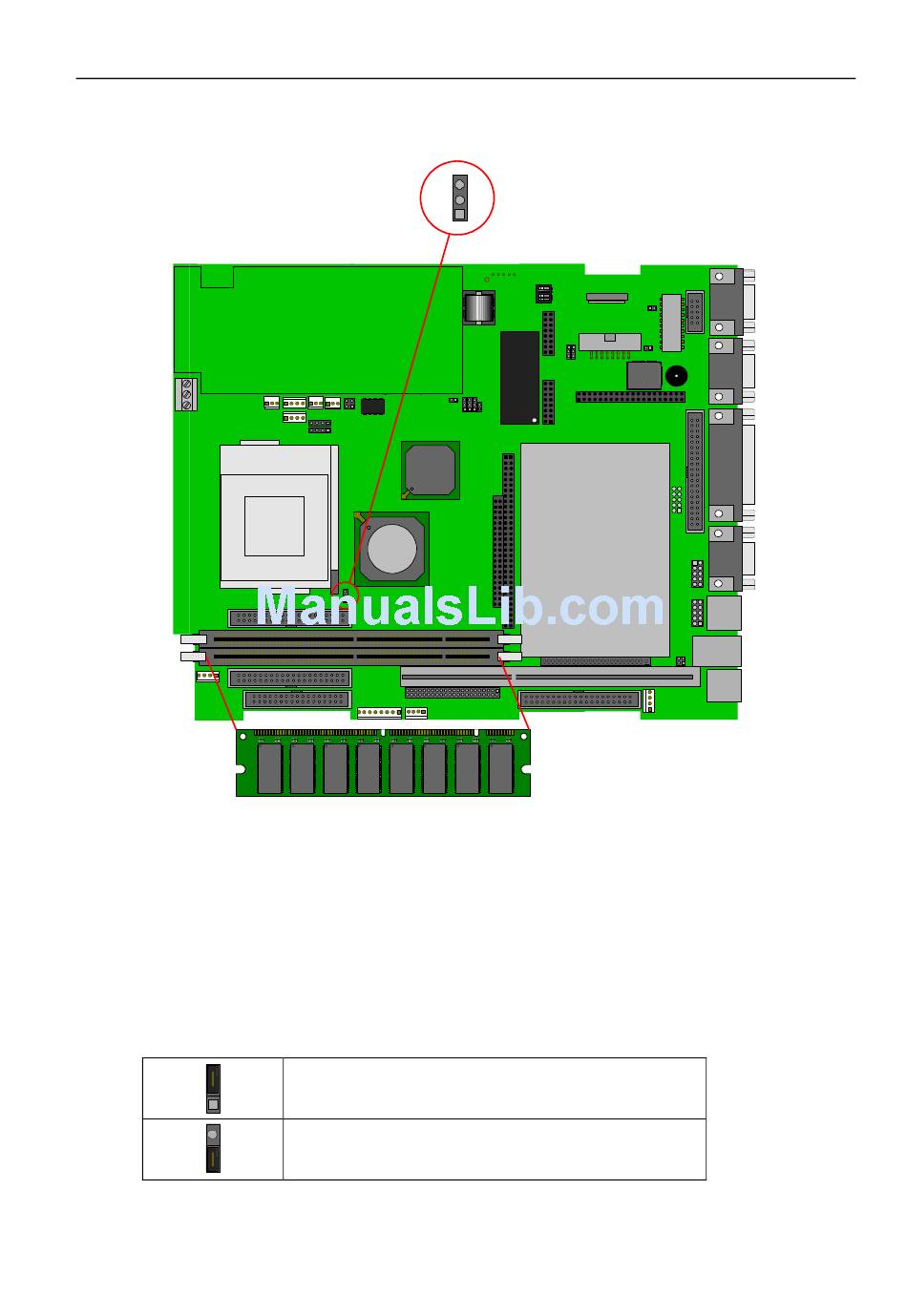

Fig. 2-5: Memory extension and FSB switching
