Onboard Ide Disk Configuration; Fig. 2-3: Onboard Ide Disk Configuration - MSC IPC370T Operating Instructions Manual

OI: IPC370T
2.1.3

Onboard IDE disk configuration

With the aid of the isolated jumper (2 pin) an ATA100 cable can be simulated to the
Primary IDE Interface.
The jumper field (4 pin) is used to configure the hard disk which can be attached on the board
directly (Primary IDE interface). The corresponding assignment of the individual contacts is
illustrated on the following picture.
Rev. 1.00 dated 1.7.2004
82443BX
No ATA100 cable
ATA100 cable
43
44
Installation and Configuration

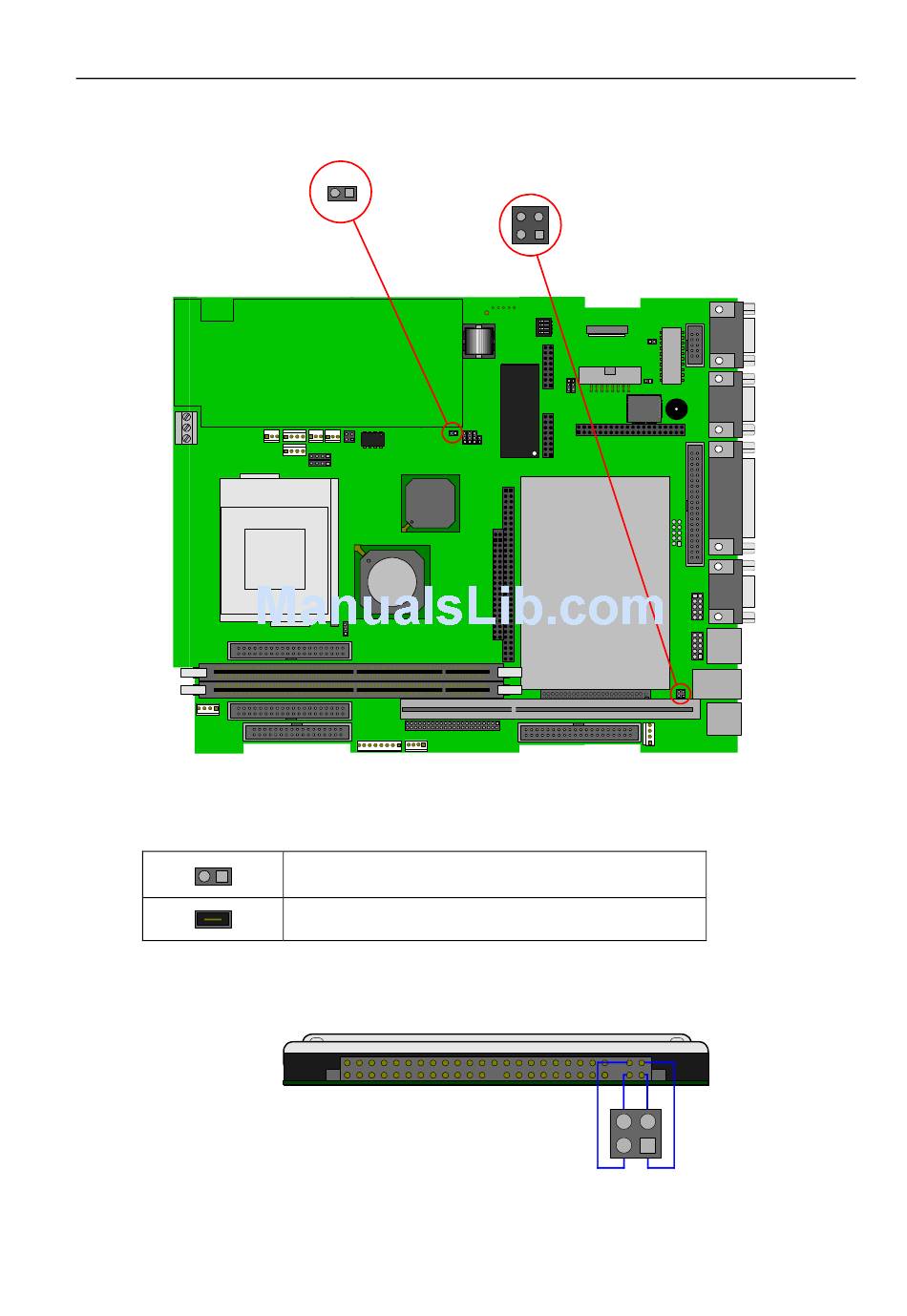

Fig. 2-3: Onboard IDE disk configuration
1
2
4 2
1
3
Page 11 of 38
