OI: IPC370T
3.12

Floppy (internal)

Male connection strip, 34 pin, with shroud, 2.54 mm
33
34
Pin
Signal
1
GND
3
GND
5
GND
7
GND
9
GND
11
GND
13
GND
15
GND
17
GND
19
GND
21
GND
23
GND
25
GND
27
GND
29
GND
31
GND
33
GND
Rev. 1.00 dated 1.7.2004
1
2
Pin
Signal
2
DENSEL#
4
n.c.
6
DRATE0
8
/INDEX#
10
MOTOR1#
12
DRVSEL2#
14
DRVSEL1#
16
MOTOR2#
18
DIR
20
STEP#
22
WRDATA#
24
WR GATE#
26
TRACK 0#
28
WRPROTECT#
30
RDDATA#
32
HEADSEL
34
DISKCHANGE#
Hardware Interfaces
82443BX

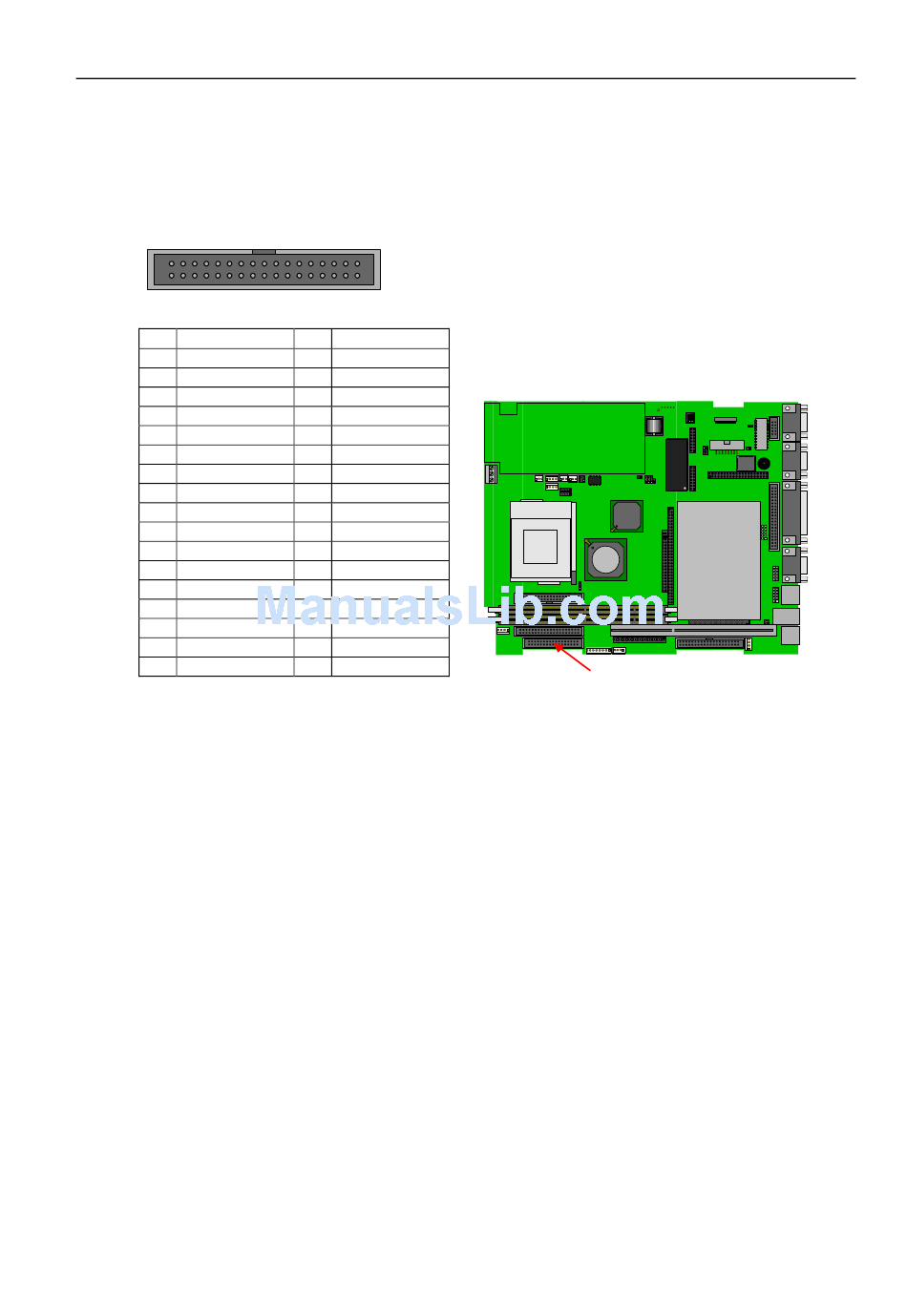

Fig. 3-12:
Floppy (internal)
Page 33 of 38
