Fieldbus; Fans; Fig. 3-15: Fieldbus; Fig. 3-16: Fans - MSC IPC370T Operating Instructions Manual

Hardware Interfaces
3.15

Fieldbus

Socket strip, 40 pin, 2.54 mm
1
Pin Signal
1 GND
3 n.c.
5 SMEMR#
7 FB_CS#
9 SA1
11 SD7
13 SD6
15 SD5
17 SD4
19 SD3
21 SD2
23 SD1
25 SD0
27 SA11
29 GND
31 SA13
33 n.c.
35 FB_INT#
37 n.c.
39 n.c.
3.16

Fans

Male connection strip, 3 pin, coded, 2.54 mm – 3x
1
Pin Signal
1 GND
2 VCC12V
3 Tacho
Page 36 of 38
Pin Signal
2 VCC5V
4 SMEMW#
6 n.c.
8 SA2
10 SA0
12 SA3
14 SA4
16 SA5
18 SA6
20 SA7
22 SA8
24 SA9
26 SA10
28 SA212
30 VCC5V
32 RSTDRV
34 n.c.
36 n.c.
38 FB_BUSY
40 n.c.
82443BX

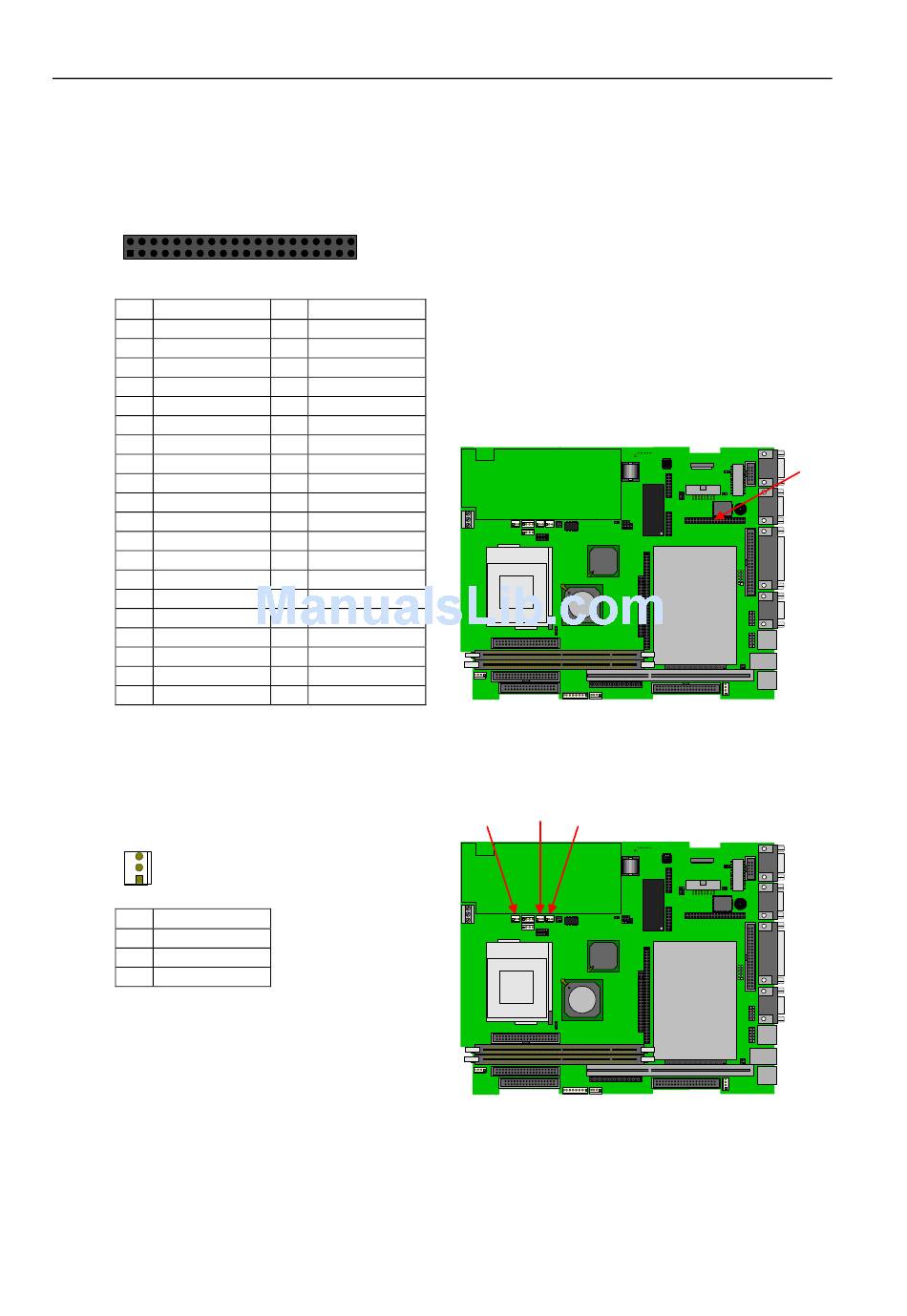

Fig. 3-15:
82443BX
Fig. 3-16:
Rev. 1.00 dated 1.7.2004
OI: IPC370T
Fieldbus
Fans
