Battery; Fig. 2-6: Battery - MSC IPC370T Operating Instructions Manual

Installation and Configuration
2.3

Battery

The installed lithium battery provides Real Time Clock and CMOS memory with a current,
in order to permanently save system information, even if the board is separated from the supply.
Lithium Battery, Type CR1/3N
Nominal capacity
Nominal voltage
Discharge current (standard)
Discharge current (max.)
Temperature
Weight
Dimensions
Page 14 of 38
–
+
82443BX
160mAh
3V
2mA
continuous 60mA
pulse 80mA
-40°C to +60°C
3.3g
D 11.6mm
H 10.8mm
d 9.1mm
OI: IPC370T

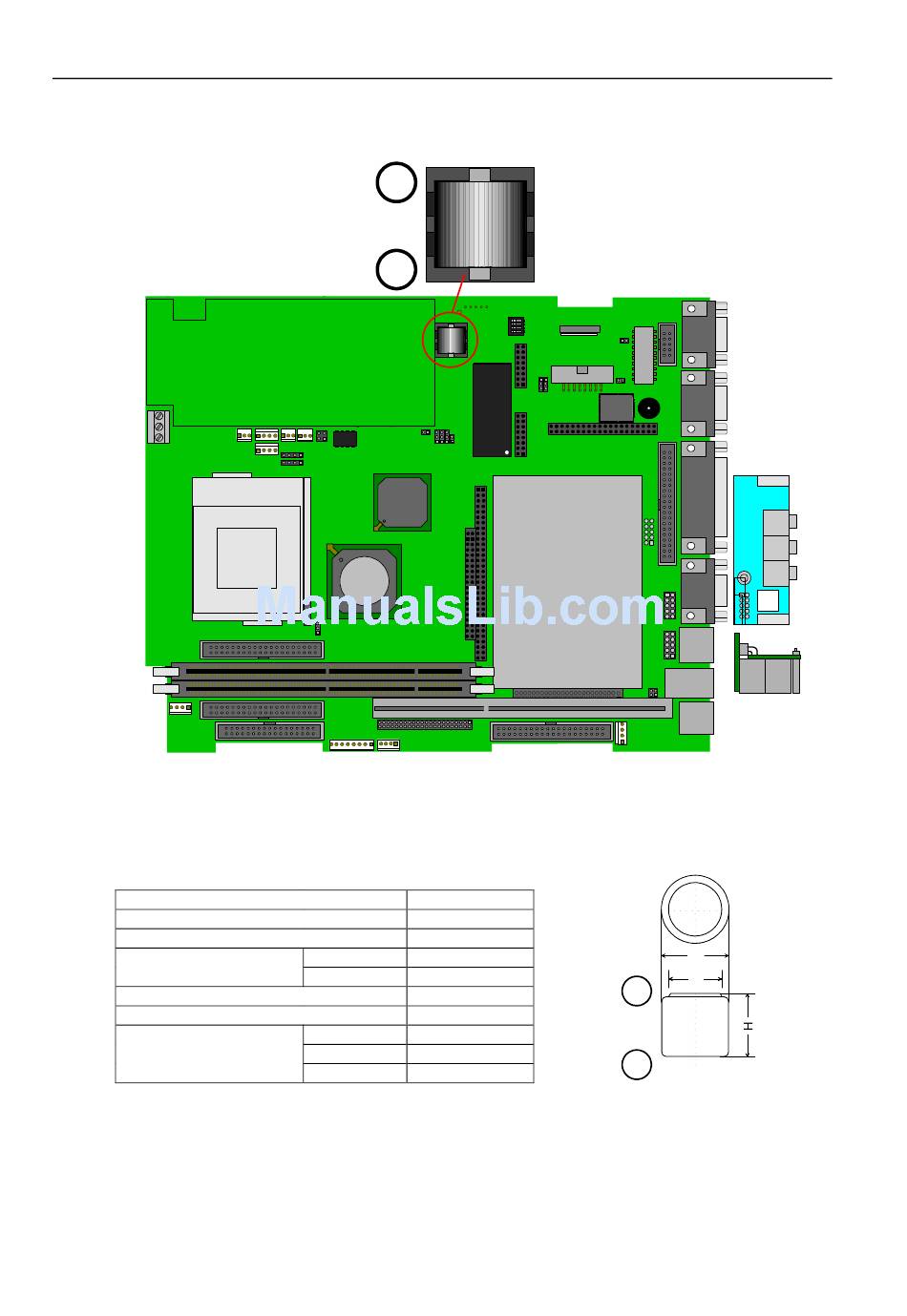

Fig. 2-6: Battery
D
d
–
+
Rev. 1.00 dated 1.7.2004
