Hardware Interfaces
3.13

Floppy (external)

Male connection strip, 40 pin, with shroud, 2.54 mm
39
40
Pin Signal
1 VCC5V Fused
3 VCC5V Fused
5 DENSEL#
7 n.c.
9 n.c.
11 /INDEX#
13 MOTOR1#
15 DRVSEL2#
17 DRVSEL1#
19 MOTOR2#
21 DIR
23 STEP#
25 WRDATA#
27 WR GATE#
29 TRACK 0#
31 WRPROTECT#
33 RDDATA#
35 HEADSEL
37 DISKCHANGE#
39 n.c.
Page 34 of 38
1
2
Pin Signal
2 GND
4 GND
6 GND
8 GND
10 GND
12 GND
14 GND
16 GND
18 GND
20 GND
22 GND
24 GND
26 GND
28 GND
30 GND
32 GND
34 GND
36 GND
38 GND
40 GND
82443BX

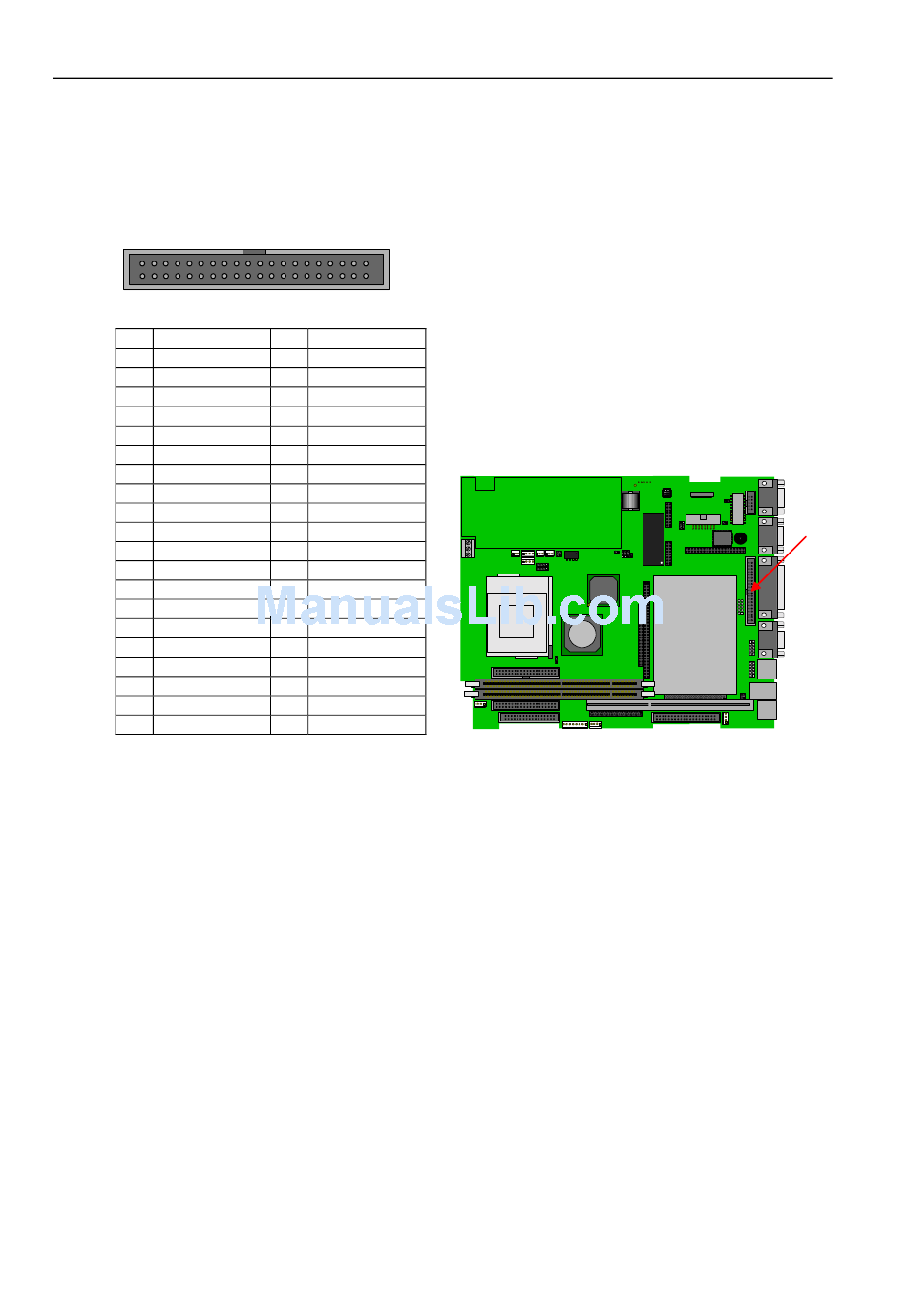

Fig. 3-13: Floppy (external)
Rev. 1.00 dated 1.7.2004
OI: IPC370T
