Hardware Interfaces
3.9 Primary IDE (internal) – Onboard
Socket strip, 50 pin, 2 mm, 90° (Hard disk can be directly mounted)
49
50
Pin Signal
1 Konf1
3 Konf3
5 n.c.
7 /IDE-RESET
9 DATA7
11 DATA6
13 DATA5
15 DATA4
17 DATA3
19 DATA2
21 DATA1
23 DATA0
25 GND
27 DRQ0
29 /IDEIOW
31 /IDEIOR
33 IORDY
35 /DAK0
37 INTRQ
39 IDEADR1
41 IDEADR0
43 /IDECS0
45 /IDEACTIV
47 +5 V
49 GND
Page 30 of 38
1
2
Pin Signal
2 Konf2
4 Konf4
6 n.c.
8 GND
10 DATA8
12 DATA9
14 DATA10
16 DATA11
18 DATA12
20 DATA13
22 DATA14
24 DATA15
26 n.c.
28 GND
30 GND
32 GND
34 +5V pull up
36 GND
38 n.c.
40 n.c.
42 IDEADR2
44 /IDECS1
46 GND
48 +5 V
50 reserved
82443BX

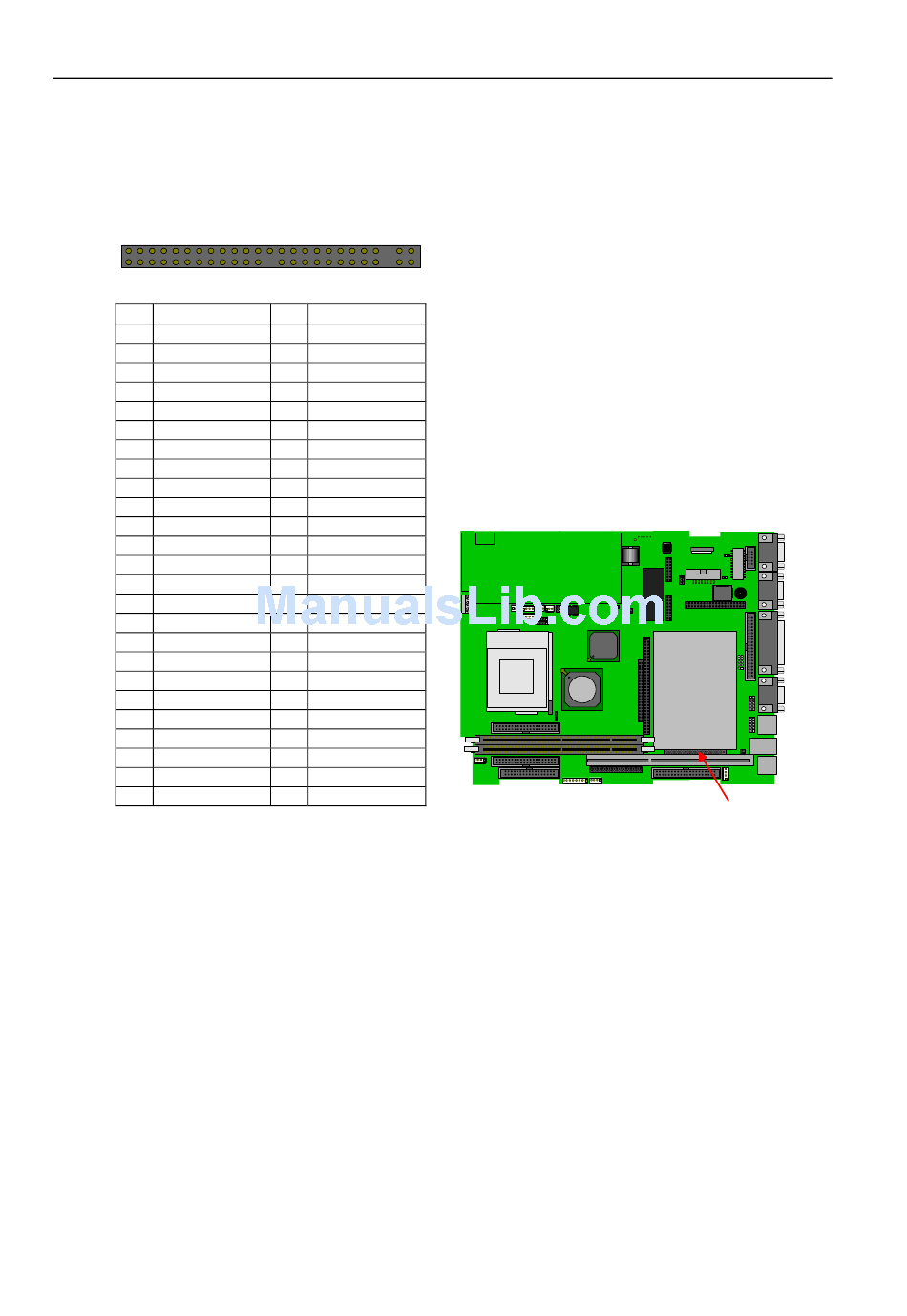

Fig. 3-9: Primary IDE (internal) – Onboard
Rev. 1.00 dated 1.7.2004
