OI: IPC370T
3

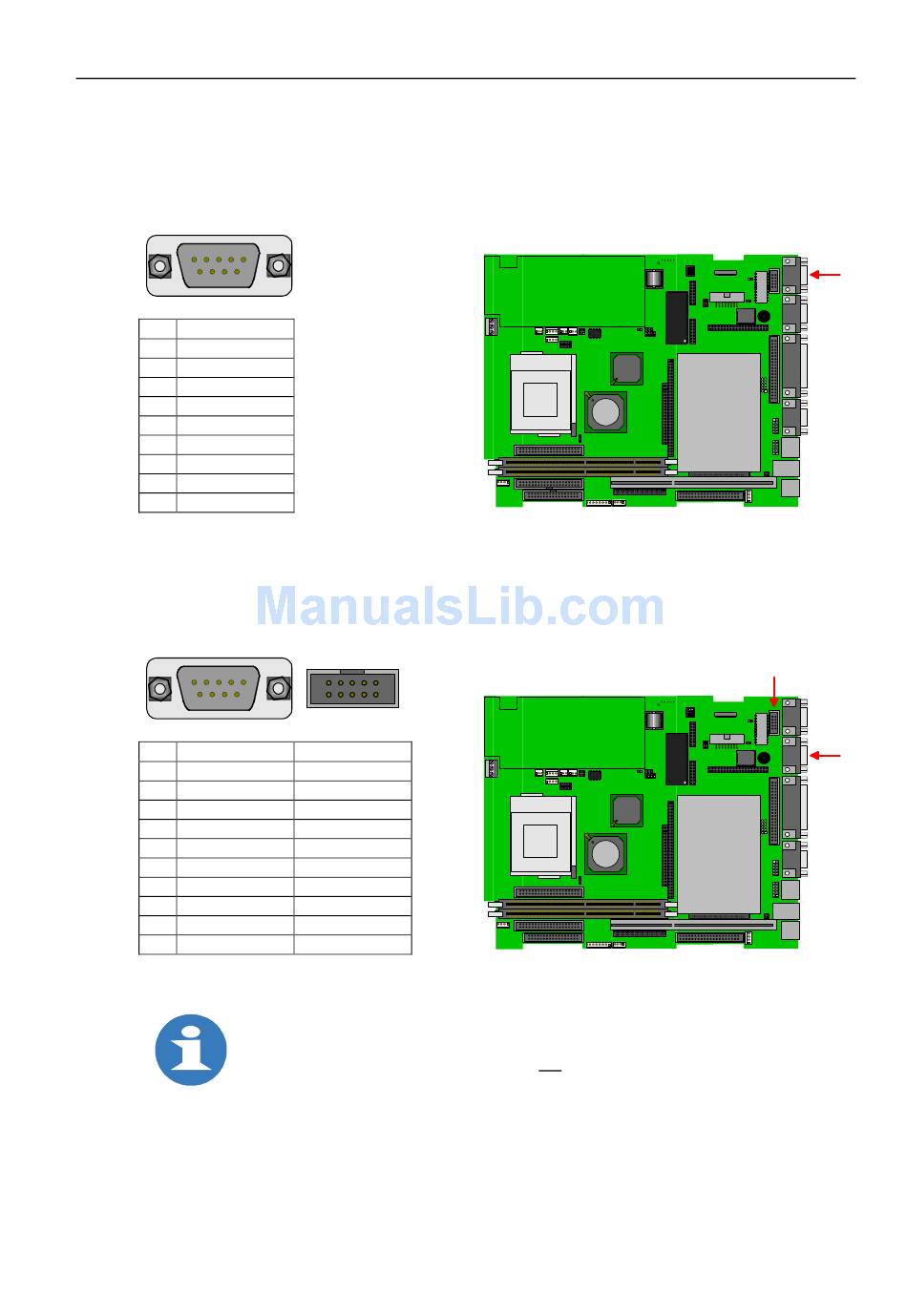

Hardware Interfaces

3.1

COM-A

D-SUB connector, 9 pin
1 2 3 4 5
6 7 8 9
Pin Signal
1 DCD
2 RxD#
3 TxD#
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
3.2

COM-B

D-SUB connector, 9 pin or male connection strip, 10 pin, with shroud, 2.54 mm
1 2 3 4 5
6 7 8 9
Pin RS-232 (9 pin)
1 DCD
2 RxD#
3 TxD#
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
10 --
Note:
Use this interface connection, if touch is not resistive-analogue.
Rev. 1.00 dated 1.7.2004
9 1
10 2
TTL (10 pin)
DCD
DSR
RxD#
RTS
TxD#
CTS
DTR
RI
GND
+5V
Hardware Interfaces
82443BX
Fig. 3-1:
82443BX
Fig. 3-2:
COM-A
COM-B
Page 25 of 38
