Viewing stored reading attachments

You can view the attachments, A-scan, B-scan, or Mi-
crogrid stored for a reading at any time on the display
screen. For this purpose, you have to first choose the
reading for which an attachment has been stored.
– Select a reading which has an A-scan stored for it
(see Section Selecting individual measuring
points, page 6-16).
– In the function group DR, select the function PROP-
ERTIES.
– Press one of the left or right arrow keys. The file
properties are displayed.

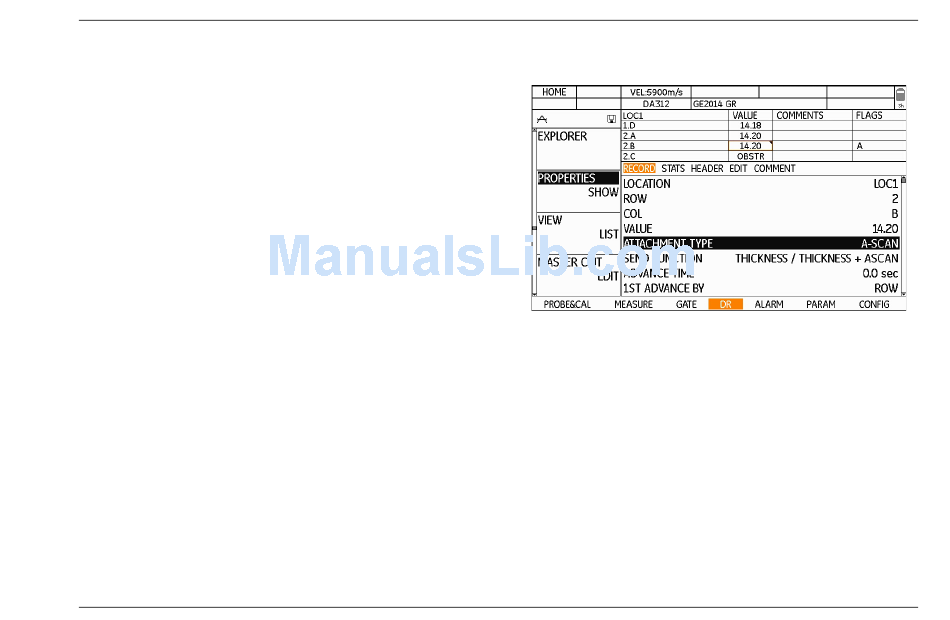

DMS Go+
– Press either the up or down arrow key in order to se-
lect the parameter ATTACHMENT TYPE.
– Press the center key of the keypad. The attachment
is displayed.
A-scans and B-scans are displayed in a new window on
the display screen, Microgrids are displayed at the top
of the display screen.
