Commissioning

5.3.5 Graphic Local Control Panel (GLCP)

The GLCP is divided into 4 functional groups (see
Illustration 5.8).
A. Display area.
B. Display menu keys.
C. Navigation keys and indicator lights (LEDs).
D. Operation keys and reset.
1
Status
799 RPM 7.83 A
0.000
2
A
53.2 %
4
Auto Remote Ramping
6
Quick
Status
B
Menu
7
10 C
On OK
15
Warn.
16
Alarm
17
Hand
D
O
On
18 19

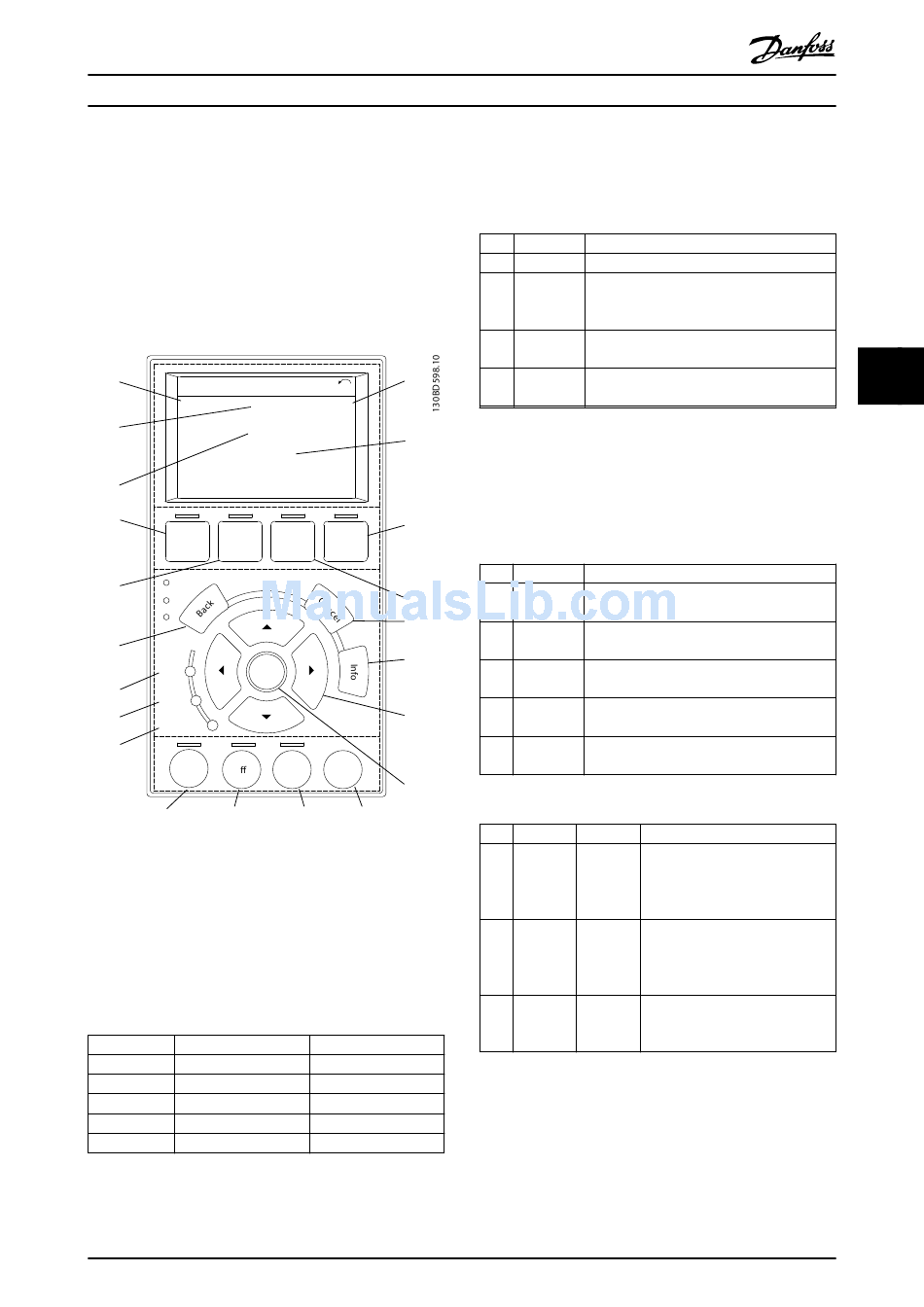

Illustration 5.8 Graphic Local Control Panel (GLCP)
A. Display area
The display area is activated when the frequency converter
receives power from the mains voltage, a DC bus terminal,
or a 24 V DC external supply.
The information shown on the LCP can be customized for
user applications. Select options in the Quick Menu Q3-13
Display Settings.
Display Parameter number
1 0-20
2 0-21
3 0-22
4 0-23
5 0-24
Table 5.8 Legend to Illustration 5.8, Display Area
MG07A402
Operating Guide
3
1(1)
36.4 kW
5
9
Main Alarm
Menu Log
8
11
12
13
Auto
Reset
On
14
20 21
Default setting
[1602] Reference [%]
[1614] Motor Current
[1610] Power [kW]
[1613] Frequency
[1502] kWh Counter
Danfoss A/S © 10/2017 All rights reserved.
B. Display menu keys
Menu keys are used for menu access for parameter set-up,
toggling through status display modes during normal
operation, and viewing fault log data.
Key
6 Status Shows operational information.
Allows access to programming parameters
Quick
7 for initial set-up instructions and many
Menu
detailed application instructions.
Allows access to all programming
8 Main Menu
parameters.
Shows a list of current warnings, the last 10
9 Alarm Log
alarms, and the maintenance log.
Table 5.9 Legend to Illustration 5.8, Display Menu Keys
C. Navigation keys and indicator lights (LEDs)
Navigation keys are used for programming functions and
moving the display cursor. The navigation keys also
provide speed control in local operation. There are also 3
frequency converter status indicator lights in this area.
Key
Reverts to the previous step or list in the
10 Back
menu structure.
Cancels the last change or command as long
11 Cancel
as the display mode has not changed.
Press for a definition of the function being
12 Info
shown.
Navigation To move between items in the menu, use the
13
keys 4 navigation keys.
Press to access parameter groups or to
14 OK
enable a selection.
Table 5.10 Legend to Illustration 5.8, Navigation Keys
Indicator Light
ON turns on when the frequency
converter receives power from the
15 On Green
mains voltage, a DC bus terminal,
or a 24 V external supply.
When warning conditions are met,
the yellow WARN LED turns on,
16 Warn Yellow
and text appears in the display
area identifying the problem.
A fault condition causes the red
17 Alarm Red alarm LED to flash, and an alarm
text is shown.
Table 5.11 Legend to Illustration 5.8, Indicator Lights (LEDs)
