5.3.4 Main Menu on NLCP

The Main Menu gives access to all parameters.
1. To enter Main Menu, press [Menu] until the
indicator in the display is placed above Main
Menu.
▲ ▼
2.
[ ] [ ]: Browse through the parameter groups.
3. Press [OK] to select a parameter group.
▲ ▼
4.
[ ] [ ]: Browse through the parameters in the
specific group.
5. Press [OK] to select the parameter.
▲ ▼
6.
[►] and [ ]/ [ ]: Set/change the parameter value.
7. Press [OK] to accept the value.
8. To exit, press either [Back] twice (or 3 times for
array parameters) to enter Main Menu, or press
[Menu] once to enter Status.
See Illustration 5.5, Illustration 5.6, and Illustration 5.7 for the
principles of changing the value of continuous,
enumerated, and array parameters, respectively. The
actions in the illustrations are described in Table 5.5,
Table 5.6, and Table 5.7.
MG07A402
Operating Guide
OK
2 x
OK
+
OK

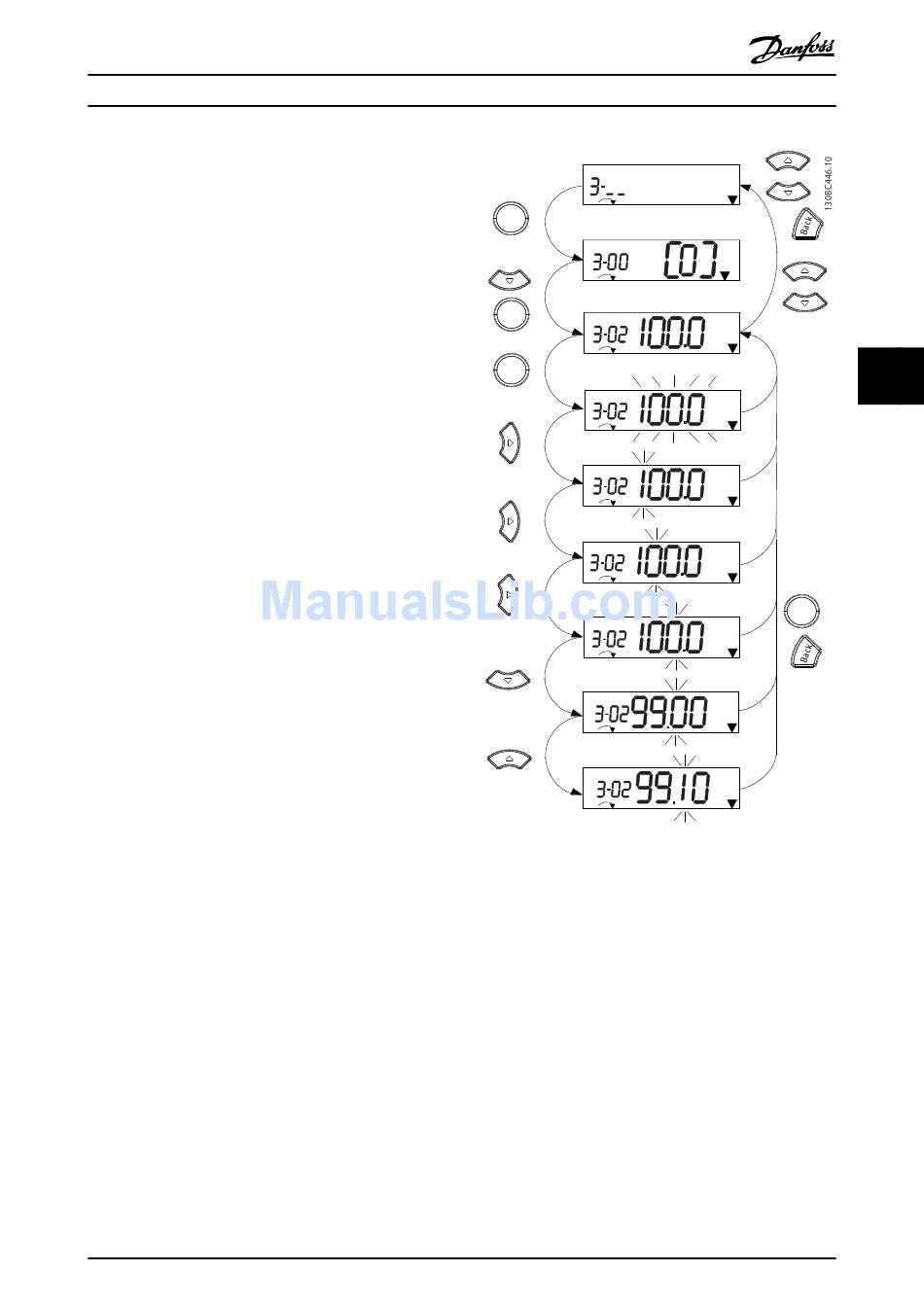

Illustration 5.5 Main Menu Interactions - Continuous
Parameters
