Mechanical Installation
3
3
1
2

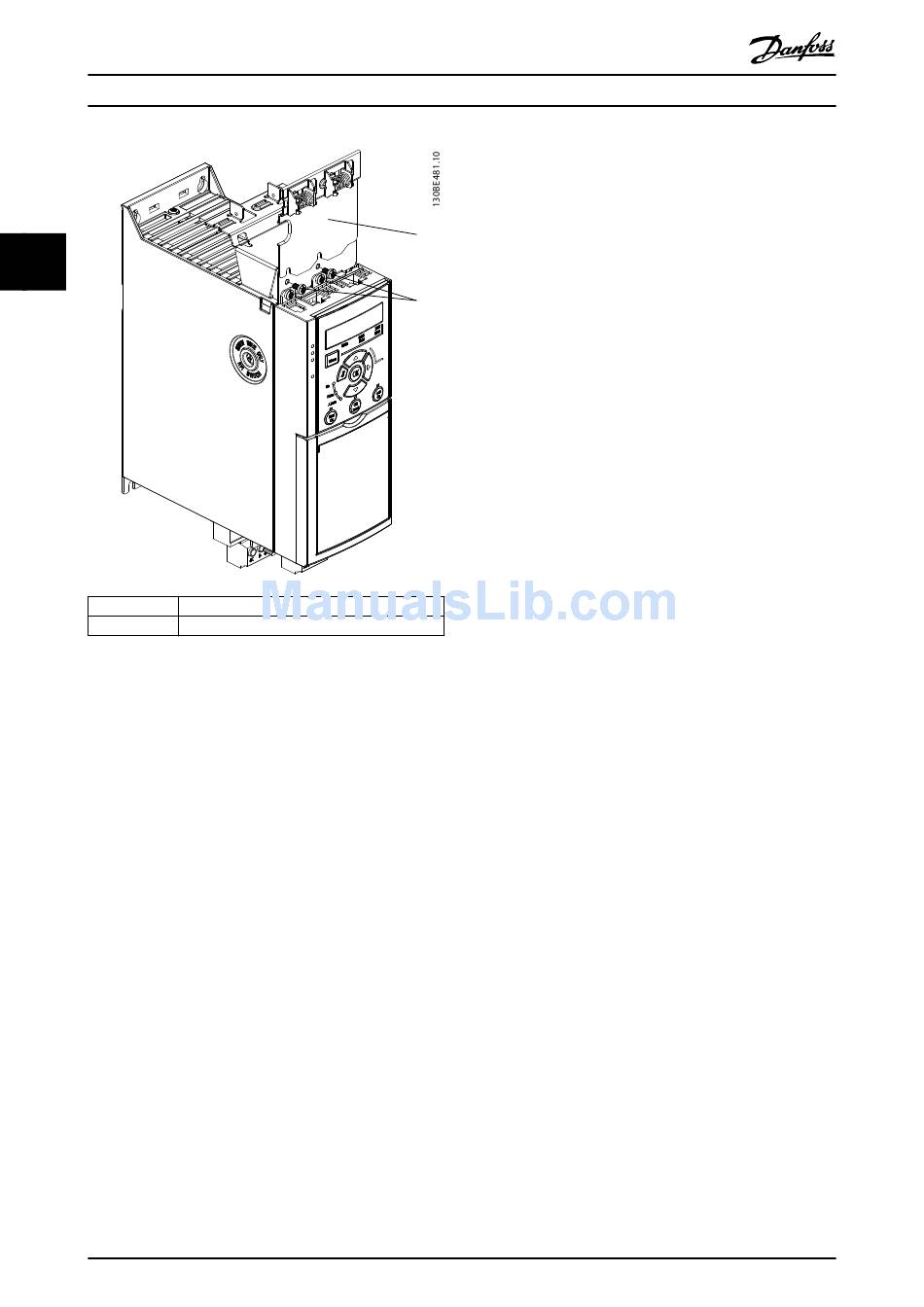

Illustration 3.6 Fasten the Vertical Decoupling Plate with
Screws
Both Illustration 3.5 and Illustration 3.6 show Ethernet based
connectors (RJ45). The actual connector type depends on
the selected fieldbus variant of the frequency converter.
3.
Ensure proper wiring of the fieldbus cables
(PROFIBUS/CANopen) or push the cable
connectors (RJ45 for PROFINET/POWERLINK/
Ethernet/IP) into the sockets in the control
cassette.
4.
4a
4b
12
VLT
Vertical decoupling plate
Screws
Place the PROFIBUS/CANopen cables
between the spring-loaded metal
clamps to establish mechanical fixation
and electrical contact between the
shielded sections of the cables and the
clamps.
Place the PROFINET/POWERLINK/
Ethernet/IP cables between the spring-
loaded metal clamps to establish
mechanical fixation between the cables
and the clamps.
Danfoss A/S © 10/2017 All rights reserved.
®
Midi Drive FC 280
1
2
MG07A402
