Easy to Use AD4000 Series 16-/18-/20-Bit Precision SAR ADCs User Guide
SOFTWARE OPERATION
When the software launches, the panel opens and the software
searches for the hardware connected to the PC. The software
detects the generic attached to the PC, and the software panel
then launches as shown in Figure 18.
DESCRIPTION OF THE USER PANEL
The following is the description of the user panel.
The File menu (Label 1 in Figure 18) has the choice of the
following options:
Save Captured Data allows the user to save the current
captured data for later analysis; the file format is .csv. The
user is prompted to choose or enter the path of the file in
1
15
3
7
2
4
the Save As dialog box (see Figure 19). Save to an appropriate
folder location.
Load Captured Data opens the Load File dialog box, where
the user is prompted to load previously captured data in .csv
format for analysis.
Take Screenshot allows the user to save the current screen
capture as a .jpg.
Print Screenshot allows the user to save the current screen
capture as a .pdf.
Exit stops running the application software.
6

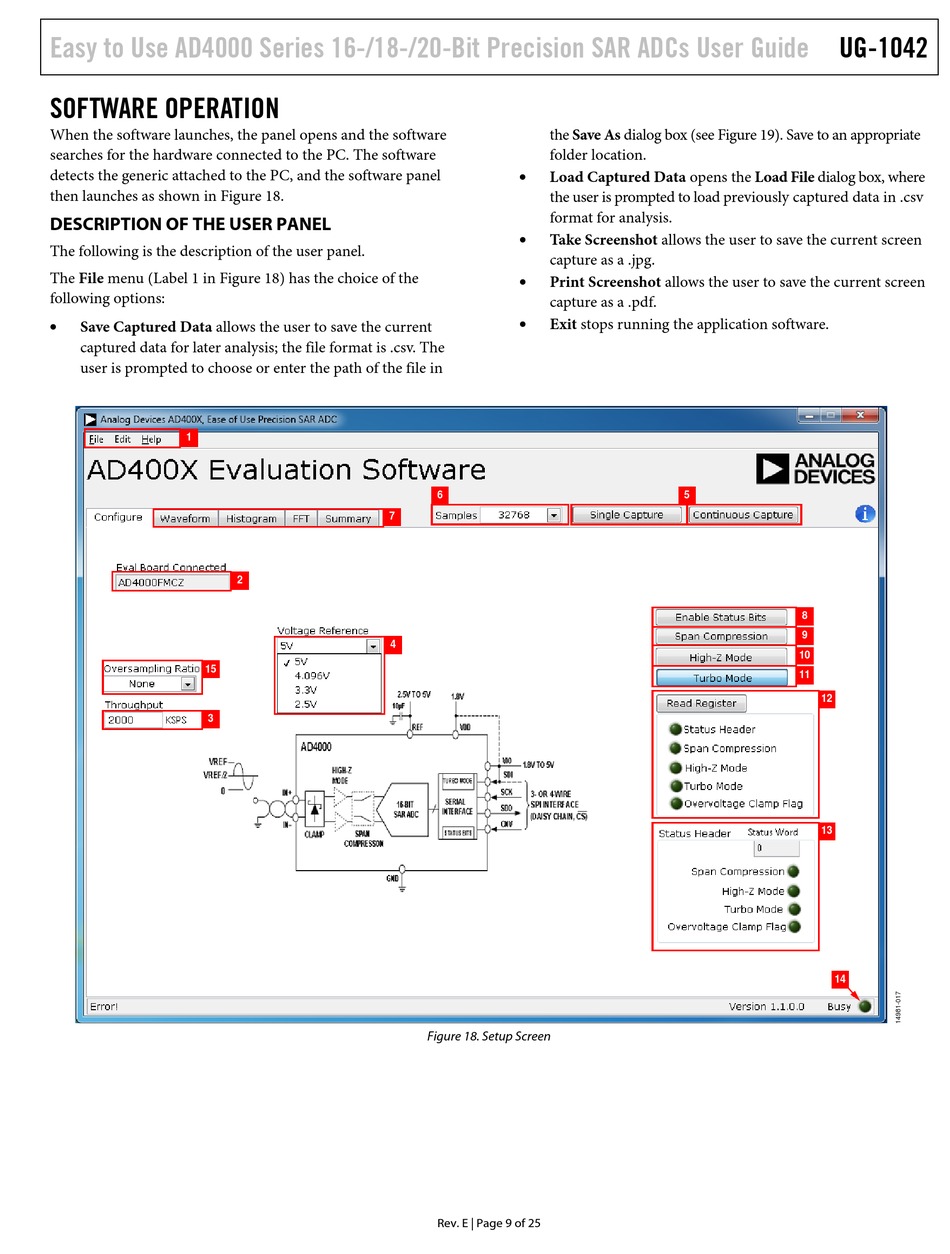

Figure 18. Setup Screen
Rev. E | Page 9 of 25
UG-1042
5
8
9
10
11
12
13
14
