5. A pop-up window opens and displays a bar showing the
installation progress, as shown in Figure 7.

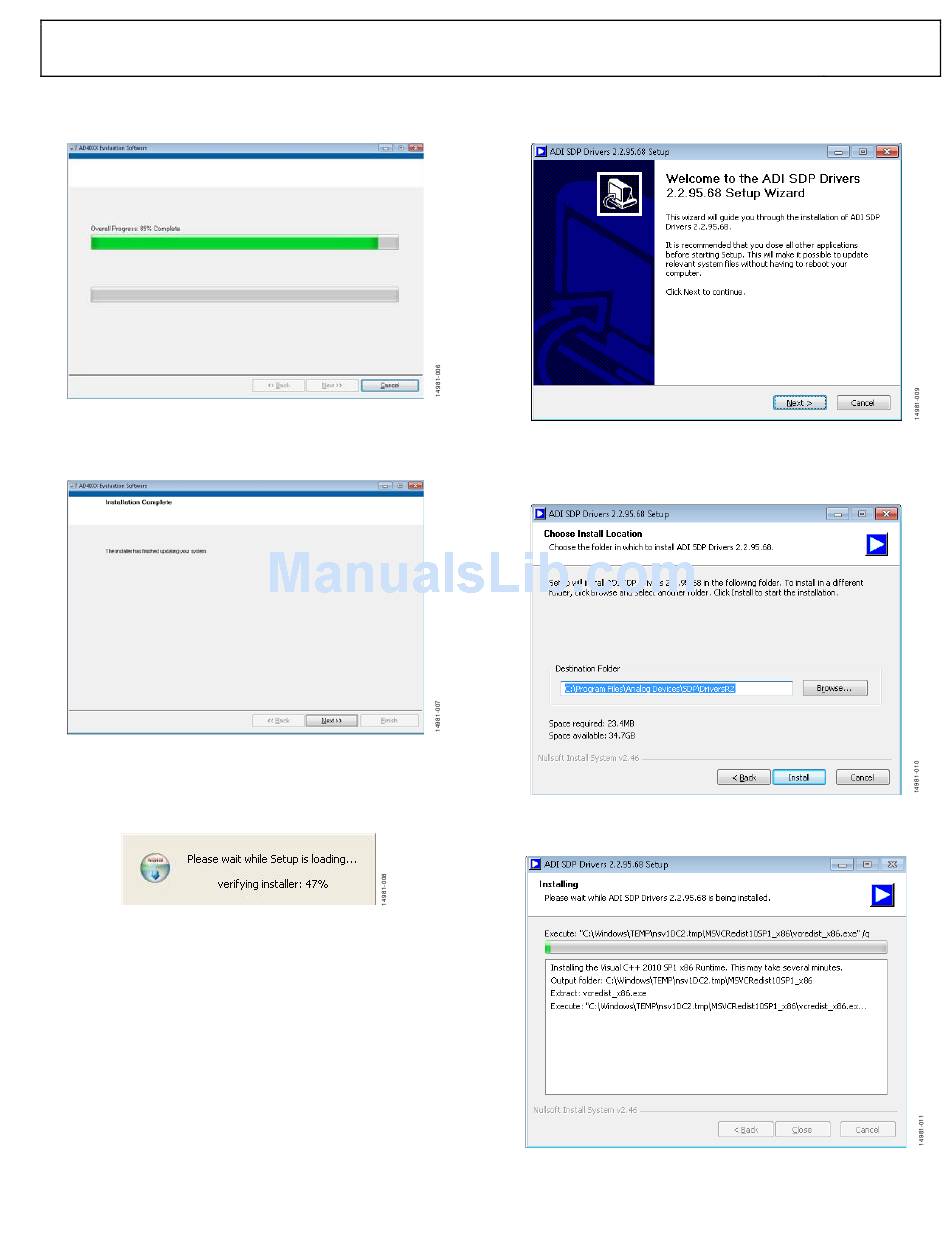

Figure 7. Overall Progress
6. Click Next to complete the installation and to launch the
SDP-H1 driver installation as shown in Figure 9.
Figure 8. Installation Complete Window
The second part of the software installation is the drivers related
to the SDP-H1 board. These drivers must be installed for the
evaluation board to function correctly.
Figure 9. Beginning of SDP-H1 Driver Installation
1. The ADI SDP Drivers 2.2.95.68 Setup Wizard opens.
Click Next to install the
Figure 10. ADI SDP Drivers 2.2.95.68 Setup Wizard Window
2. Choose the installation location and click Install; the
default folder is shown in Figure 11.
Figure 11. Choose Install Location Window
3. The installation begins, and a progress bar is displayed.
Rev. E | Page 7 of 25
SDP-H1 drivers.
Figure 12. Installing Window
