UG-1042
Easy to Use AD4000 Series 16-/18-/20-Bit Precision SAR ADCs User Guide
SUMMARY TAB
The Summary tab captures all the display information and
provides them in one panel with a synopsis of the information,
including key performance parameters, such as SNR and THD.

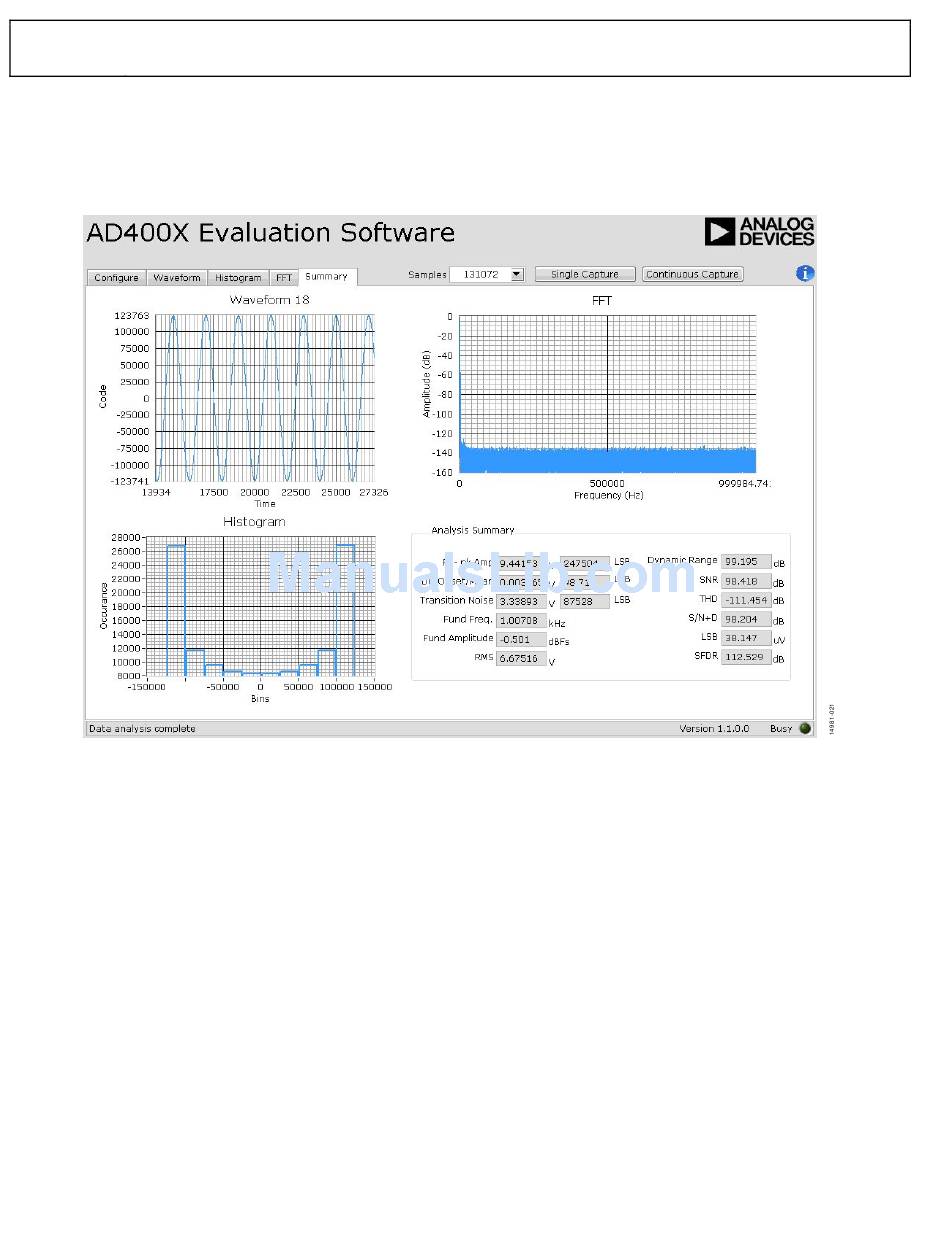

Figure 24. Summary Tab, Shows All Captured Windows
Rev. E | Page 14 of 25
