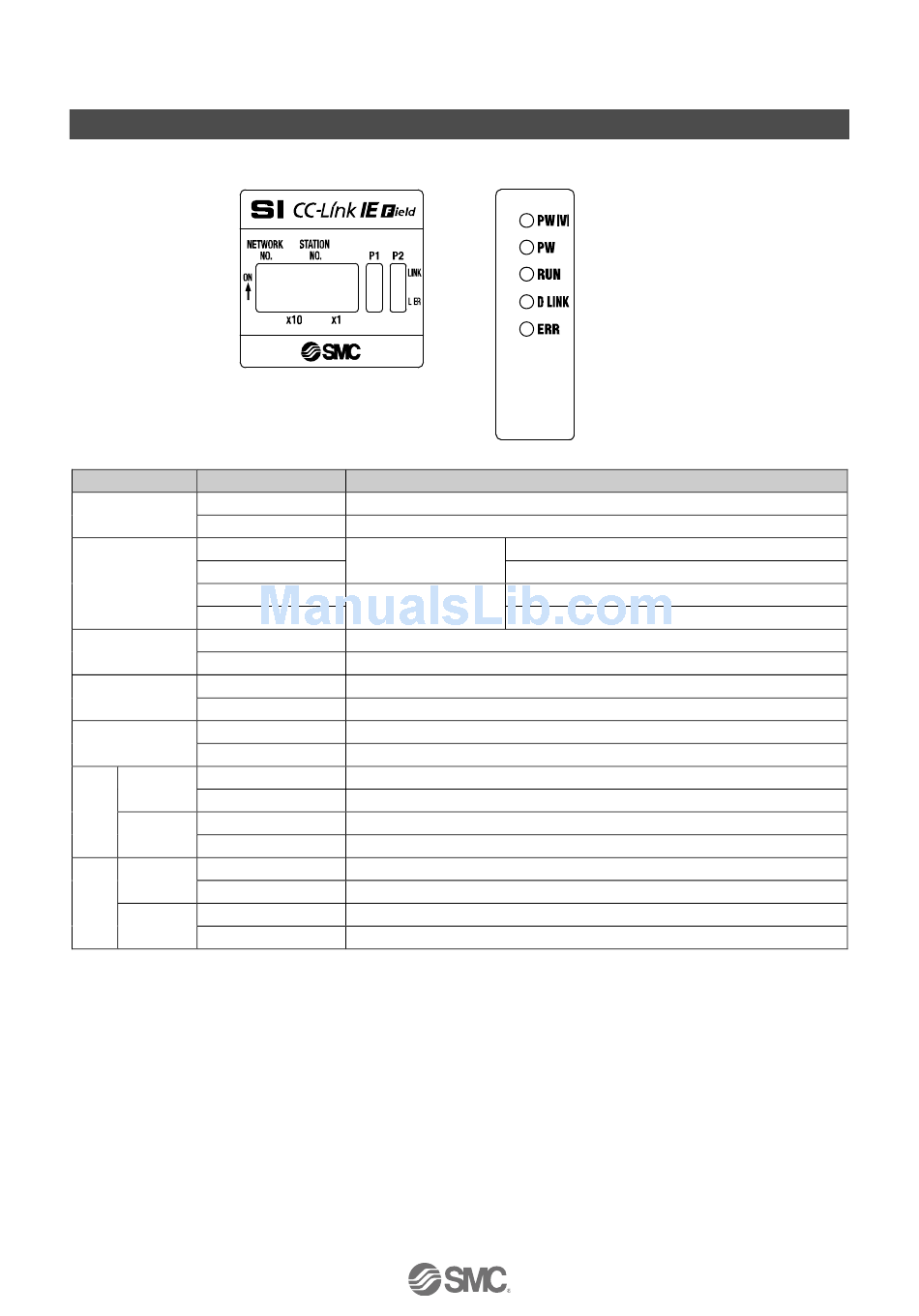

○LED indication
LED indication LED status
PW(V)
(Green)
PW
(Green)
Flickering
RUN
(Green)
D LINK
(Green)
ERR
(Red)
LINK
(Green)
P1
L ER
(Red)
LINK
(Green)
P2
L ER
(Red)
ON Normal power supply for solenoids
OFF Insufficient power supply for solenoids (19 V or less)
ON
Normal mode
OFF
Unit test mode
ON
ON Operating normally
OFF Node alarm occurs
ON Cyclic transmission being performed
OFF Cyclic transmission stopped
ON Disconnected, test failure end (Unit test mode)
OFF Operating normally
ON Link-up
OFF Link-down
ON Error frame received
OFF Normal frame received
ON Link-up
OFF Link-down
ON Error frame received
OFF Normal frame received
Description
Normal power supply for control and input
Insufficient power supply for control and input
Test mode
Test normal mode end
