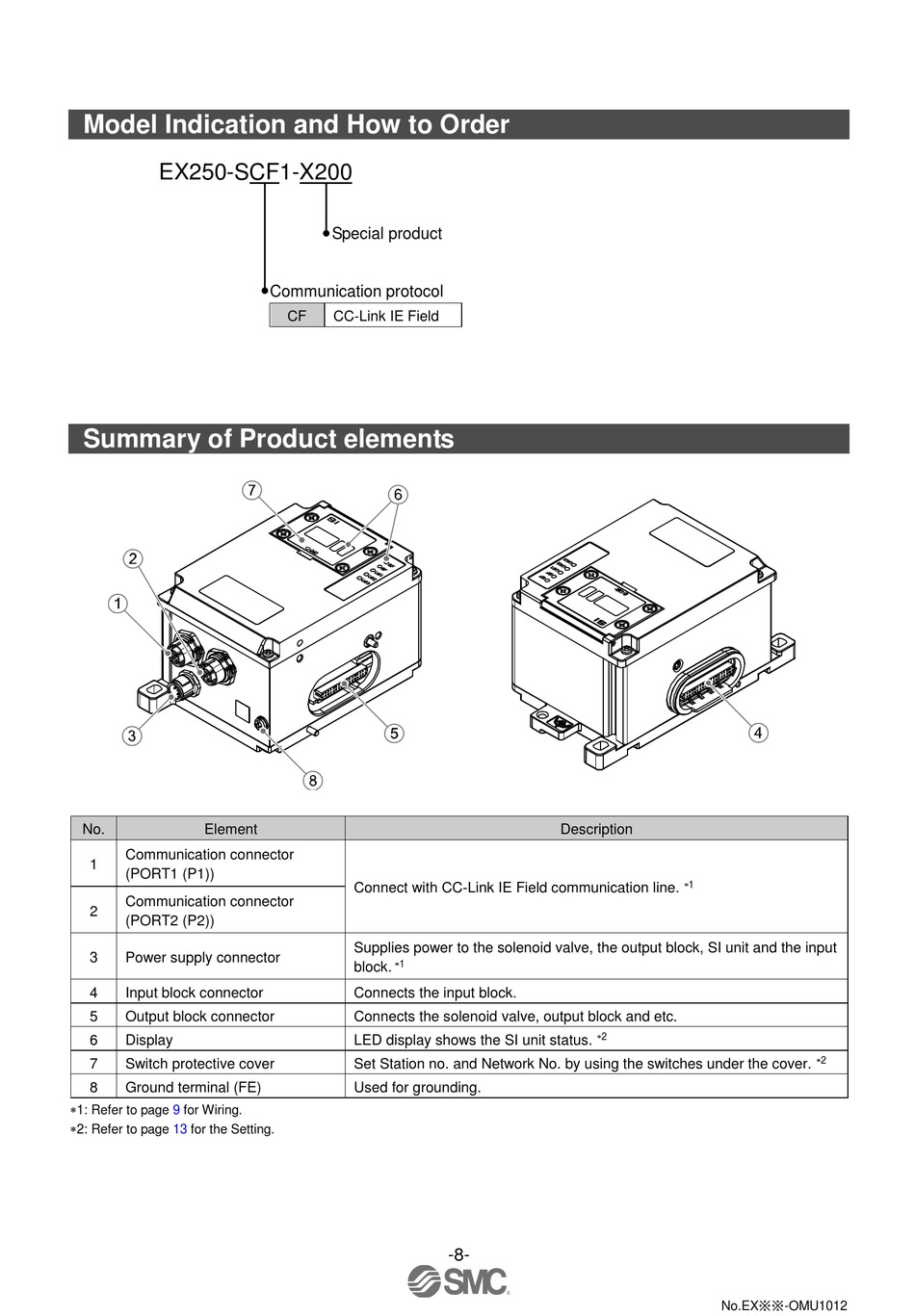

Model Indication and How to Order

EX250-SCF1-X200

Summary of Product elements

No.
Element
Communication connector
1
(PORT1 (P1))
Communication connector
2
(PORT2 (P2))
3
Power supply connector
4
Input block connector
5
Output block connector
6
Display
7
Switch protective cover
8
Ground terminal (FE)
1: Refer to page
9
for Wiring.
2: Refer to page
13
for the Setting.
Special product
Communication protocol
CF
CC-Link IE Field
Connect with CC-Link IE Field communication line.
Supplies power to the solenoid valve, the output block, SI unit and the input
1
block.
Connects the input block.
Connects the solenoid valve, output block and etc.
LED display shows the SI unit status.
Set Station no. and Network No. by using the switches under the cover.
Used for grounding.
Description
2
-8-
1
2
No.EX※※-OMU1012
