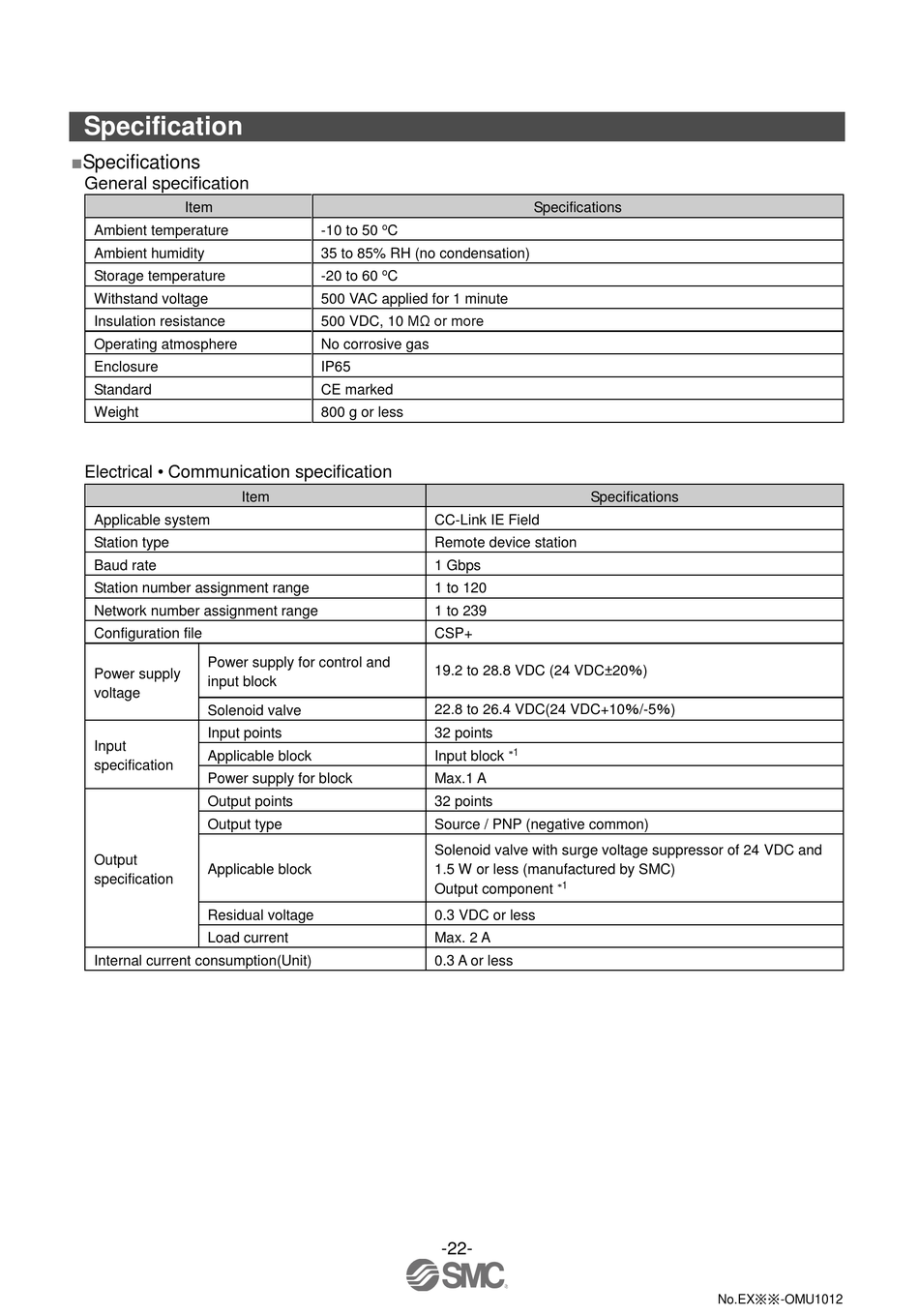

Specification

■Specifications

General specification
Item
Ambient temperature
Ambient humidity
Storage temperature
Withstand voltage
Insulation resistance
Operating atmosphere
Enclosure
Standard
Weight
Electrical • Communication specification
Item
Applicable system
Station type
Baud rate
Station number assignment range
Network number assignment range
Configuration file
Power supply for control and
Power supply
input block
voltage
Solenoid valve
Input points
Input
Applicable block
specification
Power supply for block
Output points
Output type
Output
Applicable block
specification
Residual voltage
Load current
Internal current consumption(Unit)
o
-10 to 50 C
35 to 85% RH (no condensation)
o
-20 to 60 C
500 VAC applied for 1 minute
500 VDC, 10 MΩ or more
No corrosive gas
IP65
CE marked
800 g or less
CC-Link IE Field
Remote device station
1 Gbps
1 to 120
1 to 239
CSP+
19.2 to 28.8 VDC (24 VDC±20％)
22.8 to 26.4 VDC(24 VDC+10％/-5％)
32 points
Input block
Max.1 A
32 points
Source / PNP (negative common)
Solenoid valve with surge voltage suppressor of 24 VDC and
1.5 W or less (manufactured by SMC)
Output component
0.3 VDC or less
Max. 2 A
0.3 A or less
-22-
Specifications
Specifications
1
1
No.EX※※-OMU1012
