Chapter 2: Jumpers and Connectors

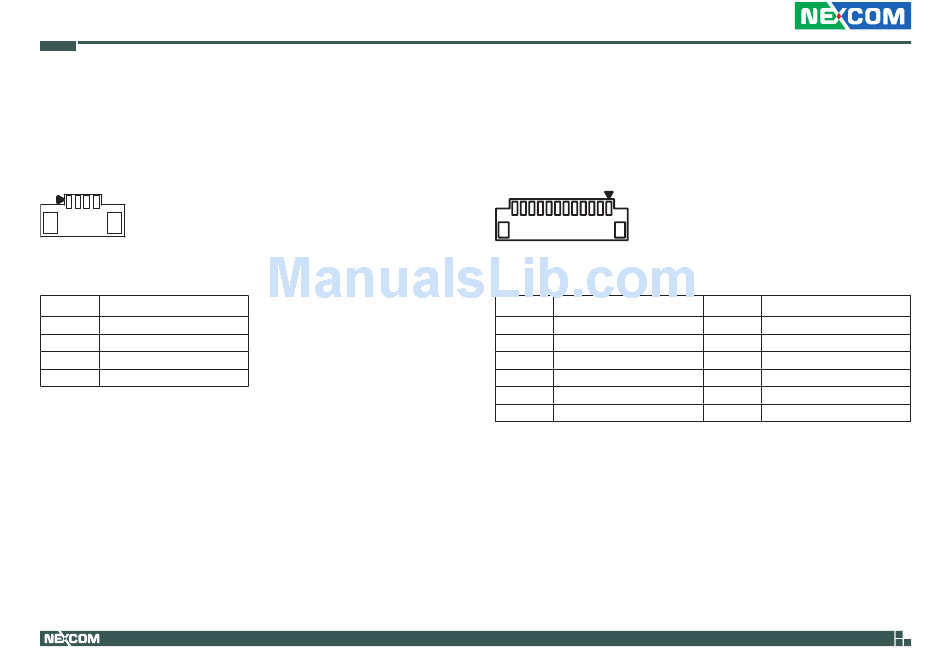

AMP Connector

Connector type: 1x4 4-pin header
Connector location: AMP_CON
1 4
Pin Definition
1 ROUTP
2 ROUTN
3 LOUTN
4 LOUTP
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.

Debug Port Connector

Connector type: 1x12 12-pin header
Connector location: DEBUG
1
12
Pin Definition
1 S_LAD0
3 S_LAD2
5 +3V
7 S_PLTRST#
9 33M_CLK5_C
11 S_LDRQ#
16
Pin Definition
2 S_LAD1
4 S_LAD3
6 F_FRAME#
8 GND
10 S_LDRQ1#
12 F_SERIRQ#
