USER MANUAL – Z-KEY

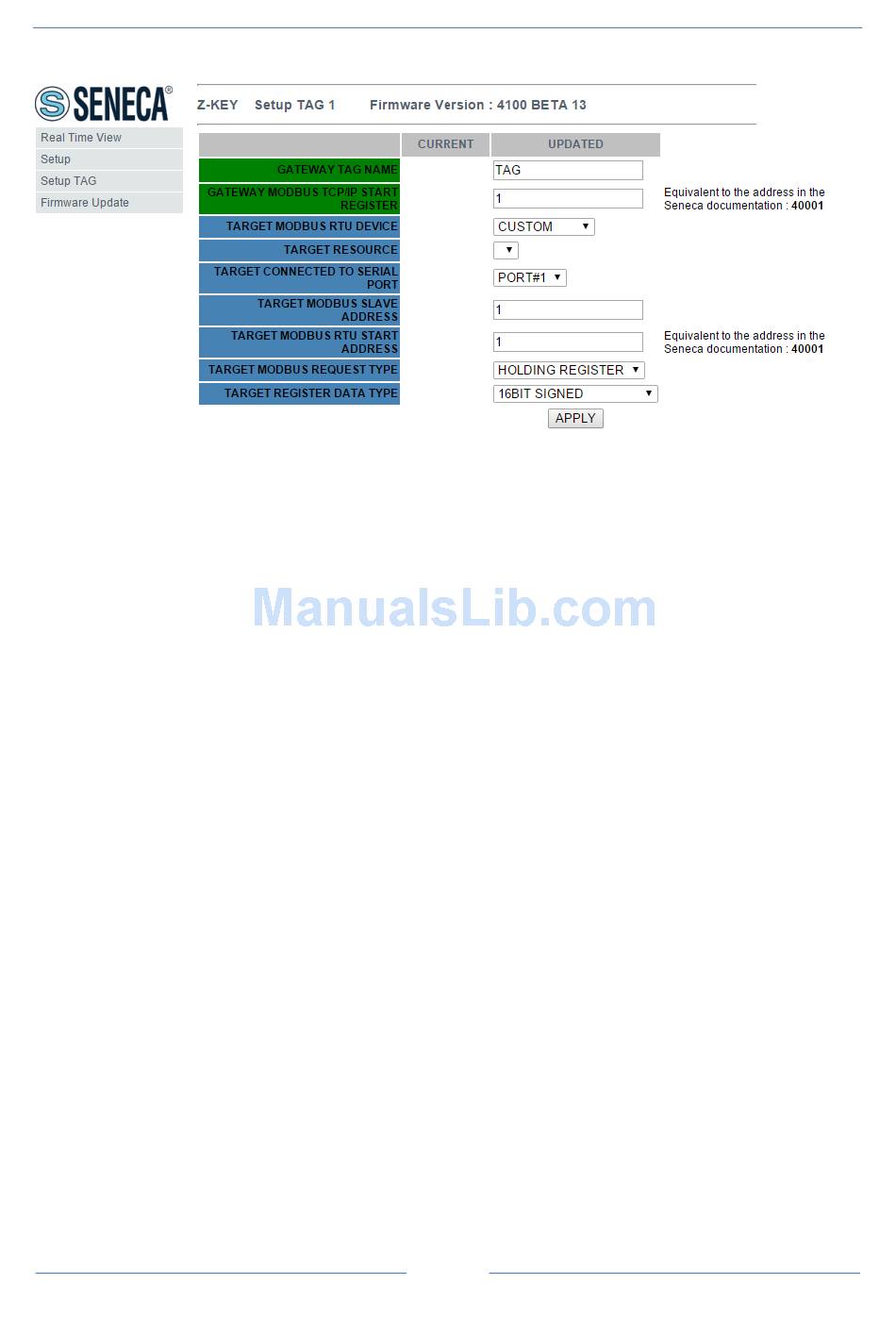

Gateway Tag Name
Set the Tag name to show in the Webserver realtime view
Gateway Modbus TCP-IP Start Register
Set the address where the tag is placed in shared memory for access from Modbus TCP-IP.
Target Modbus RTU Device
Select the Modbus RTU slave model from the Seneca database or select "custom" if you don't use a Seneca
Modbus RTU slave.
Target Resource
If you are using a Seneca Modbus RTU Slave select the resource name from the Seneca database.
Target Connected to serial port
Select at which Z-KEY serial port is connected the modbus rtu slave device.
Target Modbus RTU Slave Station Address
