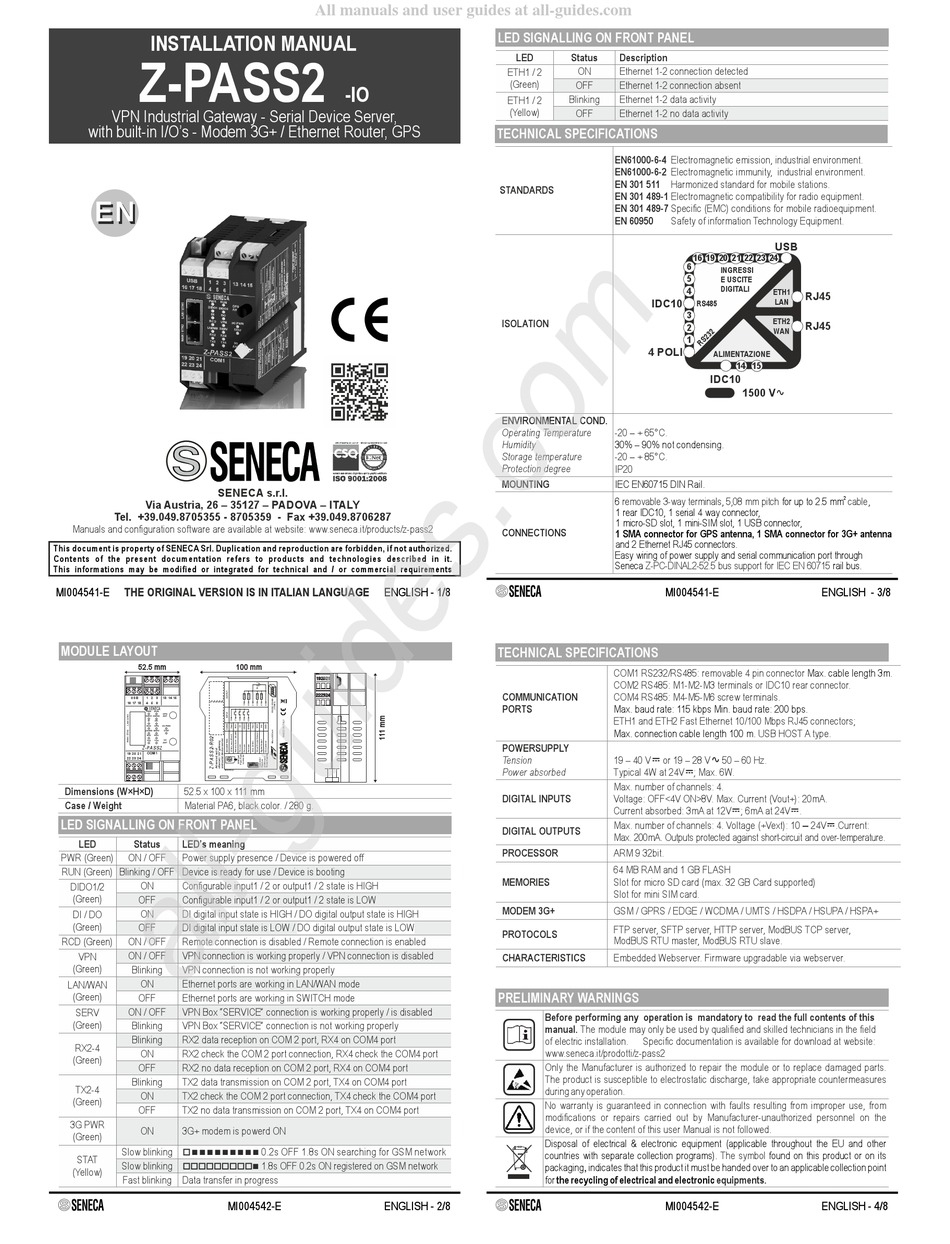

Seneca Z-PASS2-IO Installation Manual

INSTALLATION MANUAL
Z-PASS2
VPN Industrial Gateway - Serial Device Server,
with built-in I/O's - Modem 3G+ / Ethernet Router, GPS
EN
EN
SENECA s.r.l.
Via Austria, 26 – 35127 – PADOVA – ITALY
Tel. +39.049.8705355 - 8705359 - Fax +39.049.8706287
Manuals and configuration software are available at website: www.seneca.it/products/z-pass2
This document is property of SENECA Srl. Duplication and reproduction are forbidden, if not authorized.
Contents of the present documentation refers to products and technologies described in it.
This informations may be modified or integrated for technical and / or commercial requirements
MI004541-E THE ORIGINAL VERSION IS IN ITALIAN LANGUAGE

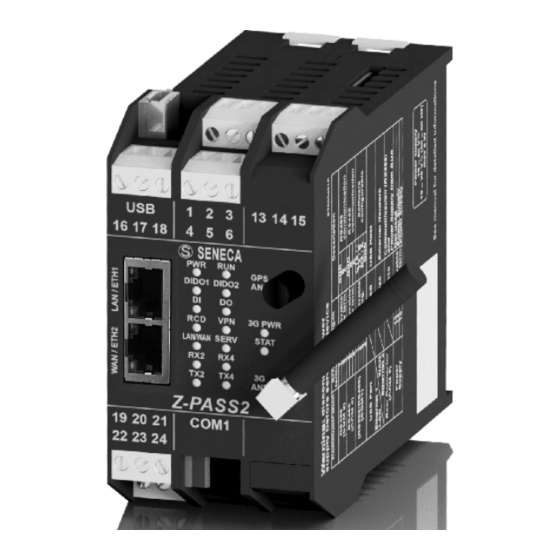

MODULE LAYOUT
52.5 mm
USB 1 2 3 13 14 15
16 17 18 4 5 6
S SENECA
PWR RUN
GPS
DIDO1
DIDO2 ANT
DI DO
RCD VPN 3G PWR
LAN/WAN SERV STAT
RX2 RX4
TX2 TX4 3G
ANT
Z-PASS2
19 20 21 COM1
22 23 24
Dimensions (W×H×D) 52.5 x 100 x 111 mm
Case / Weight Material PA6, black color. / 280 g.
LED SIGNALLING ON FRONT PANEL
LED Status LED's meaning
PWR (Green) ON / OFF Power supply presence / Device is powered off
RUN (Green) Blinking / OFF Device is ready for use / Device is booting
ON Configurable input1 / 2 or output1 / 2 state is HIGH
DIDO1/2
(Green)
OFF Configurable input1 / 2 or output1 / 2 state is LOW
ON DI digital input state is HIGH / DO digital output state is HIGH
DI / DO
(Green)
OFF DI digital input state is LOW / DO digital output state is LOW
RCD (Green) ON / OFF Remote connection is disabled / Remote connection is enabled
ON / OFF VPN connection is working properly / VPN connection is disabled
VPN
(Green)
Blinking VPN connection is not working properly
ON Ethernet ports are working in LAN/WAN mode
LAN/WAN
(Green)
OFF Ethernet ports are working in SWITCH mode
ON / OFF VPN Box "SERVICE" connection is working properly / is disabled
SERV
(Green)
Blinking VPN Box "SERVICE" connection is not working properly
Blinking RX2 data reception on COM 2 port, RX4 on COM4 port
RX2-4
ON RX2 check the COM 2 port connection, RX4 check the COM4 port
(Green)
OFF RX2 no data reception on COM 2 port, RX4 on COM4 port
Blinking TX2 data transmission on COM 2 port, TX4 on COM4 port
TX2-4
ON TX2 check the COM 2 port connection, TX4 check the COM4 port
(Green)
OFF TX2 no data transmission on COM 2 port, TX4 on COM4 port
3G PWR
ON 3G+ modem is powerd ON
(Green)
Slow blinking

STAT
Slow blinking

(Yellow)
Fast blinking Data transfer in progress

MI004542-E
All manuals and user guides at all-guides.com
-IO
ENGLISH - 1/8
100 mm
19 2021
22 2324
0.2s OFF 1.8s ON searching for GSM network
1.8s OFF 0.2s ON registered on GSM network
ENGLISH - 2/8
LED SIGNALLING ON FRONT PANEL
LED Status Description
ON Ethernet 1-2 connection detected
ETH1 / 2
(Green)
OFF Ethernet 1-2 connection absent
Blinking Ethernet 1-2 data activity
ETH1 / 2
(Yellow)
OFF Ethernet 1-2 no data activity
TECHNICAL SPECIFICATIONS
EN61000-6-4 Electromagnetic emission, industrial environment.
EN61000-6-2 Electromagnetic immunity, industrial environment.
EN 301 511 Harmonized standard for mobile stations
STANDARDS
EN 301 489-1 Electromagnetic compatibility for radio equipment.
EN 301 489-7 Specific (EMC) conditions for mobile radioequipment.
EN 60950 Safety of information Technology Equipment.
IDC10
ISOLATION
4 POLI
ENVIRONMENTAL COND.
Operating Temperature -20 + 65°C. –
Humidity 30% – 90% not condensing.
Storage temperature -20 + 85°C. –
Protection degree IP20
MOUNTING IEC EN60715 DIN Rail.
6 removable 3-way terminals 5,08 mm pitch
1 rear IDC10, 1 serial 4 way connector,
1 micro-SD slot, 1 mini-SIM slot, 1 USB connector,
CONNECTIONS
1 SMA connector for GPS antenna, 1 SMA connector for 3G+ antenna
and 2 Ethernet RJ45 connectors.
Easy wiring of power supply and serial communication port through
Seneca Z-PC-DINAL2-52.5 bus support for IEC EN 60715

MI004541-E
TECHNICAL SPECIFICATIONS
COM1 RS232/RS485: removable 4 pin connector
COM2 RS485: M1-M2-M3 terminals or IDC10 rear connector.
COMMUNICATION COM4 RS485: M4-M5-M6 screw terminals.
PORTS Max. baud rate: 115 kbps Min. baud rate: 200 bps.
ETH1 and ETH2 Fast Ethernet 10/100 Mbps RJ45 connectors;
Max. connection cable length 100 m.
POWERSUPPLY
Tension 19 – 40 V or 19 – 28 V 50 – 60 Hz.
Power absorbed Typical 4W at 24V ; Max. 6W.
Max. number of channels: 4.
DIGITAL INPUTS Voltage: OFF<4V ON>8V. Max. Current (Vout+): 20mA.
Current absorbed: 3mA at 12V; 6mA at 24V.
Max. number of channels: 4. Voltage (+Vext): 10 – 24V .Current:
DIGITAL OUTPUTS
Max. 200mA. Outputs protected against short-circuit and over-temperature.
PROCESSOR ARM 9 32bit.
64 MB RAM and 1 GB FLASH
MEMORIES Slot for micro SD card (max. 32 GB Card supported)
Slot for mini SIM card.
MODEM 3G+ GSM / GPRS / EDGE / WCDMA / UMTS / HSDPA / HSUPA / HSPA+
FTP server, SFTP server, HTTP server, ModBUS TCP server,
PROTOCOLS
ModBUS RTU master, ModBUS RTU slave.
CHARACTERISTICS Embedded Webserver. Firmware upgradable via webserver.
PRELIMINARY WARNINGS
Before performing any operation is mandatory to read the full contents of this
manual. The module may only be used by qualified and skilled technicians in the field
of electric installation. Specific documentation is available for download at website:
www.seneca.it/prodotti/z-pass2
Only the Manufacturer is authorized to repair the module or to replace damaged parts.
The product is susceptible to electrostatic discharge, take appropriate countermeasures
during any operation.
No warranty is guaranteed in connection with faults resulting from improper use, from
modifications or repairs carried out by Manufacturer-unauthorized personnel on the
device, or if the content of this user Manual is not followed.
Disposal of electrical & electronic equipment (applicable throughout the EU and other
countries with separate collection programs).
packaging, indicates that this product it must be handed over to an applicable collection point
for the recycling of electrical and electronic

MI004542-E
.
USB
16 19 20 21 22 23 24
6
INGRESSI
5
E USCITE
DIGITALI
4
ETH1
RJ45
LAN
RS485
3
ETH2
RJ45
2
WAN
1
ALIMENTAZIONE
14 15
IDC10
1500 V
2
, for up to 2.5 mm cable
rail bus.
ENGLISH - 3/8
Max. cable length 3m
USB HOST A type.


The symbol found on this product or on its
equipments.
ENGLISH - 4/8
,
.
