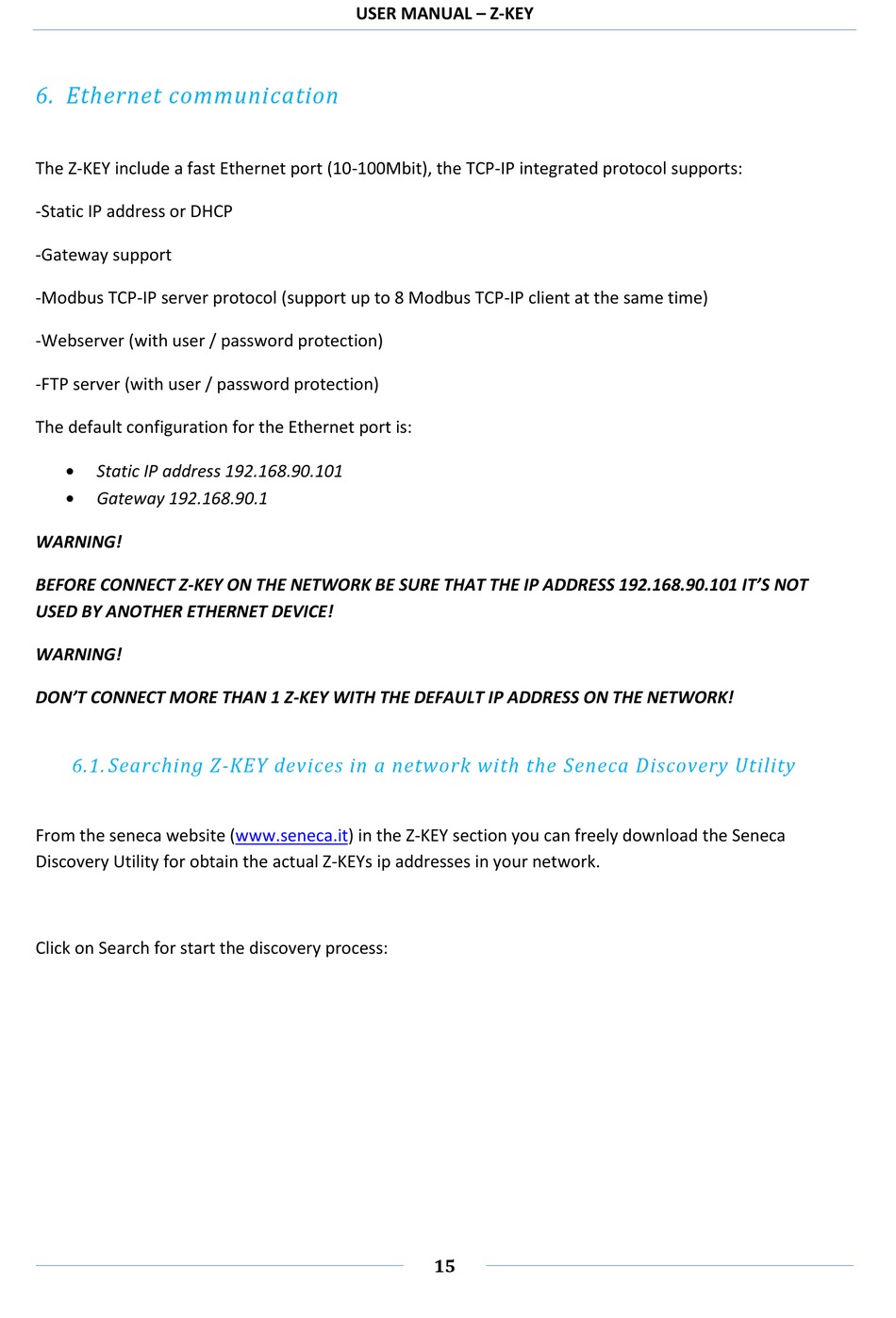

6. Ethernet communication

The Z-KEY include a fast Ethernet port (10-100Mbit), the TCP-IP integrated protocol supports:
-Static IP address or DHCP
-Gateway support
-Modbus TCP-IP server protocol (support up to 8 Modbus TCP-IP client at the same time)
-Webserver (with user / password protection)
-FTP server (with user / password protection)
The default configuration for the Ethernet port is:

Static IP address 192.168.90.101

Gateway 192.168.90.1
WARNING!
BEFORE CONNECT Z-KEY ON THE NETWORK BE SURE THAT THE IP ADDRESS 192.168.90.101 IT'S NOT
USED BY ANOTHER ETHERNET DEVICE!
WARNING!
DON'T CONNECT MORE THAN 1 Z-KEY WITH THE DEFAULT IP ADDRESS ON THE NETWORK!

6.1. Searching Z-KEY devices in a network with the Seneca Discovery Utility

From the seneca website (www.seneca.it) in the Z-KEY section you can freely download the Seneca
Discovery Utility for obtain the actual Z-KEYs ip addresses in your network.
Click on Search for start the discovery process:
