USER MANUAL – Z-KEY

WARNING!

REMEMBER ALWAYS TO CONFIGURE THE WEBSERVER AND FTP AUTHENTICATION USER NAME AND

PASSWORD FOR RESTRICT THE ACCESS TO THE FTP AND THE WEBSERVER. IF YOU LEAVE THE TWO

PARAMETERS TEXT BOXES BLANK NO AUTHENTICATION IT'S REQUIRED FOR ACCESS.

CAUTION!

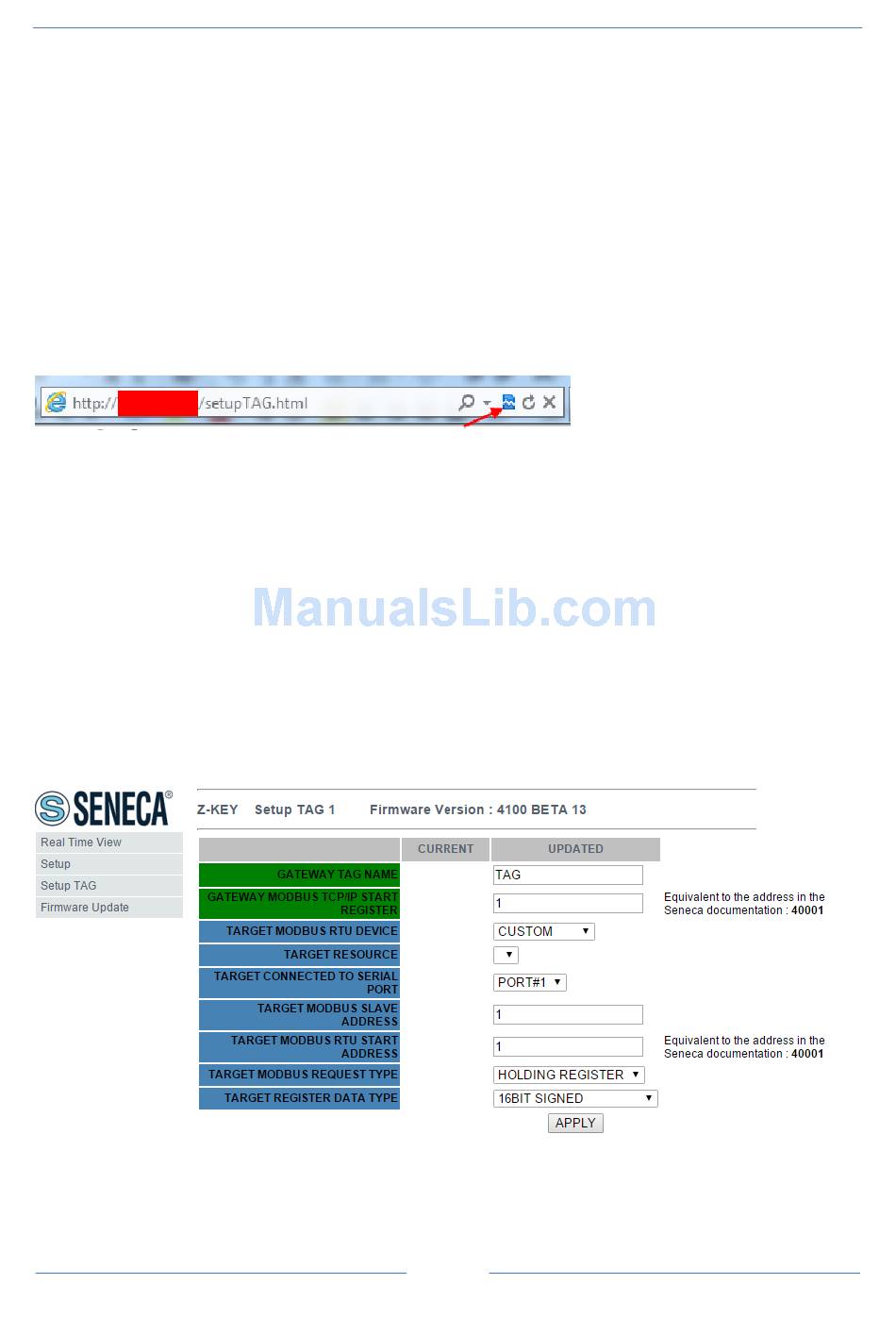

If you are using Internet explorer 9 (or newer) you must enable the compatibility mode (see the arrow

below):

11.3.

Modbus Gateway Tags Setup, export and import

The Z-KEY in Modbus Gateway mode needs to configure the Tags to put into the internal shared memory.

From the Webserver click on "Setup TAGs" button to the left menu:

Now you can ADD, Modify, Delete or move one tag. When you modify or add a tag a new page appear:

Gateway Tag Name
