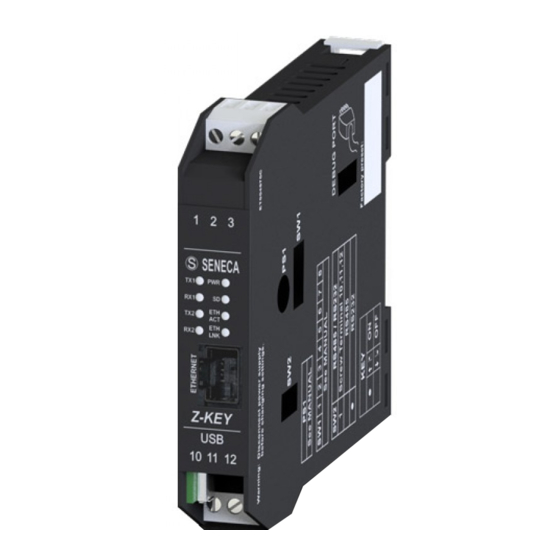

Seneca Z-KEY Installation Manual

Modbus ethernet serial gateway and serial device server
Hide thumbs Also See for Z-KEY:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Manual language
Series
Product
Description
Content:
1 PRELIMINARY WARNINGS
2 PRELIMINARY USE INSTRUCTIONS
3 GENERAL SPECIFICATIONS
4 TECHNICAL SPECIFICATIONS
5 INSTALLATION PROCEDURE
6 ELECTRICAL CONNECTIONS
7 INDICATIONS VIA LED ON FRONT PANEL
8 ACCESSORIES
9 FRONT PANEL/MODULE LAYOUT
10 DECOMMISSIONING AND DISPOSAL
Manufacturer
Website
Mail
This document is property of SENECA srl. Copies and reproduction are prohibited unless authorised.
The content of this document corresponds to the described products and technologies. Indicated data
may be modified or supplemented for technical and/or sales purposes.
FOR FURTHER INFORMATION, PLEASE SEE THE USER MANUAL.
Programming tools, manuals, templates, examples, etc. for the product can be downloaded free of
charged at
www.seneca.it

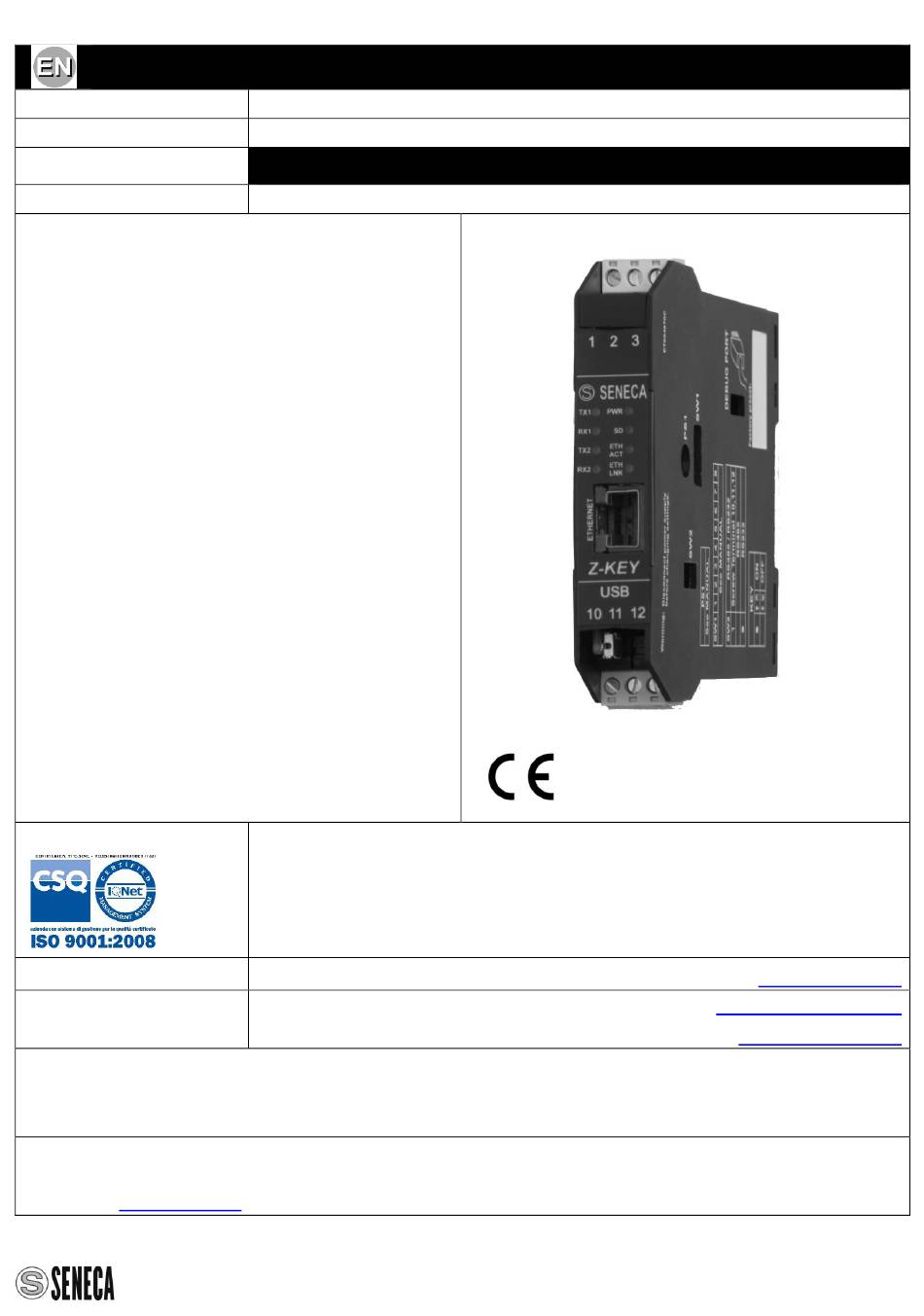

INSTALLATION MANUAL
Modbus Ethernet Serial Gateway and Serial Device Server
in the Z-KEY section.
MI00369-3-EN
Registered offices: Via Austria 26
35127 – Z.I. - Padua – IT
Tel. +39.049.8705355 - 8705355
Technical support:
Product information:
ENGLISH
Z-PC
Z-KEY
Seneca srl
Fax +39 049.8706287
www.seneca.it
support@seneca.it
sales@seneca.it
ENGLISH1/8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z-KEY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Seneca Z-KEY

Summary of Contents for Seneca Z-KEY

  • Page 1 Product information: sales@seneca.it This document is property of SENECA srl. Copies and reproduction are prohibited unless authorised. The content of this document corresponds to the described products and technologies. Indicated data may be modified or supplemented for technical and/or sales purposes.
  • Page 2 One USB port. 1500 V power insulation with respect to the remaining low voltage circuits. Facilitated power and serial line cabling via Seneca bus that can be housed in the IEC EN 60715 omega guide. Pull-out terminals, section 2.5 mm Power indication, RS485/RS232 Rx and Tx, ETHERNET connection and activity on SD card via LED on front panel.
  • Page 3 4 TECHNICAL SPECIFICATIONS Standards Insulation The instrument complies with the following standards: EN61000-6-4 (electromagnetic emission, industrial environment) EN61000-6-2 (electromagnetic immunity, industrial environment) EN60950-1 (safety). SUPPLEMENTARY NOTES ON USE: A 1 A, time-delay, fuse must be installed in series on the power connection, near the module.
  • Page 4 If the Z-PC-DINAL1-17.5 accessory is used, signals can be sent via terminal board. The illustration shows the meaning of the various terminals and DIP-switch position, found in all Seneca supports for DIN IEC EN 60715 guide, not used for the Modbus network. GNDSHLD: Connection cable signal protection shield (recommended).
  • Page 5 Serial port 2 - RS485 SW2=OFF Z-KEY has a serial port that can be set with the SW2 switch. If the SW2 switch is OFF then terminals: 10-11-12 have the RS485 COM 2 available.
  • Page 6 This procedure restores the IP address to factory settings: 192.168.90.101 and Webserver/FTP server user login credentials: admin and password: admin. Turn off the Z-KEY module and set all eight SW1 DIP-switches ON.  Turn on the Z-KEY module and wait 10 seconds.
  • Page 7 Z-KEY can be fully set up via integrated web server. Product programming tools can be downloaded free of charge at www.seneca.it, in the Z-KEY section. To access settings, open the maintenance page in a browser at the Z-KEY IP address, for example: http://192.168.90.101/maintenance/index.html and enter the following credential when required: Username: admin Password: admin.
  • Page 8 MI00369-3-EN ENGLISH8/8...
