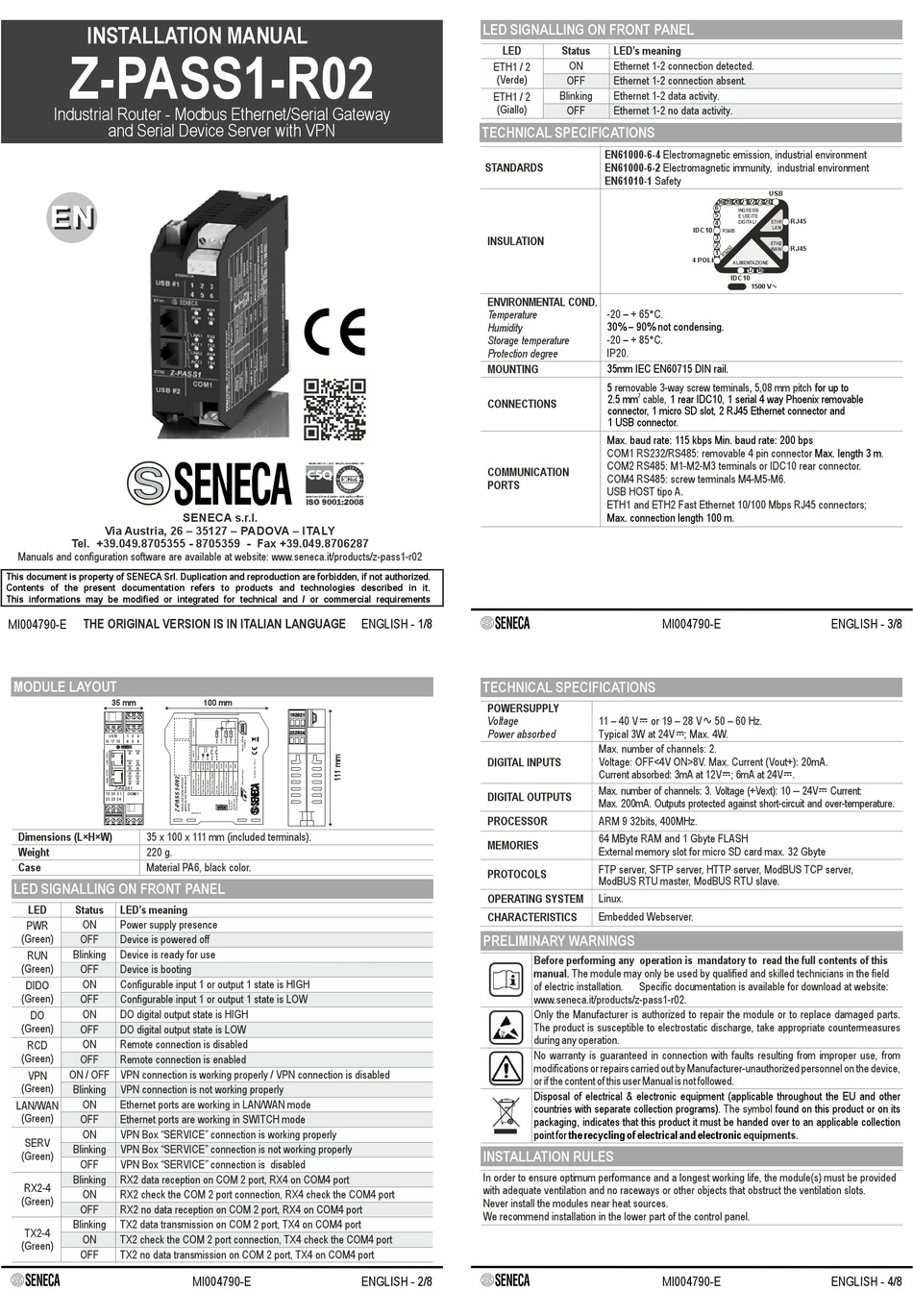

Seneca Z-PASS1-R02 Installation Manual

INSTALLATION MANUAL

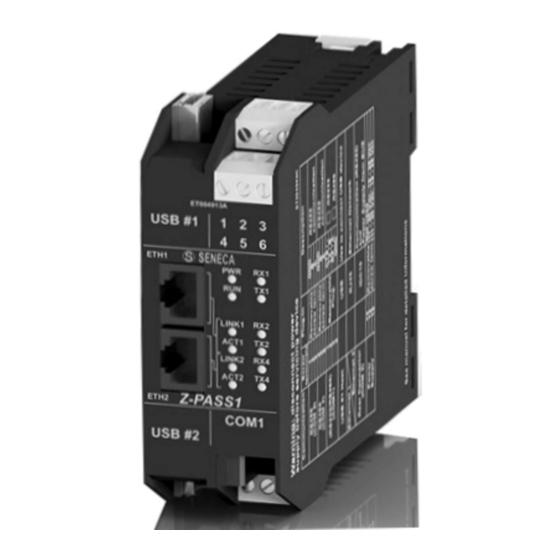

Z-PASS1-R02
Industrial Router - Modbus Ethernet/Serial Gateway
and Serial Device Server with VPN
EN
EN
Via Austria, 26 – 35127 – PADOVA – ITALY
Tel. +39.049.8705355 - 8705359 - Fax +39.049.8706287
Manuals and configuration software are available at website: www.seneca.it/products/z-pass1-r02
This document is property of SENECA Srl. Duplication and reproduction are forbidden, if not authorized.
Contents of the present documentation refers to products and technologies described in it.
This informations may be modified or integrated for technical and / or commercial requirements
THE ORIGINAL VERSION IS IN ITALIAN LANGUAGE
MI004790-E
MODULE LAYOUT
35 mm
USB
1 2 3
16 17 18 4 5 6
S SENECA
PWR RUN
x x
DIDO DO
x x
RCD VPN
x x
LAN/WAN SERV
x x
RX2 RX4
x x
TX2 TX4
x x
Z-PASS1
19 20 21 COM1
22 23 24
Dimensions (L×H×W) 35 x 100 x 111 mm (included terminals).
Weight 220 g.
Case Material PA6, black color.
LED SIGNALLING ON FRONT PANEL
LED Status LED's meaning
ON Power supply presence
PWR
(Green)
OFF Device is powered off
Blinking Device is ready for use
RUN
(Green)
OFF Device is booting
ON Configurable input 1 or output 1 state is HIGH
DIDO
(Green)
OFF Configurable input 1 or output 1 state is LOW
ON DO digital output state is HIGH
DO
(Green)
OFF DO digital output state is LOW
ON Remote connection is disabled
RCD
(Green)
OFF Remote connection is enabled
ON / OFF VPN connection is working properly / VPN connection is disabled
VPN
(Green)
Blinking VPN connection is not working properly
ON Ethernet ports are working in LAN/WAN mode
LAN/WAN
(Green)
OFF Ethernet ports are working in SWITCH mode
ON VPN Box "SERVICE" connection is working properly
SERV
Blinking VPN Box "SERVICE" connection is not working properly
(Green)
OFF VPN Box "SERVICE" connection is disabled
Blinking RX2 data reception on COM 2 port, RX4 on COM4 port
RX2-4
ON RX2 check the COM 2 port connection, RX4 check the COM4 port
(Green)
OFF RX2 no data reception on COM 2 port, RX4 on COM4 port
Blinking TX2 data transmission on COM 2 port, TX4 on COM4 port
TX2-4
ON TX2 check the COM 2 port connection, TX4 check the COM4 port
(Green)
OFF TX2 no data transmission on COM 2 port, TX4 on COM4 port

SENECA s.r.l.
100 mm
19 2021
22 2324
MI004790-E
LED SIGNALLING ON FRONT PANEL SEGNALAZIONI DEI LED SUL FRONTALE
LED
ETH1 / 2
(Verde)
ETH1 / 2
(Giallo)
TECHNICAL SPECIFICATIONS
STANDARDS
INSULATION
ENVIRONMENTAL COND.
Temperature
Humidity
Storage temperature
Protection degree
MOUNTING
CONNECTIONS
COMMUNICATION
PORTS

ENGLISH - 1/8
TECHNICAL SPECIFICATIONS
POWERSUPPLY
Voltage
Power absorbed
DIGITAL INPUTS
DIGITAL OUTPUTS
PROCESSOR
MEMORIES
PROTOCOLS
OPERATING SYSTEM
CHARACTERISTICS
PRELIMINARY WARNINGS
INSTALLATION RULES
In order to ensure optimum performance and a longest working life, the module(s) must be provided
with adequate ventilation and no raceways or other objects that obstruct the ventilation slots.
Never install the modules near heat sources.
We recommend installation in the lower part of the control panel.

ENGLISH - 2/8
Status LED's meaning
ON Ethernet 1-2 connection detected.
OFF Ethernet 1-2 connection absent.
Blinking Ethernet 1-2 data activity.
OFF Ethernet 1-2 no data activity.
EN61000-6-4 Electromagnetic emission, industrial environment
EN61000-6-2 Electromagnetic immunity, industrial environment
EN61010-1 Safety
IDC10
4 POLI
-20 + 65°C. –
30% – 90% not condensing.
-20 + 85°C. –
IP20.
35mm IEC EN60715 DIN rail.
5 removable 3-way screw terminals 5,08 mm pitch
2
2.5 mm cable, 1 rear IDC10, 1 serial 4 way Phoenix removable
connector, 1 micro SD slot, 2 RJ45 Ethernet connector and
1 USB connector.
Max. baud rate: 115 kbps Min. baud rate: 200 bps
COM1 RS232/RS485: removable 4 pin connector
COM2 RS485: M1-M2-M3 terminals or IDC10 rear connector.
COM4 RS485: screw terminals M4-M5-M6.
USB HOST tipo A.
ETH1 and ETH2 Fast Ethernet 10/100 Mbps RJ45 connectors;
Max. connection length 100 m.
MI004790-E
11 – 40 V or 19 – 28 V 50 – 60 Hz.
Typical 3W at 24V ; Max. 4W.

Max. number of channels: 2.
Voltage: OFF<4V ON>8V. Max. Current (Vout+): 20mA.
Current absorbed: 3mA at 12V; 6mA at 24V.
Max. number of channels: 3. Voltage (+Vext): 10 – 24V Current:
Max. 200mA. Outputs protected against short-circuit and over-temperature.
ARM 9 32bits, 400MHz.
64 MByte RAM and 1 Gbyte FLASH
External memory slot for micro SD card max. 32 Gbyte
FTP server, SFTP server, HTTP server, ModBUS TCP server,
ModBUS RTU master, ModBUS RTU slave.
Linux.
Embedded Webserver.
Before performing any operation is mandatory to read the full contents of this
manual. The module may only be used by qualified and skilled technicians in the field
of electric installation. Specific documentation is available for download at website:
www.seneca.it/products/z-pass1-r02 .
Only the Manufacturer is authorized to repair the module or to replace damaged parts.
The product is susceptible to electrostatic discharge, take appropriate countermeasures
during any operation.
No warranty is guaranteed in connection with faults resulting from improper use, from
modifications or repairs carried out by Manufacturer-unauthorized personnel on the device,
or if the content of this user Manual is not followed.
Disposal of electrical & electronic equipment (applicable throughout the EU and other
countries with separate collection programs).
packaging, indicates that this product it must be handed over to an applicable collection
point for the recycling of electrical and electronic
MI004790-E
USB
16 19 20 2122 23 24
6
INGRESSI
5
E USCITE
ETH1 RJ45
4 DIGITALI
LAN
RS485
3
ETH2
2
RJ45
WAN
1
ALIMENTAZIONE
17 18
IDC10
1500 V
, for up to
Max. length 3 m .
ENGLISH - 3/8

The symbol found on this product or on its
equipments.
