HEIDENHAIN TNC 640 User Manual page 693

Turning | Tools in turning mode (option 50)

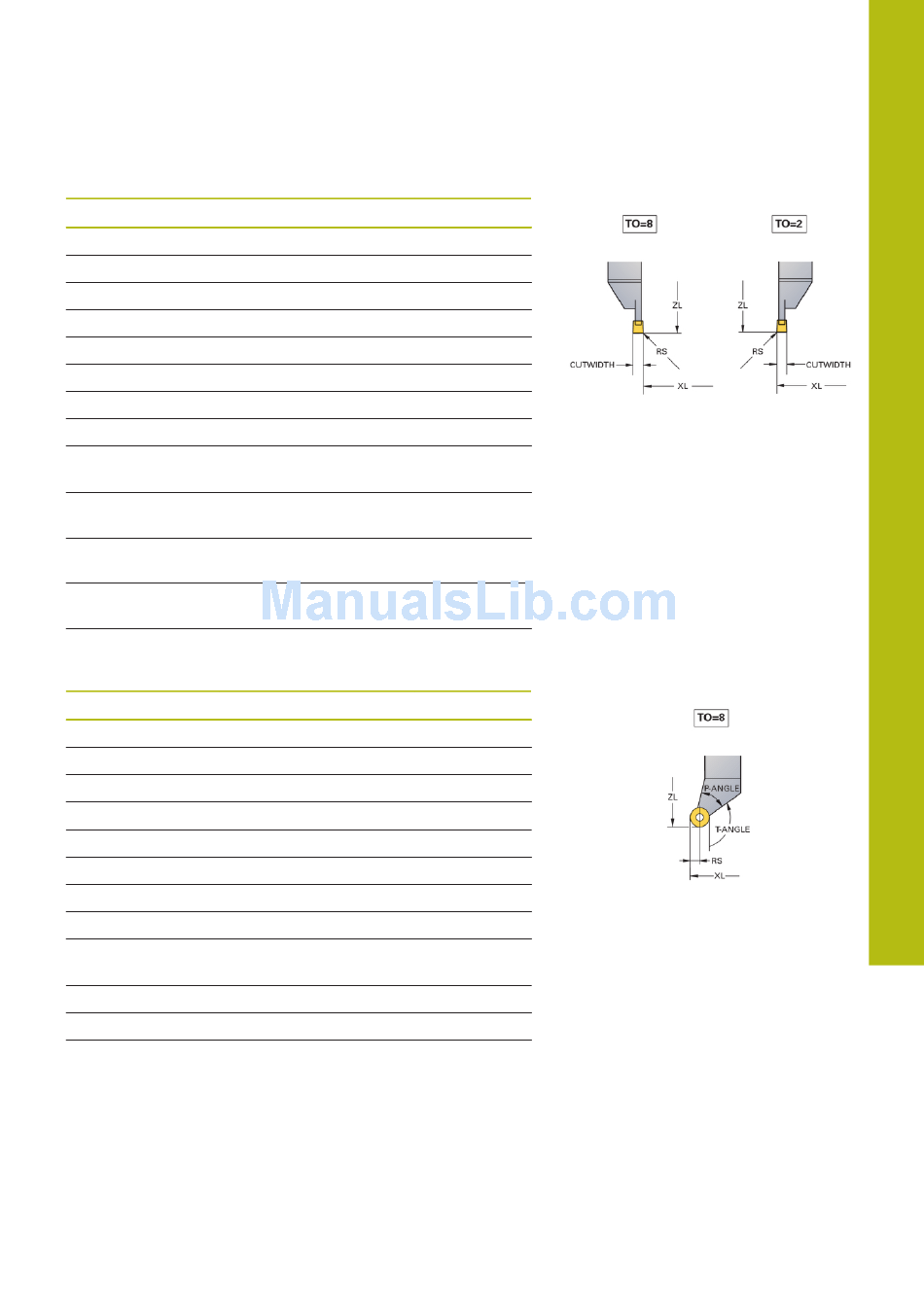

Tool data for groove turning tools
Input parameters Use
ZL
Tool length (#1)
XL
Tool length (#2)
YL
Tool length (#3)
DZL Wear compensation ZL
DXL Wear compensation XL
DYL Wear compensation YL
RS
Cutting radius
TO
Tool orientation
Angle of orienta-
Orientation angle
tion
CUTlengTH
Cutting length of recess-
ing tool
CUTWIDTH
Width of the recessing
tool
DCW
Oversize f. recessing tool
width
TYPE
Tool type
Tool data for button tools
Input parameters Use
ZL
Tool length (#1)
XL
Tool length (#2)
YL
Tool length (#3)
DZL Wear compensation ZL
DXL Wear compensation XL
DYL Wear compensation YL
RS
Cutting radius
TO
Tool orientation
Angle of orienta-
Orientation angle
tion
T-ANGLE
Tool angle
P-ANGLE
Point angle
TYPE
Tool type
HEIDENHAIN | TNC 640 | Conversational Programming User's Manual | 10/2017
Input
Required
Required
Optional
Optional
Optional
Optional
Required
Required
Required
Required
Required
Optional
Required
Input
Required
Required
Optional
Optional
Optional
Optional
Required
Required
Required
Required
Required
Required
16
693
