12
Programming tool lift-off with a defined vector
Example
18 FUNCTION LIFTOFF TCS X+0 Y+0.5 Z+0.5
With LIFTOFF TCS X Y Z, you define the lift-off direction as a vector
in the tool coordinate system. The control calculates the lift-off
height in each axis based on the tool path defined by the machine
tool builder.
Proceed as follows for the definition:

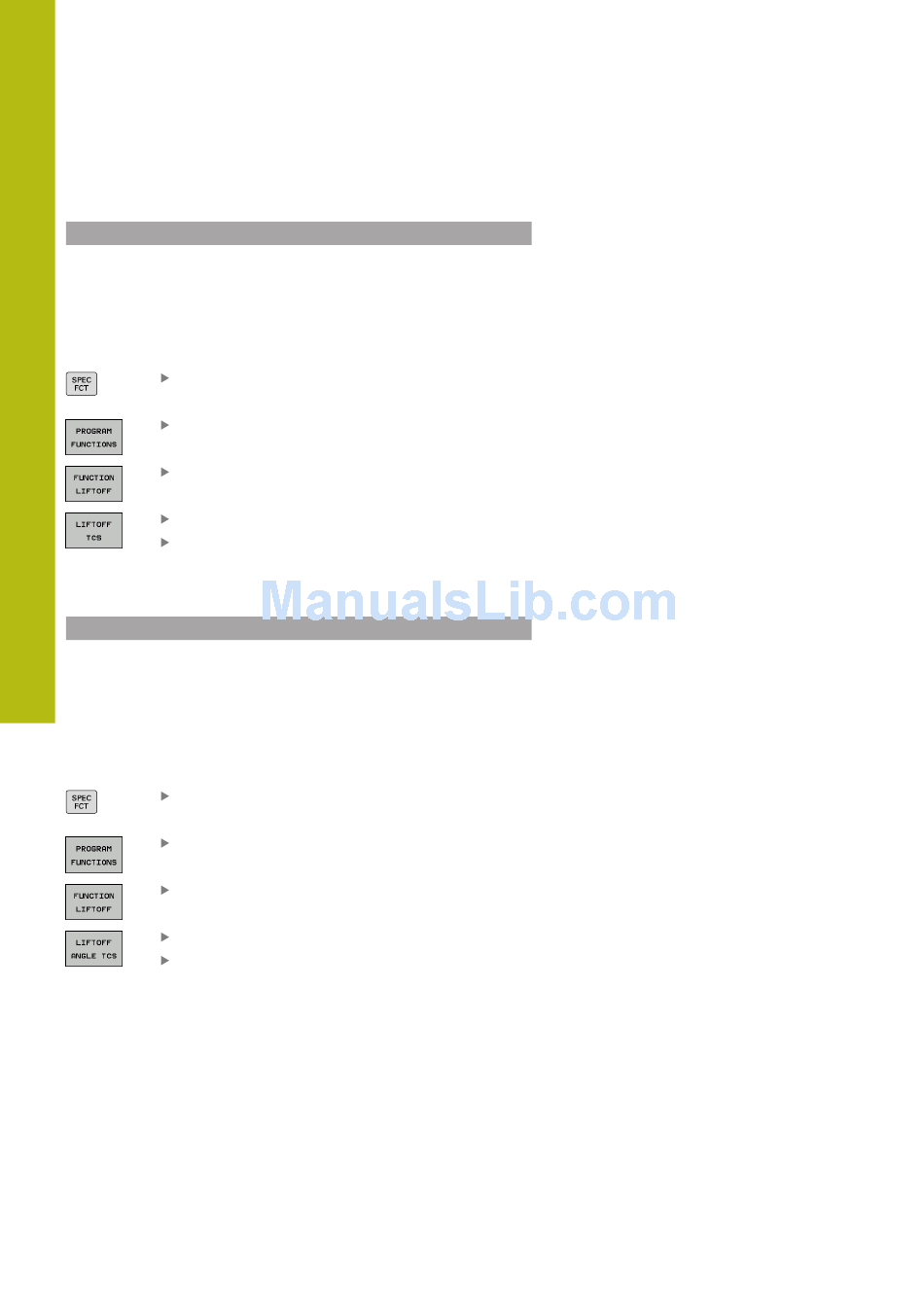

Show the soft-key row with special functions
Press the PROGRAM FUNCTIONS soft key
Press the FUNCTION LIFTOFF soft key
Press the LIFTOFF TCS soft key
Enter X, Y, and Z vector components
Programming tool lift-off with a defined angle
Example
18 FUNCTION LIFTOFF ANGLE TCS SPB+20
With LIFTOFF ANGLE TCS SPB, you define the lift-off direction
as a spatial angle in the tool coordinate system. This function is
particularly helpful for turning operations.
The SPB angle you enter describes the angle between Z and X. If
you enter 0°, the tool lifts off in the tool Z axis direction.
Proceed as follows for the definition:
Show the soft-key row with special functions
Press the PROGRAM FUNCTIONS soft key
Press the FUNCTION LIFTOFF soft key
Press the LIFTOFF ANGLE TCS soft key
Enter the SPB angle
582
Special Functions | Lift off tool at NC stop: FUNCTION LIFTOFF
