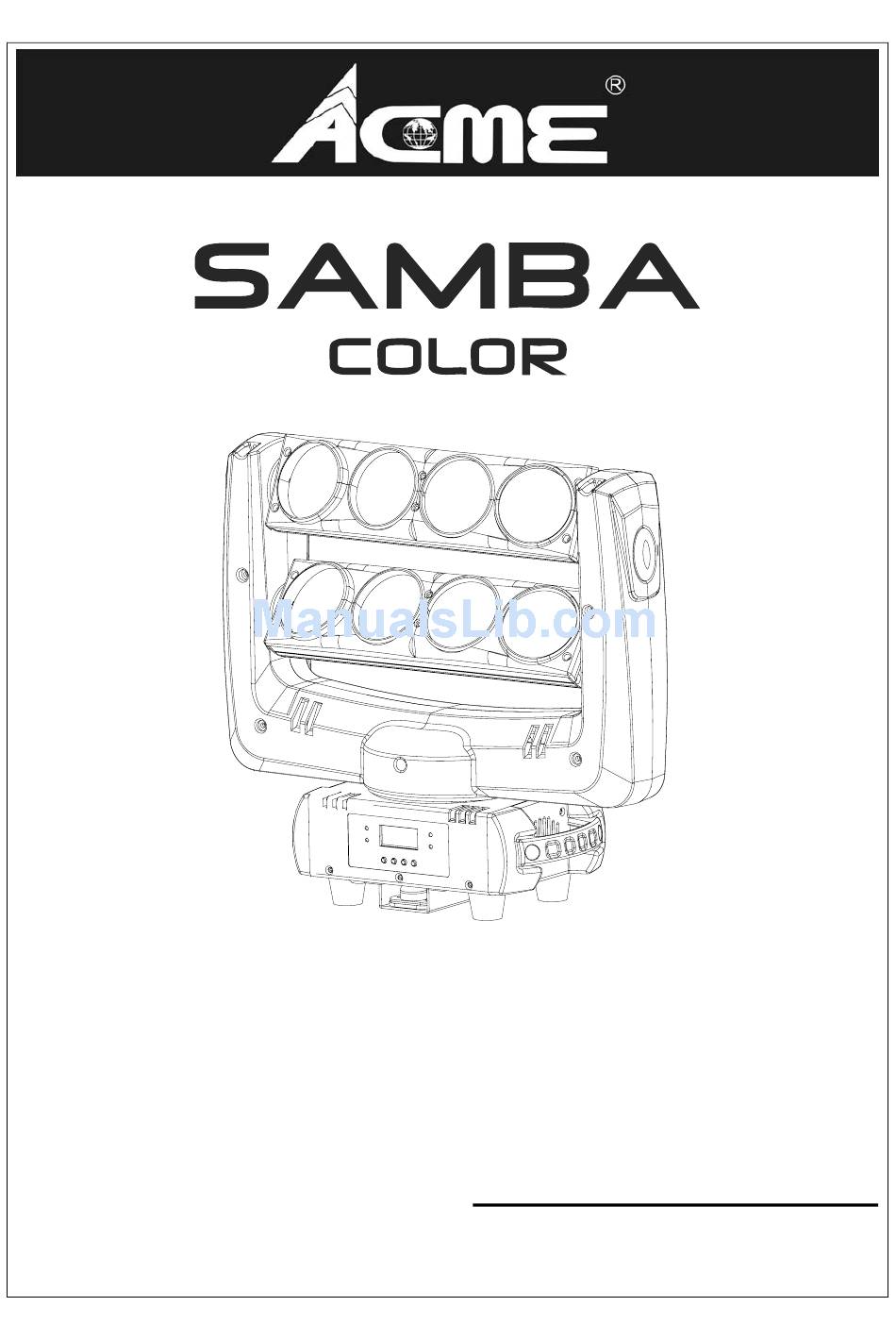

- Page 1 LED‐MB8FC User Manual Please read the instruction carefully before use ...
-
Page 2: Table Of Contents
CONTENTS 1. Safety Instructions....................2 2. Technical Specifications ....................3 3. How To Set The Unit ....................4 3.1 Front & Rear Panel....................4 3.2 Main Function ....................5 4. How to Control the Unit ..................10 4.1 Master/Slave Built In Preprogrammed Function ..........10 4.2 Easy Controller....................11 4.3 DMX Address Setting ..................11 5. DMX512 Configuration ...................12 6. DMX Connection ....................16 7. Troubleshooting......................17 8. Fixture Cleaning......................18 ... -
Page 3: Safety Instructions
1. Safety Instructions Please read the instructions carefully which includes important information about the installation, operation and maintenance. WARNING PLEASE keep this User Manual for future consultation. If you sell the fixture to another user, make sure that they also receive this instruction booklet. PLEASE unpack and check carefully there is no transportation damage before using the fixture. It’s important to ground the yellow/green conductor to earth in order to avoid electric shock. PLEASE disconnect mains power before servicing and maintenance. Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher than this. Unit’s surface temperature may reach up to 85℃. DO NOT touch the housing bare‐handed during its operation. ... -
Page 4: Technical Specifications
Caution: There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact your nearest dealer. Installation: The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. ... -
Page 5: How To Set The Unit
Dimension: 414 x 153 x 376mm 3. How To Set The Unit 3.1 Front & Rear Panel 1. Function Display: Used to show the various menus and the selected functions. 2. LED: DMX On DMX input present MASTER On Master Mode SLAVE On ... -
Page 6: Main Function
3. Button: MENU To select the programming functions DOWN To go backward in the selected functions UP To go forward in the selected functions ENTER To confirm the selected functions 4. POWER IN/OUT: Used to connect to supply power; 5. Only for remote control: Used to connect to the optional CA‐8 to control the unit for Stand by, Function and Mode function; 6. Fuse (T 3.15A): Used to protect the unit from the damage of over‐current; 7. DMX IN/OUT: For DMX512 links, use 3‐pin XLR plug cable to link the unit together; 3.2 Main Function To select any functions, press the MENU button until the required function is showing on the display. Select the function by pressing the ENTER button and the display will blink. Use the DOWN and UP button to change the mode. Once the required mode has been selected, press the ENTER button to setup to go back to the functions without any changes press the MENU button again. Hold and press the MENU button for one second or wait for one minute to exit the menu mode. The main functions are shown below: ... - Page 7 ...
- Page 8 DMX Address To select the DMX Address, press the ENTER button to show DMX ADDRESS on the display. Use the DOWN/UP button to adjust the address from 001 to 512. Once the address has been selected, press the ENTER button to setup, to go back to the functions without any changes press the MENU button again. Hold and press the MENU button for one second or wait for one minute to exit the menu mode. Channel Mode To select the Channel Mode, press the ENTER button to show the CHANNEL MODE on the display. Use the DOWN/UP button to select the 1, 7, 13, 37 channel modes. Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any changes press the MENU button again. Hold and press the MENU button for one second or wait for one minute to exit the menu mode. Slave Mode To select the Slave Mode, press the ENTER button to show SLAVE MODE on the display. Use the DOWN/UP button to select the Master, Slave 1, or Slave 2 modes. Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any changes press the MENU button again. Hold and press the MENU button for one second or wait for one minute to exit the menu mode. Show Mode To select the Show Mode, press the ENTER button to show the SHOW MODE on the display. Use the DOWN/UP button to select the Show 1, Show 2, Show 3 or Show 4 Mode. Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any changes press the MENU button again. Hold and press the MENU button for one second or wait for one minute to exit the menu mode. Sound State To select the Sound State, press the ENTER button to show SOUND STATE on the display. Use the DOWN/UP button to select the On (sound on) or Off (sound off) mode. Once the mode has been ...
- Page 9 selected, press the ENTER button to setup, to go back to the functions without any changes press the MENU button again. Hold and press the MENU button for one second or wait for one minute to exit the menu mode. Black Out To select the Black Out, press the ENTER button to show BALCKOUT on the display. Use the DOWN/UP button to select the Yes (blackout) or No (normal) mode. Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any changes press the MENU button again. Hold and press the MENU button for one second or wait for one minute to exit the menu mode. Back Light To select the Back Light, press the ENTER button to show BACK LIGHT on the display. Use the DOWN/UP button to select the On (LED on) or Off (LED off) mode. Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any changes press the MENU button again. Hold and press the MENU button for one second or wait for one minute to exit the menu mode. Pan Inverse To select the Pan Inverse, press the ENTER button to show PAN INVERSE on the display. Use the DOWN/UP button to select the Yes (pan inversion) or No (normal), press the ENTER button to setup. Back to the functions without any change press MENU button. Tilt 1 Inverse To select the Tilt 1 Inverse, press the ENTER button to show TILT 1 INVERSE on the display. Use the DOWN/UP button to select the Yes (tilt 1 inversion) or No (normal) mode. Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any changes press the MENU button again. Hold and press the MENU button for one second or wait for one minute to exit the menu mode. ...
- Page 10 Tilt 2 Inverse To select the Tilt 2 Inverse, press the ENTER button to show TILT 2 INVERSE on the display. Use the DOWN/UP button to select the Yes (tilt 2 inversion) or No (normal) mode. Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any changes press the MENU button again. Hold and press the MENU button for one second or wait for one minute to exit the menu mode. Lamp Inverse To select the Lamp Inverse, press the ENTER button to show LAMP INVERSE on the display. Use the DOWN/UP button to select the Yes (the leds will light up from right to left) or No (normal, the leds will light up from left to right). Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any changes press the MENU button again. Hold and press the MENU button for one second or wait for one minute to exit the menu mode. Auto Test To select the Auto Test, press the ENTER button to show AUTO TEST on the display and the unit will run a self‐test. To go back to the functions without any changes press the MENU button again. Hold and press the MENU button for one second or wait for one minute to exit the menu mode. Temp. To select the Temp., press the ENTER button to show TEMP. on the display. Use the DOWN/UP button to select the Temp. 1 (the temperature of movable bars 1) or Temp. 2 (the temperature of movables bar 2), press the ENTER button, and the display will show the temperature of the movable bar. To go back to the functions without any changes press the MENU button again. Hold and press the MENU button for one second or wait for one minute to exit the menu mode. Fixture Hours To select the Fixture Hours, press the ENTER button to show FIXTURE HOURS on the display and the display will show the number of working hours of the unit. To go back to the functions without any changes press the MENU button again. Hold and press the MENU button for one second or ...
-
Page 11: How To Control The Unit
wait for one minute to exit the menu mode. Software Version To select the Software Version, press the ENTER button to show SOFTWARE VERSION on the display and the display will show the version of software of the unit. To go back to the functions without any changes press the MENU button again. Hold and press the MENU button for one second or wait for one minute to exit the menu mode. Reset To select the Reset, press the ENTER button to show RESET on the display. Press the ENTER button and all channels of the unit will return to their standard position. 4. How to Control the Unit You can operate the unit in three ways: 1. By master/slave built‐in preprogram function 2. By easy controller 3. By DMX controller No need to turn the unit off when you change the DMX address, as new DMX address setting will be affected at once. Each time you turn the unit on, it will show “MB8FC” on the display. After that the unit will be ready to receive DMX signal or run the built in programs. 4.1 Master/Slave Built In Preprogrammed Function By linking the units together in master/slave, the first unit (the master) will control the other units (the slave) to give an automatic, sound activated, synchronized light show. This function is good when you want an instant show. To set the first unit as a master, press the ENTER button to show the SHOW MODE on the display. Now use the DOWN and UP buttons up to select the Show 1, Show 2, Show 3 or Show 4 and the master LED will be constantly lit and the sound LED will flash to the music. To set the unit as a slave, press the ENTER button to show SLAVE MODE on the display. Now use the DOWN and UP buttons up to select Slave 1 (normal) and Slave 2(2 light show) mode, and the SLAVE LED will be ... -
Page 12: Easy Controller
constantly lit. 4.2 Easy Controller The easy remote control is used only in master/slave mode. By connecting to the 1/4” microphone jack of the first unit, you will find that the remote controller on the first unit will control all the other units for Stand by, Function and Mode selection. . Blackout Blackout the unit 1. Sound Strobe (Full On) Select Show Function 2. Auto Strobe (Full On) Show 1‐4 Random Show Show Mode (LED OFF) (LED ON) 4.3 DMX Address Setting To set the DMX address, press the MENU button to show DMX Address on the display. Press the ENTER button and the display will blink. Use the DOWN and UP button to change the DMX address. Once the address has been selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again. Hold and press the MENU button for one second or wait for one minute to exit the menu mode. Please refer to the following diagram to address your DMX512 channel for the first 4 units. Channel Mode Unit 1 Unit 2 Unit 3 ... -
Page 13: Dmx512 Configuration
5. DMX512 Configuration 1/7 Channels Mode: ... - Page 14 13 Channels Mode: ...
- Page 15 37 Channels Mode: ...
- Page 16 ...
-
Page 17: Dmx Connection
6. DMX Connection 1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the input of the next fixture. The cable cannot be branched or split to a “Y” cable. Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the signal and shut down the system 2. The DMX output and input connectors are pass‐through to maintain the DMX circuit when one of the units’ power is disconnected. 3. At last fixture, the DMX cable has to be terminated with a terminator to reduce signal errors. Solder a 120‐ohm 1/4W resistor between pin 2(DMX‐) and pin 3(DMX+) into a 3‐pin XLR‐plug and plug it in the DMX‐output of the last fixture. 4. Each lighting fixture needs to have an address set to receive the data sent by the controller. The address number is between 0‐511 (usually 0 & 1 are equal to 1). 5. 3 pin XLR connectors are more popular than 5 pins XLR. 3 pin XLR: Pin 1: GND, Pin 2: Negative signal (‐), Pin 3: Positive signal (+) ... -
Page 18: Troubleshooting
7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The fixture does not work, no light 1. Check the connection of power and main fuse. 2. Measure the mains voltage on the main connector. B. Not responding to DMX controller 1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly. 2. If the DMX LED is on and no response to the channel, check the address settings and DMX polarity. 3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the fixture or the previous one. 4. Try to use another DMX controller. 5. -
Page 19: Fixture Cleaning
8. Fixture Cleaning The cleaning must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: moist, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the fixture. Clean with soft cloth using normal glass cleaning fluid. Always dry the parts carefully. Clean the external optics at least every 30 days. Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103‐1: 2009 ; EN55103‐2: 2009; EN62471: 2008; EN61000‐3‐2: 2006 + A1:2009 + A2:2009; EN61000‐3‐3: 2008. & Harmonized Standard EN 60598‐1:2008 + All:2009; EN 60598‐2‐17:1989 + A2:1991; EN 62471:2008; EN 62493: 2010 Safety of household and similar electrical appliances Part 1: General requirements ... - Page 20 Широкий ассортимент оборудования ACME на www.maxlight.ru Innovation, Quality, Performance ...
