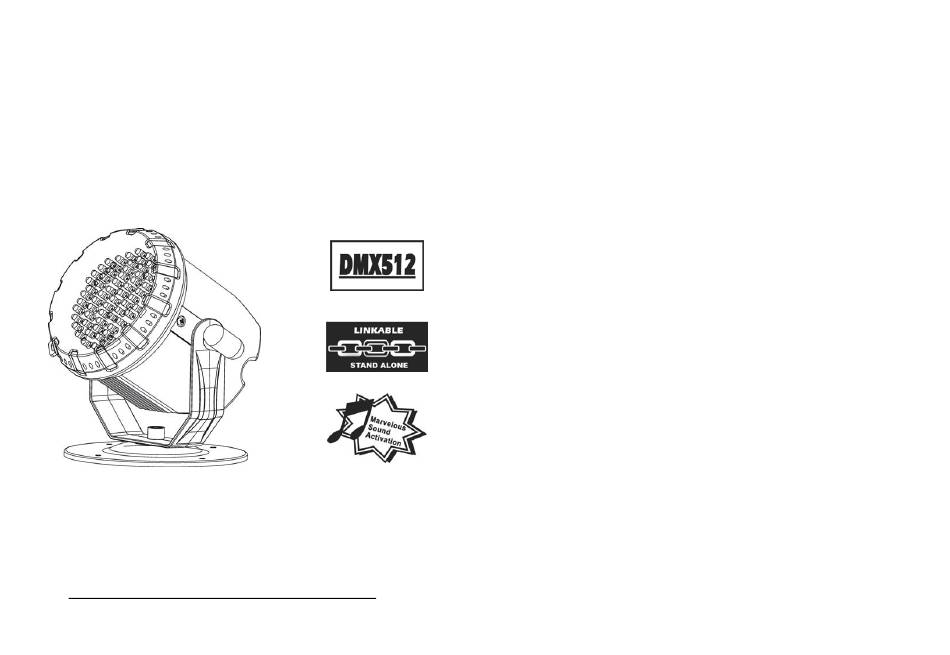

Page 1: Table Of Contents
1. Safety Instructions 2. Technical Specifications 3. Installation 4. DMX512 Address setting 5. How to control the fixture 6. DMX 512 Connections 7. Fixture Cleaning User Manual Широкий ассортимент оборудования ACME на www.maxlight.ru Please read the instructions carefully before use... -
Page 2: Technical Specifications
WARNING ¥ LED Color Spot：Red 24pcs, Green 33pcs, Blue 33pcs Color Wash：Red 31pcs, Green 30pcs, Blue 30pcs Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet. -
Page 3: Dmx512 Address Setting
B. By CA-T DMX TESTER 4. DMX512 Address Setting The fixture can be set the DMX address remotely by CA-T DMX TESTER. Please refer to 1. Each fixture needs to have an address set to receive the data sent by the controller. The the CA-T user manual to set the DMX address to the fixture. -
Page 4: How To Control The Fixture
B. Master/Slave operation 5. How to control the fixture The fixtures will allow you to link 16 fixtures together and operate without a controller. In Three ways to set-up the DMX address Master/Slave mode, the first fixture will control the others to give an automatic, sound A. -
Page 5: Dmx512 Connections
6. DMX512 Connections 7. Fixture Cleaning The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. The cleaning of internal must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics.
