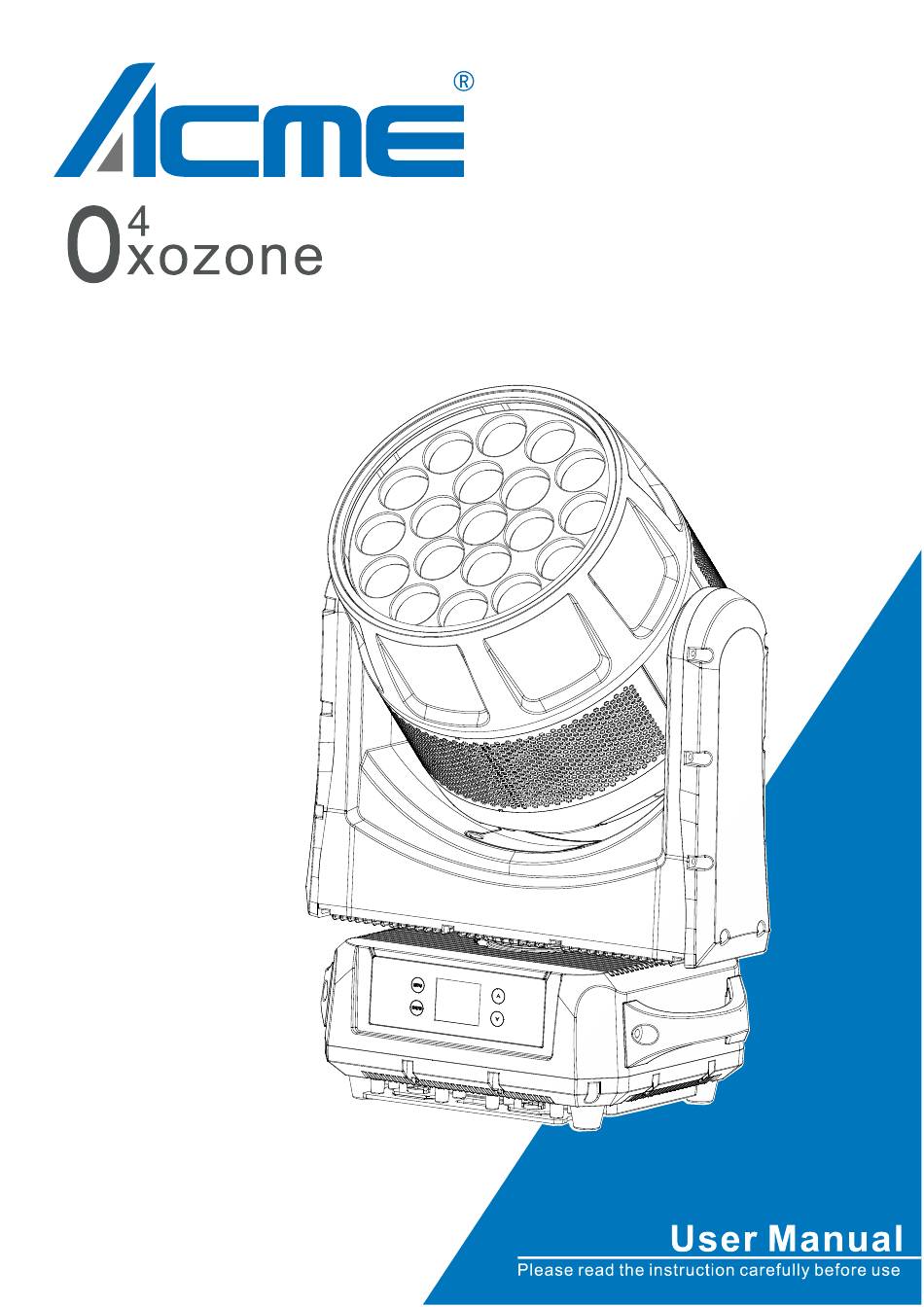

ACME 04XOZONE User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 04XOZONE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACME 04XOZONE

Summary of Contents for ACME 04XOZONE

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ..................2 2. Technical Specifications ................. 4 3. How To Set The Unit ..................5 3.1 Control Panel ................... 5 3.2 Main Function ..................6 3.3 Home Position Adjustment ..............14 4. Control By Universal DMX Controller ............17 4.1 DMX512 Connection ................

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires. ...

  • Page 5: Technical Specifications

    2. Technical Specifications Power Voltage: 100-240V~ 50/60Hz Power Consumption: 990W Light Source: 19x40W RGBW LED Zoom Range: 6°~40° Movement: Pan: 540° Tilt: 240° Pan/Tilt Resolution: 16bit Dimmer/Shutter: 0~100% smooth dimming, various strobe speed Control: DMX Channel: 17/21/86 Channels Control Mode: DMX512, RDM Firmware Upgrade: Update via DMX link or USB disk Construction: Display: Color display...

  • Page 6: How To Set The Unit

    Dimension/Weight: 384x275x524mm, 24kgs 15"x10.8"x20.6"in, 53lbs 384x275x566mm, 25.8kgs (Version with clamp) 15"x10.8"x22.3"in, 57lbs (Version with clamp) Photometric Diagram: 3. How To Set The Unit 3.1 Control Panel 1. Display: To show the various menus and the selected function...

  • Page 7: Main Function

    2. Button: MENU To enter into move backward or leave the menu To go backward to move up in the menu DOWN To go forward to move down in the menu ENTER To perform the desired functions 3. FIRMWARE UPGRADE: Used to upgrade fixture’s firmware 4.
  • Page 9 DMX Settings To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, DMX Channel Mode, No DMX Status or View DMX Value. DMX Address To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 001 to 496/492/427, press the ENTER button to store.
  • Page 10 Tilt Invert To select Tilt Invert, press the ENTER button to confirm. Use the UP/DOWN button to select No (normal) or Yes (tilt invert), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode. P/T Feedback To select P/T Feedback, press the ENTER button to confirm.
  • Page 11 White Balance To select White Balance, press the ENTER button to confirm. Use the UP/DOWN button to select Red, Green, Blue, Red1, Green1, Blue1, Red2, Green2, Blue2……Red19, Green19, Blue19, press the ENTER button to store. Use the UP/DOWN button to adjust the value from 125 to 255, press the ENTER button to store.
  • Page 12 Fixture Test To select Fixture Test, press the ENTER button to confirm, use the UP/DOWN button to select Auto Test or Manual Test. Auto Test Select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to automatically test itself.
  • Page 13 Temperature Select Temperature, press the ENTER button to confirm, fixture temperature will show on the display, press the MENU button to exit. Humidity Select Humidity, press the ENTER button to confirm, fixture humidity will show on the display, press the MENU button to exit. USB Upgrade File Select USB Upgrade File, press the ENTER button to confirm, USB upgrade file will show on the display, press the MENU button to exit.
  • Page 14 Zoom Reset To select Zoom Reset, press the ENTER button to confirm, use the UP/DOWN button to select No or Yes(the unit will run built-in program to reset zoom to its home position), press the ENTER button to store. Press the MENU button to exit. All Reset To select All Reset, press the ENTER button to confirm, use the UP/DOWN button to select No or Yes(the unit will run built-in program to reset all motors to their home positions), press ENTER...

  • Page 15: Home Position Adjustment

    3.3 Home Position Adjustment Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into offset mode to adjust the home position. Select the function by pressing the ENTER button. Use the UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return to the last menu.
  • Page 16 Zoom Enter offset mode, Select Zoom, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit. Red1 Enter offset mode, Select Red1, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 20 to 1000, press the ENTER...
  • Page 17 Blue1 Enter offset mode, Select Blue1, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 20 to 1000, press the ENTER button to store. Press the MENU button to exit. Blue2 Enter offset mode, Select Blue2, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 20 to 1000, press the ENTER...

  • Page 18: Control By Universal Dmx Controller

    4. Control By Universal DMX Controller 4.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 19: Address Setting

    4.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512 so that the units can receive DMX signal. Press the MENU button to enter menu mode, select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the present address will blink in the display, use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store.
  • Page 20 FUNCTION 000-079 Null 080-089 Dimmer Smooth 090-099 Dimmer Fast 100-139 Null 140-149 Pan/Tilt Reset 150-159 Zoom Reset 160-199 Null 200-209 Reset All 210-255 Null DIMMER 000-255 0%100% 000-255 DIMMER FINE STROBE 000-007 Close 008-015 Open 016-131 Strobe effect slow to fast 032-139 Open 140-181...
  • Page 21 050-054 6900K 055-058 6800K 059-063 6700K 064-067 6600K 068-072 6500K 073-076 6400K 077-081 6300K 082-085 6200K 086-090 6100K 091-094 6000K 095-099 5900K 100-103 5800K 104-108 5700K 109-112 5600K 113-117 5500K 118-121 5400K 122-126 5300K 127-130 5200K 131-135 5100K 136-139 5000K 140-144 4900K 145-148...
  • Page 22 008-011 Color1 012-015 Color2 016-019 Color3 020-023 Color4 024-027 Color5 028-031 Color6 032-035 Color7 036-039 Color8 040-043 Color9 044-047 Color10 048-051 Color11 052-055 Color12 056-059 Color13 060-063 Color14 064-067 Color15 068-071 Color16 072-075 Color17 076-079 Color18 080-083 Color19 084-087 Color20 088-091 Color21 092-095...
  • Page 23 One light is on randomly Tow lights are on randomly 251-255 Open PIXEL ROTATION 000-031 NULL 032-091 Rotate CW Fast  Slow 092-101 NULL 102-161 Rotate CCW Slow  Fast 162-255 NULL 21 Channels (Mode 2): CHANNEL VALUE FUNCTION 000-255 0°540°...
  • Page 24 232-239 Open 240-247 Random strobe effect slow to fast 248-255 Open 000-255 0%100% GREEN 000-255 0%100% BLUE 000-255 0%100% WHITE 000-255 0%100% RED2 000-255 0%100% GREEN2 000-255 0%100% BLUE2 000-255 0%100% WHITE2 000-255 0%100% RED3 000-255 0%100% GREEN3 000-255 0%100% BLUE3 000-255 0%100%...
  • Page 25 STROBE 000-007 Close 008-015 Open 016-131 Strobe effect slow to fast 032-139 Open 140-181 Fast close slow open slow to fast 182-189 Open 190-231 Fast open slow close slow to fast 232-239 Open 240-247 Random strobe effect slow to fast 248-255 Open DIMMER...
  • Page 26 WHITE4 000-255 0%100% RED5 000-255 0%100% GREEN5 000-255 0%100% BLUE5 000-255 0%100% WHITE5 000-255 0%100% RED6 000-255 0%100% GREEN6 000-255 0%100% BLUE6 000-255 0%100% WHITE6 000-255 0%100% RED7 000-255 0%100% GREEN7 000-255 0%100% BLUE7 000-255 0%100% WHITE7 000-255 0%100% RED8 000-255 0%100% GREEN8...
  • Page 27 GREEN10 000-255 0%100% BLUE10 000-255 0%100% WHITE10 000-255 0%100% RED11 000-255 0%100% GREEN11 000-255 0%100% BLUE11 000-255 0%100% WHITE11 000-255 0%100% RED12 000-255 0%100% GREEN12 000-255 0%100% BLUE12 000-255 0%100% WHITE12 000-255 0%100% RED13 000-255 0%100% GREEN13 000-255 0%100% BLUE13 000-255 0%100% WHITE13...
  • Page 28 WHITE15 000-255 0%100% RED16 000-255 0%100% GREEN16 000-255 0%100% BLUE16 000-255 0%100% WHITE16 000-255 0%100% RED17 000-255 0%100% GREEN17 000-255 0%100% BLUE17 000-255 0%100% WHITE17 000-255 0%100% RED18 000-255 0%100% GREEN18 000-255 0%100% BLUE18 000-255 0%100% WHITE18 000-255 0%100% RED19 000-255 0%100% GREEN19...
  • Page 29 Pixel of 16 CH:...

  • Page 32: Error Information

    5. Error Information Error codes are shown continuously in the display when the fixture fails and they will not disappear until the fixture is repaired. 1. Pan Reset Error Check whether the position of the pan where the magnet is installed falls off or is damaged. Check whether there are obstacles in the pan operating range.
  • Page 33 6. BaseFan1/2 cannot start Check whether the fan is not running. Check whether the fan leads are installed in place or disconnected. Check whether the fan is damaged. Check whether there are obstacles in the fan operating range. 7. BaseFan1/2 cannot stop Check whether the fan circuit on the motherboard breaks down.
  • Page 34 14. HeadFan1/2/3 speed too fast Check whether the fan is out of order. Check whether the fan circuit on the motherboard breaks down. 15. HeadFan1/2/3 speed too slow Check whether the fan is out of order. Check whether there are obstacles in the fan operating range. 16.

  • Page 35: Troubleshooting

    6. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connected power and the main fuse. 2.
  • Page 36 Innovation, Quality, Performance...
