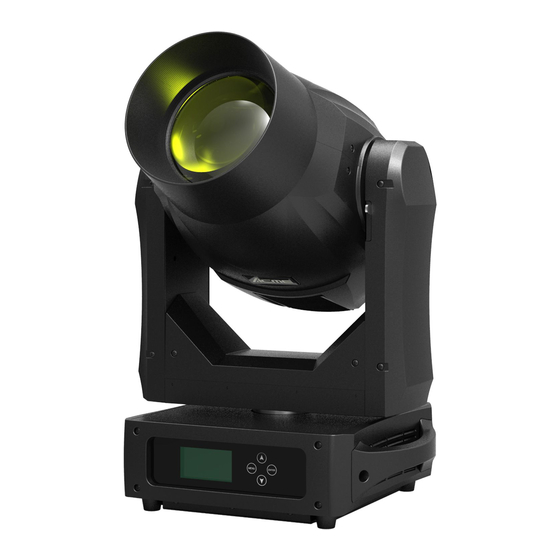

ACME Spartan Hybrid User Manual

Hide thumbs Also See for Spartan Hybrid:
Table of Contents

Advertisement

Quick Links

Download this manual
XP-20R BSW
User Manual
Please read the instruc on carefully before use

Advertisement

Table of Contents
loading

Related Manuals for ACME Spartan Hybrid

Summary of Contents for ACME Spartan Hybrid

  • Page 1 XP-20R BSW User Manual Please read the instruc on carefully before use...

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ..................2 2. Technical Specifications .................. 3 3. Description ..................... 5 3.1 Control Panel ..................5 4.2 Light Source .................... 7 5. How To Set The Unit ..................8 5.1 Main Function ..................8 5.2 Home Position Adjustment ..............17 5.3 Error Information ..................

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.

  • Page 4: Technical Specifications

    the mains power immediately. DO NOT operate in dirty or dusty environment, do clean fixtures regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid power wires together twist other cables. ...
  • Page 5 Light Source - PHILIPS MSD Platinum 20R ColorTemperature： - 7800K Battery backup display - Setting DMX address or other functions without connecting to mains power. - Battery for LCD display charges automatically when the fixtures connects to the mains power. - No need to change battery.

  • Page 6: Description

    Zoom - Motorized linear zoom system, zoom range : 2°- 7°.(BEAM Mode) 5°- 32°(SPOT Mode) 8°- 70°(WASH Mode) Protocols - DMX 512 - Date input/output: 3/5 Pin XLR socket Weight - 28.5Kg Dimension - 667× 335×393mm Photometrics Diagram Distance(m) ° °...
  • Page 7 1. Function Display: Shows the various menus and the selected functions. 2. Button: MENU To enter into move backward or leave the menu To go backward to move up in the menu DOWN To go to move down in the menu ENTER To perform the desired functions 3.

  • Page 8: Light Source

    4. Gobo and Lamp 4.1 Gobos DANGER! Install the gobos with the device switched off only. Unplug from mains before changing gobos! CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be opened! 4.2 Light Source PHILIPS MSD Platinum 20R For non replacable lightsources: "The light source of this luminaire is not replaceable;...

  • Page 9: How To Set The Unit

    and let the unit run at least five minutes to cool down before switching off the mains supply. Never handle the lamp or luminary when it is hot. Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured ...
  • Page 11 DMX Settings To select DMX Settings press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, DMX Channel Mode , DMX Retransmit or View DMX Value. DMX Address To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store.
  • Page 12 unit idle one minute to exit menu mode. View DMX Value To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to view the DMX channel value. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
  • Page 13 Focus Compensate To select Focus Compensate, press the ENTER button to confirm. Use the UP/DOWN button to select Disable, Near, Medium or Far, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode. BL.O.
  • Page 14 Mode 1(Optically Linear): The increase in light intensity appears to be linear as DMX value is increased. Mode 2(Square Law): Light intensity control is finer at low levels and coarser at high levels. Mode 3(Inverse Square Law): Light intensity control is coarser at low levels and finger at high levels. Mode 4(S-cure): Light intensity control is finger at low levels and high levels and coarser at medium levels.
  • Page 15 On (Lamp on while power on) or Off (Lamp off while power on), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode. Display Settings Enter menu mode, select Display Setting, press the ENTER button to confirm, use the UP/DOWN button to select Display Inverse, Backlight Intensity, Temperature Unit or Language.
  • Page 16 button to select Auto Test or Manual Test Auto Test Select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to automatically test pan, tilt, shutter, color, CMY, gobo, gobo rotation, prism, prism rotation, iris, frost, zoom, focus, dimmer and lamp on/off.
  • Page 17 Temperature Select Temperature, press the ENTER button to confirm, fixture temperature will show on the display, press the MENU button to exit. lamp State Select Lamp State, press the ENTER button to confirm, fixture lamp state will show on the display, press the MENU button to exit.

  • Page 18: Home Position Adjustment

    All — Reset All Select All, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the unit will run built-in program to reset all motors to their home positions) or No, press ENTER button to store. Press the MENU button to exit. Special Functions Factory Settings Select Factory Settings, press the ENTER button to confirm, use the UP/DOWN button to select...
  • Page 19 Tilt Shu er Color 1 Color 2 Color 3 Rota ng Gobo -128 R-Gobo Sta c Gobo Prism 1 RPrism 1 Prism 2 RPrism 2 Frost Focus Zoom Anima on Pan—pan home position adjustment Enter offset mode, Select Pan, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store.
  • Page 20 Enter offset mode, Select Shutter, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit. Color 1—Color 1 home position adjustment Enter offset mode, Select Color 1, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button...
  • Page 21 on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit. R-Prism 1—R-Prism 1 rotation home position adjustment Enter offset mode, Select R-Prism 1, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store.

  • Page 22: Error Information

    button to store. Press the MENU button to exit. 5.3 Error Information Lamp Startup Fail It appears when there is no lamp or some wires are damaged. Temperature Sense Error It appears when temperature check board is damaged. Lamp Too Hot Power Off It appears when temperature is detected higher than 110℃.

  • Page 23: Control By Universal Dmx Controller

    6. Control By Universal DMX Controller 6.1 Connection ATTENTION Termination reduces signal errors and to avoid signal transmission problems and interference. It is always advisable to connect a DMX terminal (Resistance 120 ohm 1/4W between pin2 (DMX-) and pin3 (DMX+) of the last fixture). 1.

  • Page 24: Address Setting

    the units’ power is disconnected. 4. Each lighting unit needs to have a DMX address to receive the data by the controller. The address number is between 0-511 (usually 0 & 1 are equal to 1). 5. The end of the DMX 512 system should be terminated to reduce signal errors. 6.
  • Page 25 34 Channels (Mode 1): CHANNEL Value FUNCTION Cyan color wheel： 000-255 Linear Cyan movement Magenta color wheel： 000-255 Linear Magenta movement Yellow color wheel： 000-255 Linear Yellow movement Color 1： 000-027 Empty position 028-049 Empty + Soft Filter 050-079 Soft Filter 080-099 Soft Filter + Lavender 100-128...
  • Page 26 004-103 Strobe at linearly variable frequency From low to high 104-107 Light ON 108-207 Pulsation at linearly variable speed From slow to fast 208-212 Light ON 213-225 Random Strobe at low frequency 226-238 Random Strobe at medium frequency 239-251 Random Strobe at high frequency 252-255 Light ON Dimmer...
  • Page 27 176-181 Gobo4 shaking slow to fast) 182-186 Gobo5 shaking slow to fast 187-191 Gobo6 shaking slow to fast 192-197 Gobo7 shaking slow to fast 198-202 Gobo8 shaking slow to fast 203-207 Gobo9 shaking slow to fast 208-214 Gobo10 shaking slow to fast 215-218 Gobo11 shaking slow to fast 219-223...
  • Page 28 GOBO Rotation： 000-021 Gobo indexing: 0° to 90° range 022-042 Gobo indexing:90° to 180° range 043-063 Gobo indexing:180° to 270° range 064-084 Gobo indexing:270° to 360° range 085-105 Gobo indexing:360° to 450° range 106-127 Gobo indexing:450° to 540° range 128-190 Continuous gobo rotation at linearly variable speed From fast to slow Stop rotation...
  • Page 29 192-255 Wash Mode 000-255 Pan： 0° - 540° Pan Fine： 000-255 Fine Pan positioning 000-255 Tilt 0° – 244° Tilt Fine： 000-255 Fine Tilt positioning Function： 000-011 Unused range 012-024 Fast Pan/Tilt Speed(default) 025-037 Normal Pan/Tilt Speed 038-114 Unused range 115-127 Soft Filter AUTO 128-140...
  • Page 30 Pan-Tilt Time： 000-255 Pan-Fine Pan-Tilt-Fine Tilt Color Time： 000-255 Cyan-Magenta-Yellow Beam Time： 000-255 Dimmer-Frost-Prism-Focus-Zoom Gobo Time： 000-255 Static Gobo-Rotating Gobo 30 CHANNELS (Mode 2): CHANNEL Value Function 000-255 Cyan color wheel: Linear Cyan movement 000-255 Magenta color wheel Linear Magenta movement 000-255 Yellow color wheel Linear Yellow movement...
  • Page 31 050-076 Light Green 077-099 Light Green + Pink 100-128 Pink 129-149 Pink + Aquamarine 150-180 Aquamarine 181-199 Aquamarine + Dark Orange 200-230 Dark Orange 231-254 Dark Orange + Light Orange Light Orange Strobe: 000-003 Light OFF 004-103 Strobe at linearly variable frequency From low to high 104-107 Light ON...
  • Page 32 069-071 Gobo18 072-113 Continuous gobo wheel clockwise rotation at Linearly variable speed from fast(60 rpm)to slow(5 rpm) 114-117 Stop rotation 118-159 Continuous gobo wheel counter-clockwise rotation at linearly variable speed from slow(5 rpm)to fast(60 rpm) 160-165 Gobo1 shaking slow to fast 166-170 Gobo2 shaking slow to fast 171-175...
  • Page 33 172-192 Gobo3 shaking slow to fast 193-213 Gobo4 shaking slow to fast 214-234 Gobo5 shaking slow to fast 235-255 Gobo6 shaking slow to fast GOBO Rotation: 000-021 Gobo indexing:0° to 90° range 022-042 Gobo indexing:90° to 180° range 043-063 Gobo indexing:180° to 270° range 064-084 Gobo indexing:270°...
  • Page 34 Frost blades move from no-diffusion to maximum diffusion in 1.11 seconds at maximum speed Focus Fine 000-255 Fine Focus positioning Beam Mode 000-127 Zoom/Autofocus mode 128-191 Beam Mode 192-255 Wash Mode 000-255 0° - 540° Pan Fine 000-255 Fine Pan positioning Tilt 000-255 0°...
  • Page 35 136-155 Zoom in Fade 156-175 Zoom out Fade 176-195 Zoom in fade out fade(no black) 196-215 Zoom in fade(no black) 216-225 Zoom out fade(no black) 226-255 Standby 27 CHANNELS (Mode 3): CHANNEL Value Function 000-255 0° – 540° Pan Fine 000-255 Fine Pan positioning Tilt...
  • Page 36 000-255 Magenta color wheel Linear Magenta movement 000-255 Yellow color wheel Linear Yellow movement Color 1 000-027 Empty position 028-049 Empty + Soft Filter 050-079 Soft Filter 080-099 Soft Filter + Lavender 100-128 Lavender 129-149 Lavender + CTO 3200K 150-180 CTO 3200K 181-203 CTO 3200K + CTO 2500K...
  • Page 37 048-055 Gobo6 056-063 Gobo7 064-094 Continuous gobo wheel clockwise rotation 095-098 Stop Rotation 099-129 Continuous gobo wheel counter-clockwise rotation 130-147 Gobo1 shaking slow to fast 148-165 Gobo2 shaking slow to fast 166-183 Gobo3 shaking slow to fast 184-201 Gobo4 shaking slow to fast 202-219 Gobo5 shaking slow to fast 220-237...
  • Page 38 069-071 Gobo18 072-113 Continuous gobo wheel clockwise rotation at Linearly variable speed from fast(60 rpm)to slow(5 rpm) 114-117 Stop rotation 118-159 Continuous gobo wheel counter-clockwise rotation at linearly variable speed from slow(5 rpm)to fast(60 rpm) 160-165 Gobo1 shaking slow(24 bpm)to fast(600 bpm) 166-170 Gobo2 shaking slow(24 bpm)to fast(600 bpm) 171-175...
  • Page 39 021-042 Prism indexing:90° to 180° range 042-063 Prism indexing:180° to 270° range 063-084 Prism indexing:270° to 360° range 084-105 Prism indexing:360° to 450° range 105-127 Prism indexing:450° to 540° range 128-190 Continuous gobo rotation at linearly variable speed From fast(43rpm) to slow(1.1 rph) 191-192 Stop rotation 193-255...
  • Page 40 213-225 Random Strobe at low frequency 226-238 Random Strobe at medium frequency 239-251 Random Strobe at high frequency 252-255 Light ON Dimmer 000-255 Light output linearly increase from no-light to Maximum brightness. Dimmer blades move from totally closed to totally open in 0.02 seconds at Maximum speed.
  • Page 41 050-076 Light Green 077-099 Light Green + Pink 100-128 Pink 129-149 Pink + Aquamarine 150-180 Aquamarine 181-199 Aquamarine + Dark Orange 200-230 Dark Orange 231-254 Dark Orange + Light Orange Light Orange Strobe 000-003 Light OFF 004-103 Strobe at linearly variable frequency From low to high 104-107 Light ON...
  • Page 42 069-071 Gobo18 072-113 Continuous gobo wheel clockwise rotation at Linearly variable speed from fast(60 rpm)to slow(5 rpm) 114-117 Stop rotation 118-159 Continuous gobo wheel counter-clockwise rotation at linearly variable speed from slow(5 rpm)to fast(60 rpm) 160-165 Gobo1 shaking slow to fast 166-170 Gobo2 shaking slow to fast 171-175...
  • Page 43 191-192 Stop rotation 193-255 Continuous gobo rotation at linearly variable speed From slow to fast Fine Gobo Rotation 000-255 Fine Gobo Indexing Prism Insertion： 000-010 Prism out 011-132 Prism 1 into the light beam 133-223 Prism 2 into the light beam 224-255 Prism 1/ 2 into the light beam Prisms Rotation...

  • Page 44: Troubleshooting

    128-255 Complete Reset Lamp Control 000-025 Unused range 026-100 Lamp OFF 101-255 Lamp ON 7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1.
  • Page 45 3. Loosen the motor gear (C). 4. Loosen the screws (D) 5. Unplug all the connect wires over the belt. 6. Change a new belt (E), put the belt around the axis gear and motor gear. 7. Plug all the connect wires back upon the belt. 8.

  • Page 46: Maintenance And Cleaning

    8. Maintenance and Cleaning Maintenance: Ballast A. As the pictures shown above, please replace the cable or cable joints immediately once they’ve turned yellow. B. Do maintain the fixtures every two months and make sure that all the screws and terminals have been locked firmly to make sure the normal performance of the fixtures.
  • Page 47 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009+A1:2012; EN55103-2: 2009; EN61000-3-2: 2014; EN61000-3-3: 2013. & Harmonized Standard EN 60598-1:2015;...
  • Page 48 Innovation, Quality, Performance...
