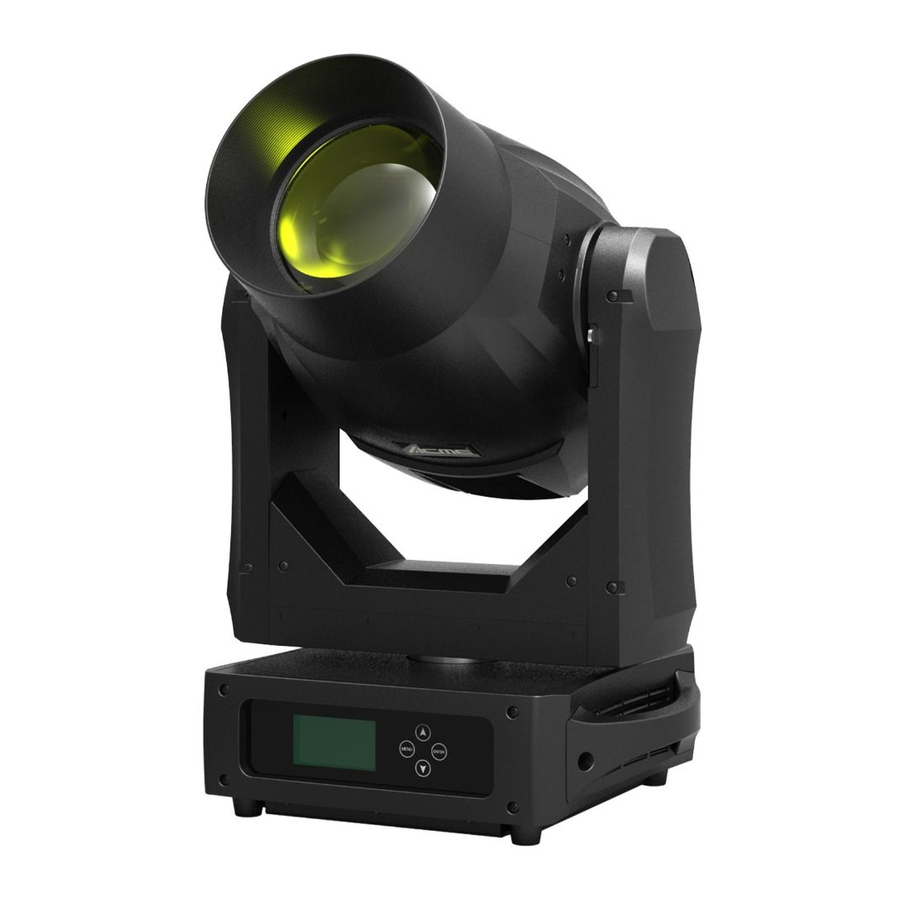

XP-470 BSW

User Manual

Please read the instruction carefully before use

Advertisement

Table of Contents
loading

Related Manuals for ACME XP-470 BSW

Summary of Contents for ACME XP-470 BSW

  • Page 1: User Manual

    XP-470 BSW User Manual Please read the instruction carefully before use...

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ......................2 2. Technical Specifications ....................3 3. Description .......................... 5 3.1 Control Panel ......................... 5 4. Gobo and Lamp ........................6 4.1 Gobos ............................6 4.2 Light Source ........................... 7 5. How To Set The Unit ......................7 5.1 Main Function ........................

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.

  • Page 4: Technical Specifications

    Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut off  the mains power immediately. DO NOT operate in dirty or dusty environment, do clean fixtures regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock. ...
  • Page 5 Fuse - T 10A Light Source - PHILIPS MSD Platinum 20R Battery backup display - Setting DMX address or other functions without connecting to mains power. - Battery for LCD display charges automatically when the fixtures connects to the mains power. - No need to change battery.

  • Page 6: Description

    Zoom - Motorized linear zoom system, zoom range : 0°- 50°. Cool - Fan cooled Protocols - DMX 512 - Date input/output: 3/5 Pin XLR socket Weight - 28.5Kg Dimension 400× 335 × 667mm 3. Description 3.1 Control Panel Front view Rear view 1.

  • Page 7: Gobo And Lamp

    DMX 512 operation, use 5-pin XLR cable to link the unit and DMX controller. 5. DMX IN: DMX 512 link, use 3-pin XLR cable to link the unit and DMX controller. 6. DMX OUT: DMX 512 operation, use 5-pin XLR cable to link the next units. 7.

  • Page 8: Light Source

    CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be opened! 4.2 Light Source PHILIPS MSD Platinum 20R For non replacable lightsources: "The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced".
  • Page 9 DMX Address 28 Channel DMX Settings 24 Channel Mode 21 Channel 20 Channel View DMX Value 0~255 Pan Inverse Tilt Inverse P/T Feedback Fast Fixture Settings P/T Speed Slow Disable Near Focus Compensate Medium MENU Bl.o. P/T Moving Bl.o. Color change Bl.o.

  • Page 10: Reset Function

    Display Inverse Backlight Auto Off Backlight Intensity DisplaySettings 1~10 ℃ Temperature Unit ℉ English Language Chinese Auto Test Fixture Test Manual Test Fixture Use Hour Exit Light Use Hour Reset Lamp Temperature Temperature Fixture Information MENU CPU Temperature Diver State Lamp Voltage Lamp State Temp Condition...
  • Page 11 DMX Settings To select DMX Settings press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, DMX Channel Mode or View DMX Value. DMX Address To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store.
  • Page 12 Tilt Inverse To select Tilt Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No (normal) or Yes (tilt inverse), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode. P/T Feedback To select P/T Feedback, press the ENTER button to confirm.
  • Page 13 BL.O.Gobo Moving —Blackout while Gobo moving To select BL.O. Gobo Moving, press the ENTER button to confirm. Use the UP/DOWN button to select No (normal while gobo moving) or Yes (blackout while gobo moving), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
  • Page 14 Lamp Settings To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select Lamp On/Off, or State/Power on.. Lamp On/Off —Turn on/off the lamp To select Lamp On/Off, press the ENTER button to confirm. Use the UP/DOWN button to select On (lamp on) or Off (lamp off), press the ENTER button to store.
  • Page 15 Backlight Intensity Select Backlight Intensity, press the ENTER button to confirm, present mode will blink on the display, use the UP/DOWN button to adjust backlight intensity from 1 (dark) to 10 (bright), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
  • Page 16 (All channels value will become 0 after exiting Manual Test menu) Fixture Information Enter menu mode, select Fixture Information, press the ENTER button to confirm, use the UP/DOWN button to select Fixture use hour, Light use hour,Temperature,Lamp State,Fan State or Firmware Version. Fixture use hour Select Fixture use hour, press the ENTER button to confirm, fixture use time will show on the display, press the MENU button to exit.

  • Page 17: Home Position Adjustment

    display, press the MENU button back to exit. Reset Functions Enter menu mode, select Reset Function, press the ENTER button to confirm, use the UP/DOWN button to select Pan/Tilt, Effect or All. Pan﹠Tilt —Reset Pan/Tilt Select Pan﹠Tilt, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the unit will run built-in program to reset pan and tilt to their home positions) or No(normal), press the ENTER button to store.
  • Page 18 button to choose the submenu, press the ENTER button to store and automatically return to the last menu. Press MENU button to exit. Tilt Strobe Color Soft Filte Rotating Gobo R-Gobo -128 Offset Static Gobo Prism 1 RPrism 1 Prism 2 RPrism 2 Forst Focus...
  • Page 19 the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit. Shutter—Shutter home position adjustment Enter offset mode, Select Shutter, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store.
  • Page 20 button to store. Press the MENU button to exit. Prism 1—Prism 1 home position adjustment Enter offset mode, Select Prism 1, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store.

  • Page 21: Error Information

    Animation—Animation home position adjustment Enter offset mode, Select Animation, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit. 5.3 Error Information Lamp Startup Fail It appears when there is no lamp or some wires are damaged.

  • Page 22: Control By Universal Dmx Controller

    They may appear when turning on or resetting the unit, for some parts such as board P.C are damaged. Please contact the qualified maintenance. 6. Control By Universal DMX Controller 6.1 Connection ATTENTION Termination reduces signal errors and to avoid signal transmission problems and interference.

  • Page 23: Address Setting

    high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the signal and shut down the system. 3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one of the units’ power is disconnected. 4.
  • Page 24 1. The unit will maintain the last condition until reset if you cut-off the DMX signal. 2. For the channel Function, keep the value for about 5 seconds, then the corresponding function will take into effect. 28Channels (Mode 1): CHANNEL Value FUNCTION Color：...
  • Page 25 Fine Dimmer positioning Static GOBO Change： 000-003 Empty position 004-007 Gobo1 008-011 Gobo2 012-015 Gobo3 016-018 Gobo4 019-022 Gobo5 023-026 Gobo6 027-030 Gobo7 031-034 Gobo8 035-037 Gobo9 038-041 Gobo10 042-045 Gobo11 046-049 Gobo12 050-053 Gobo13 054-055 Gobo14 056-060 Gobo15 061-064 Gobo16 065-068 Gobo17...
  • Page 26 000-018 Empty position 019-037 Gobo1 038-055 Gobo2 056-074 Gobo3 075-092 Gobo4 093-111 Gobo5 112-129 Gobo6 130-150 Gobo1 shaking slow to fast 151-171 Gobo2 shaking slow to fast 172-192 Gobo3 shaking slow to fast 193-213 Gobo4 shaking slow to fast 214-234 Gobo5 shaking slow to fast 235-255 Gobo6 shaking slow to fast...
  • Page 27 diffusion in 0.02 seconds at maximum speed Zoom： 000-255 Zoom linearly moves from narrow to wide beam Focus： 000-255 Frost move linearly into the light beam Frost blades move from no-diffusion to maximum diffusion in 1.11 seconds at maximum speed Focus Fine：...
  • Page 28 008-015 Standby 016-035 Zoom in fade (black) 036-055 Zoom out fade(black) 056-075 Zoom in fade out fade(no black) 076-095 Zoom in fade(no black) 096-115 Zoom out fade(no black) 116-135 Standby 136-155 Zoom in Fade 156-175 Zoom out Fade 176-195 Zoom in fade out fade(no black) 196-215 Zoom in fade(no black) 216-225...
  • Page 29 Strobe 000-003 Light OFF 004-103 Strobe at linearly variable frequency From low to high 104-107 Light ON 108-207 Pulsation at linearly variable speed From slow to fast 208-212 Light ON 213-225 Random Strobe at low frequency 226-238 Random Strobe at medium frequency 239-251 Random Strobe at high frequency 252-255...
  • Page 30 166-170 Gobo2 shaking slow to fast 171-175 Gobo3 shaking slow to fast 176-181 Gobo4 shaking slow to fast) 182-186 Gobo5 shaking slow to fast 187-191 Gobo6 shaking slow to fast 192-197 Gobo7 shaking slow to fast 198-202 Gobo8 shaking slow to fast 203-207 Gobo9 shaking slow to fast 208-214...
  • Page 31 Prism Insertion: 000-010 Prism out 011-132 Prism 1 into the light beam 133-223 Prism 2 into the light beam 224-255 Prism 1 2 into the light beam Prisms Rotation： 000-021 Prism indexing:0 to 90 range 021-042 Prism indexing:90 to 180 range 042-063 Prism indexing:180 to 270 range 063-084...
  • Page 32 063-114 Unused range 115-127 Soft Filter AUTO 128-140 Soft Filter Disable 141-153 Soft Filter Enable 154-166 Focus Compensate Disable 167-179 Focus Compensate Near 180-192 Focus Compensate Medium 193-205 Focus Compensate Far 206-255 Unused range Reset 000-025 Unused range 026-076 Zoom Reset 077-127 Pan/Tilt Reset 128-255...
  • Page 33 Fast Function 000-009 No Function 010-014 Reset All 015-029 Reset Effect 030-034 Reset XY 035-039 No Function 040-044 Lamp On 045-049 Lamp Off 050-059 No Function 060-064 Dimmer Curve Square Law 065-069 Dimmer Curve Inverse Square Law 070-074 Dimmer Curve Line 075-079 Dimmer Curve S 080-084...
  • Page 34 000-007 Empty position 008-015 Gobo1 016-023 Gobo2 024-031 Gobo3 032-039 Gobo4 040-047 Gobo5 048-055 Gobo6 056-063 Gobo7 064-094 Continuous gobo wheel clockwise rotation 095-098 Stop Rotation 099-129 Continuous gobo wheel counter-clockwise rotation 130-147 Gobo1 shaking slow to fast 148-165 Gobo2 shaking slow to fast 166-183 Gobo3 shaking slow to fast 184-201...
  • Page 35 046-049 Gobo12 050-053 Gobo13 054-056 Gobo14 057-060 Gobo15 061-064 Gobo16 065-068 Gobo17 069-071 Gobo18 072-113 Continuous gobo wheel clockwise rotation at Linearly variable speed from fast(60 rpm)to slow(5 rpm) 114-117 Stop rotation 118-159 Continuous gobo wheel counter-clockwise rotation at linearly variable speed from slow(5 rpm)to fast(60 rpm) 160-165 Gobo1 shaking slow(24 bpm)to fast(600 bpm)
  • Page 36 193-255 Stop rotation Continuous gobo rotation at linearly variable speed From slow(1.1 rph) to fast(43rpm) Prisms 2 Rotation 000-021 Prism indexing:0 to 90 range 021-042 Prism indexing:90 to 180 range 042-063 Prism indexing:180 to 270 range 063-084 Prism indexing:270 to 360 range 084-105 Prism indexing:360 to 450 range 105-127...
  • Page 37 239-251 Random Strobe at high frequency 252-255 Light ON Dimmer 000-255 Light output linearly increase from no-light to Maximum brightness. Dimmer blades move from totally closed to totally open in 0.02 seconds at Maximum speed. 20 CHANNELS (BEAM Channel): CHANNEL Value Function Color...
  • Page 38 closed to totally open in 0.02 seconds at Maximum speed. Dimmer Fine 000-255 Fine Dimmer positioning Static GOBO Change 000-003 Empty position 004-007 Gobo1 008-011 Gobo2 012-015 Gobo3 016-018 Gobo4 019-022 Gobo5 023-026 Gobo6 027-030 Gobo7 031-034 Gobo8 035-037 Gobo9 038-041 Gobo10 042-045...
  • Page 39 Rotating GOBO Select 000-016 Empty position 017-032 Gobo1 033-048 Gobo2 049-064 Gobo3 065-081 Gobo4 082-097 Gobo5 098-113 Gobo6 114-129 Gobo7 130-147 Gobo1 shaking slow to fast 148-165 Gobo2 shaking slow to fast 166-183 Gobo3 shaking slow to fast 184-201 Gobo4 shaking slow to fast 202-219 Gobo5 shaking slow to fast 220-237...

  • Page 40: Troubleshooting

    Frost 000-255 Frost move linearly into the light beam Frost blades move from no-diffusion to maximum diffusion in 0.02 seconds at maximum speed Focus 000-255 Frost move linearly into the light beam Frost blades move from no-diffusion to maximum diffusion in 1.11 seconds at maximum speed Pan：...
  • Page 41 1. DMX LED should be on. If not, check DMX connectors, cables to see if they are linked properly. 2. If the DMX LED is on and no response to the channel, check the address settings and DMX polarity. 3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the unit or the previous one.

  • Page 42: Maintenance And Cleaning

    F. If The tilt belt is broken 1. Turn off the mains power. 2. Loosen all the screws (A) and open the right arm cover (B). 3. Loosen the screws (C) that fix the bridge. 4. Change a new belt (D). Please adjust the tension of the belt properly. Note: do not fix the belt too tight as it is can easily rupture.
  • Page 43 Ballast A. As the pictures shown above, please replace the cable or cable joints immediately once they’ve turned yellow. B. Do maintain the fixtures every two months and make sure that all the screws and terminals have been locked firmly to make sure the normal performance of the fixtures. Negligence of maintenance would cause malfunction of the fixture.
  • Page 44 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009+A1:2012; EN55103-2: 2009; EN61000-3-2: 2014; EN61000-3-3: 2013. & Harmonized Standard EN 60598-1:2015;...
