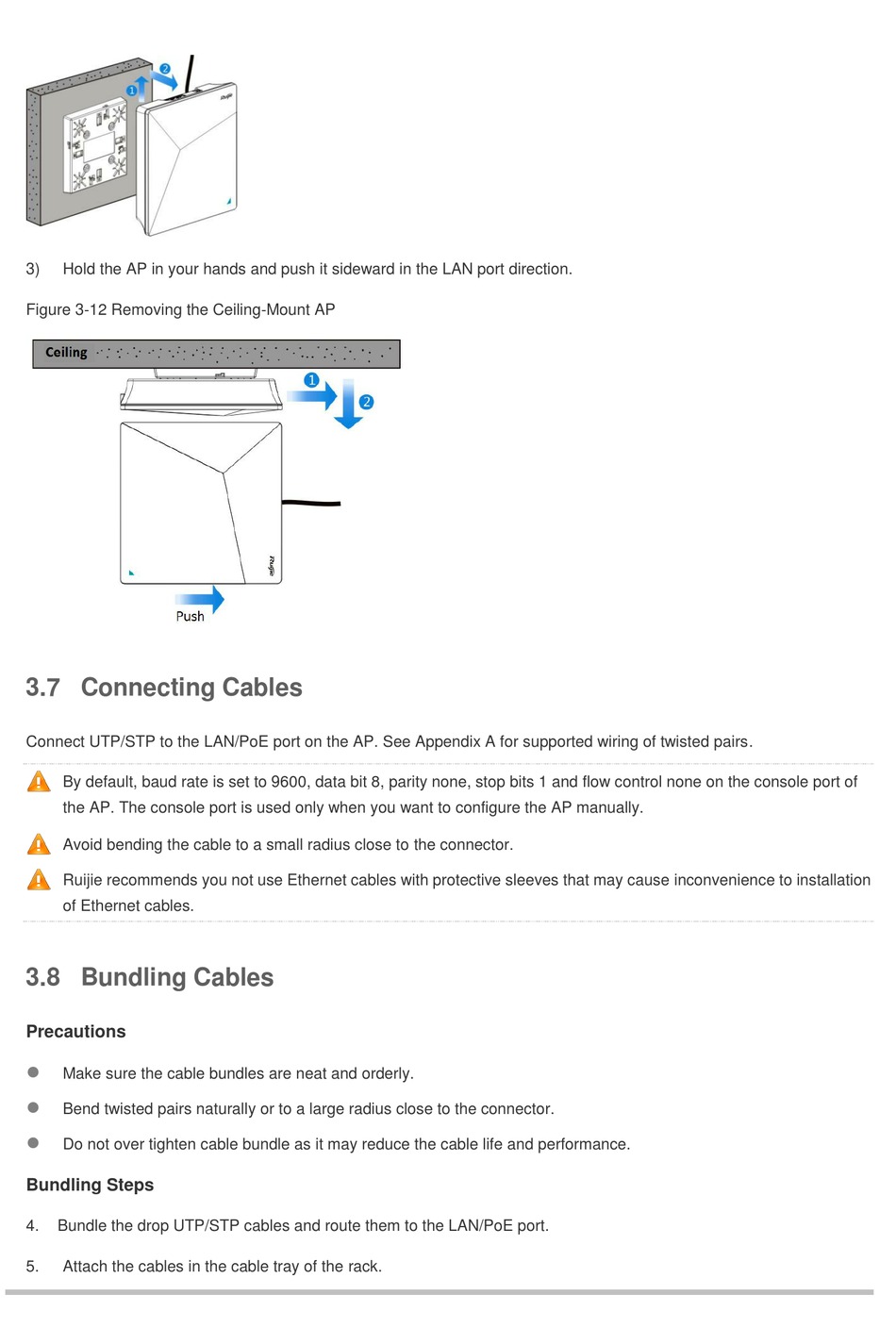

3) Hold the AP in your hands and push it sideward in the LAN port direction.
Figure 3-12 Removing the Ceiling-Mount AP

3.7 Connecting Cables

Connect UTP/STP to the LAN/PoE port on the AP. See Appendix A for supported wiring of twisted pairs.
By default, baud rate is set to 9600, data bit 8, parity none, stop bits 1 and flow control none on the console port of
the AP. The console port is used only when you want to configure the AP manually.
Avoid bending the cable to a small radius close to the connector.
Ruijie recommends you not use Ethernet cables with protective sleeves that may cause inconvenience to installation
of Ethernet cables.

3.8 Bundling Cables

Precautions

Make sure the cable bundles are neat and orderly.

Bend twisted pairs naturally or to a large radius close to the connector.

Do not over tighten cable bundle as it may reduce the cable life and performance.
Bundling Steps
4. Bundle the drop UTP/STP cables and route them to the LAN/PoE port.
5. Attach the cables in the cable tray of the rack.
·
