Power Supply; Installation Tools; Unpacking The Access Point - Ruijie RG-AP530-I V2 Series Installation And Reference Manual

NO
2
NH
3
Cl
2

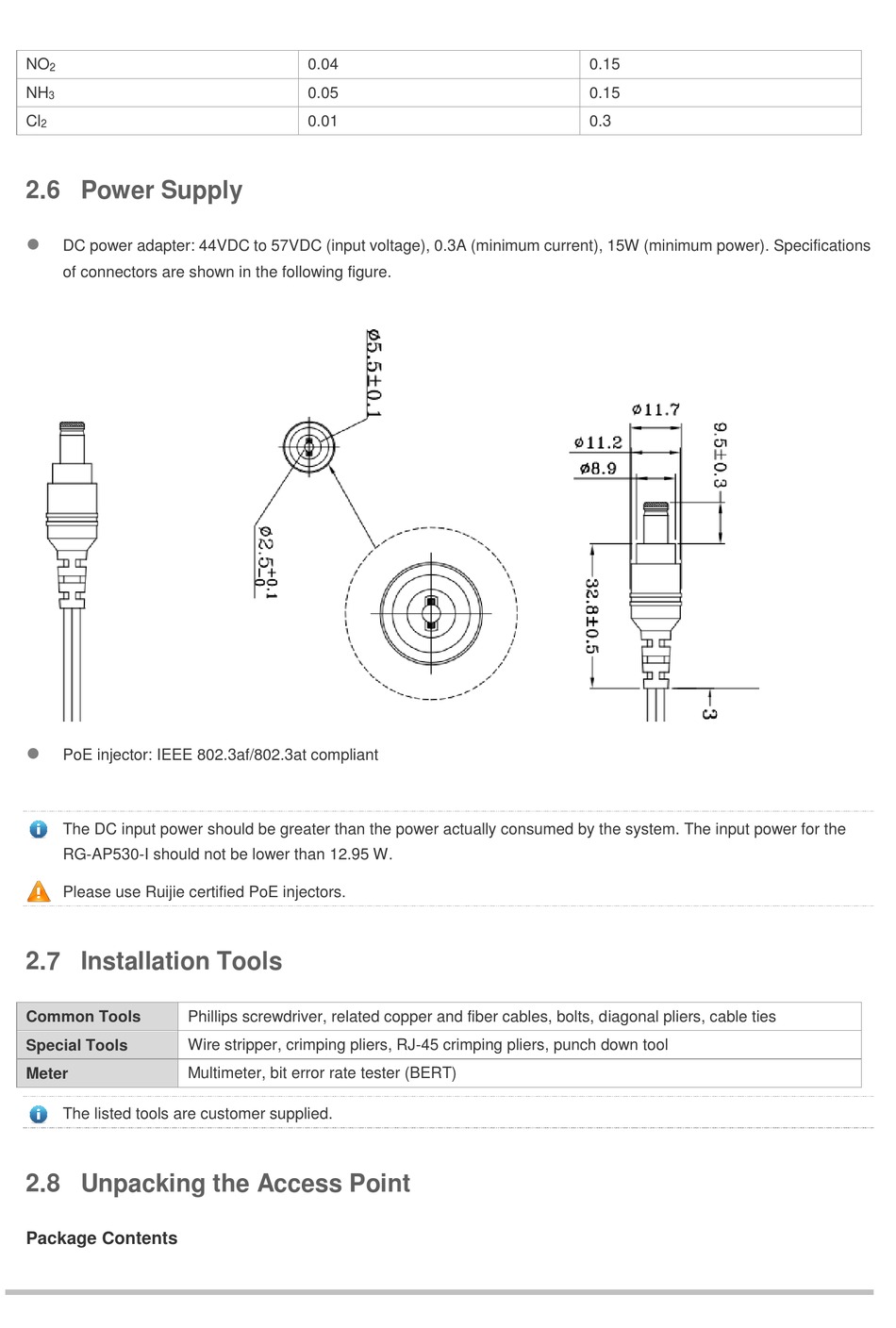

2.6 Power Supply


DC power adapter: 44VDC to 57VDC (input voltage), 0.3A (minimum current), 15W (minimum power). Specifications
of connectors are shown in the following figure.

PoE injector: IEEE 802.3af/802.3at compliant
The DC input power should be greater than the power actually consumed by the system. The input power for the
RG-AP530-I should not be lower than 12.95 W.
Please use Ruijie certified PoE injectors.

2.7 Installation Tools

Common Tools Phillips screwdriver, related copper and fiber cables, bolts, diagonal pliers, cable ties
Special Tools Wire stripper, crimping pliers, RJ-45 crimping pliers, punch down tool
Meter Multimeter, bit error rate tester (BERT)
The listed tools are customer supplied.

2.8 Unpacking the Access Point

Package Contents
0.04
0.05
0.01
0.15
0.15
0.3
·
