Hardware Installation and Reference Guide

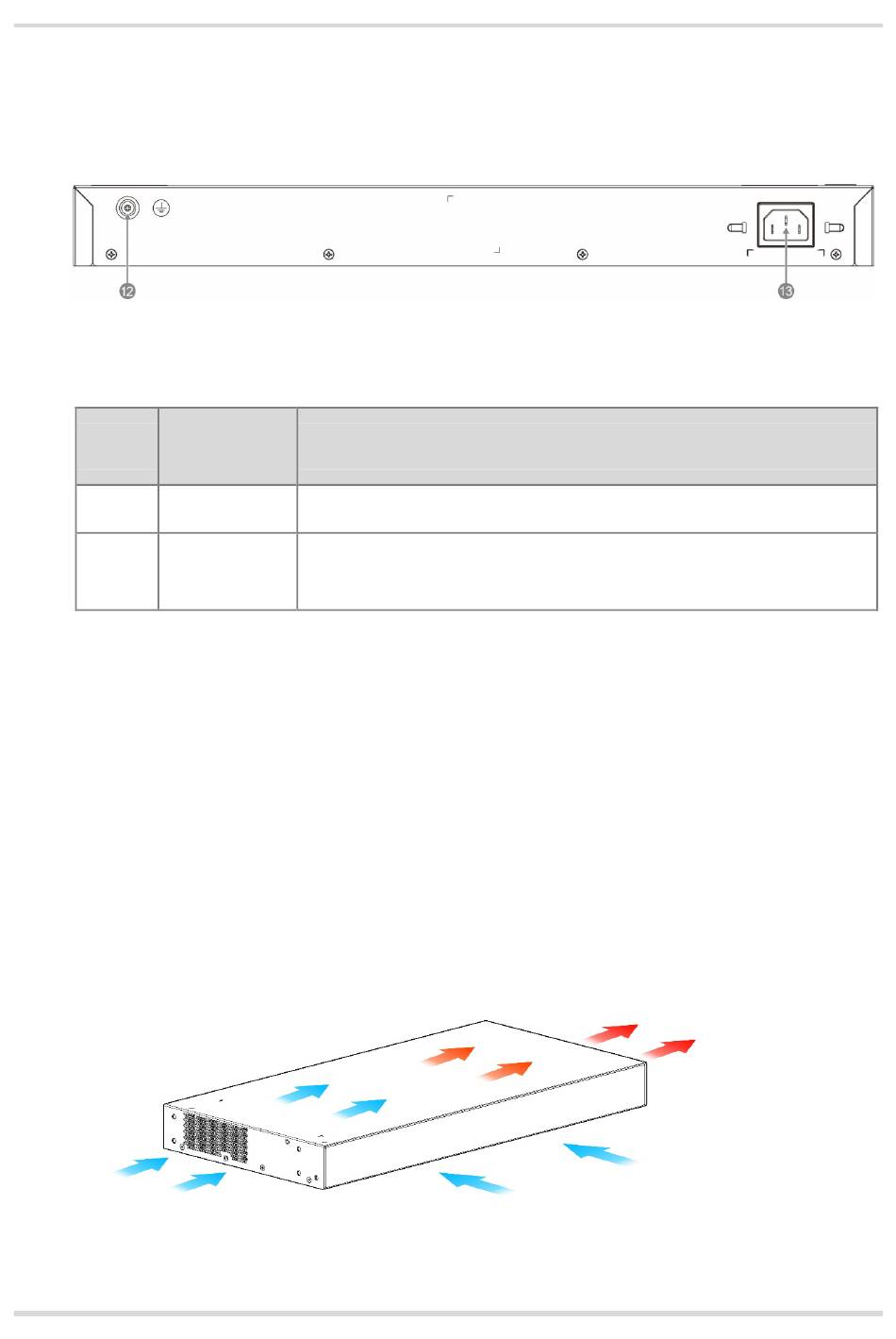

Rear panel

1.3.2
Rear Panel
Figure 1-3
Rear Panel
Table 1-3
Button
Number
Port
12 Ground screw
Power
13
port

Power Supply

1.3.3
RG-AM5528-SF has a built-in power supply module, and the rear panel provides an AC
power input port.

Heat Dissipation

1.3.4
RG-AM5528-SF uses a built-in cooling fan. The left and front panels provide air inlets, and
the right panel provides air outlets to ensure that the device works normally in the specified
environment. There should be a space of 10 cm on the left/right sides and the front panel of
the chassis to facilitate air circulation. The heat dissipation is as follows:
Air flow diagram
Figure 1-4
and
Function Description
Connected to the ground cable for the entire device.
input
Connected to the AC power cable.
4
Product Overview
