Zip HydroTap G4 Celsius Installation Instructions Manual page 12
Filtered boiling, chilled and chilled sparkling drinking water with unfiltered mixed hot and cold water for residential kitchens celsius residential series
Hide thumbs
Also See for HydroTap G4 Celsius:
- User manual (20 pages) ,
- Installation instructions manual (28 pages) ,
- Installation instructions manual (16 pages)
Table of Contents
Advertisement
1.2 Chilled and sparkling + mixed hot & cold tap installation
Note Make sure the tap location will allow
the tap spout to drain into the sink.
Page 12 of 28
Installation instructions

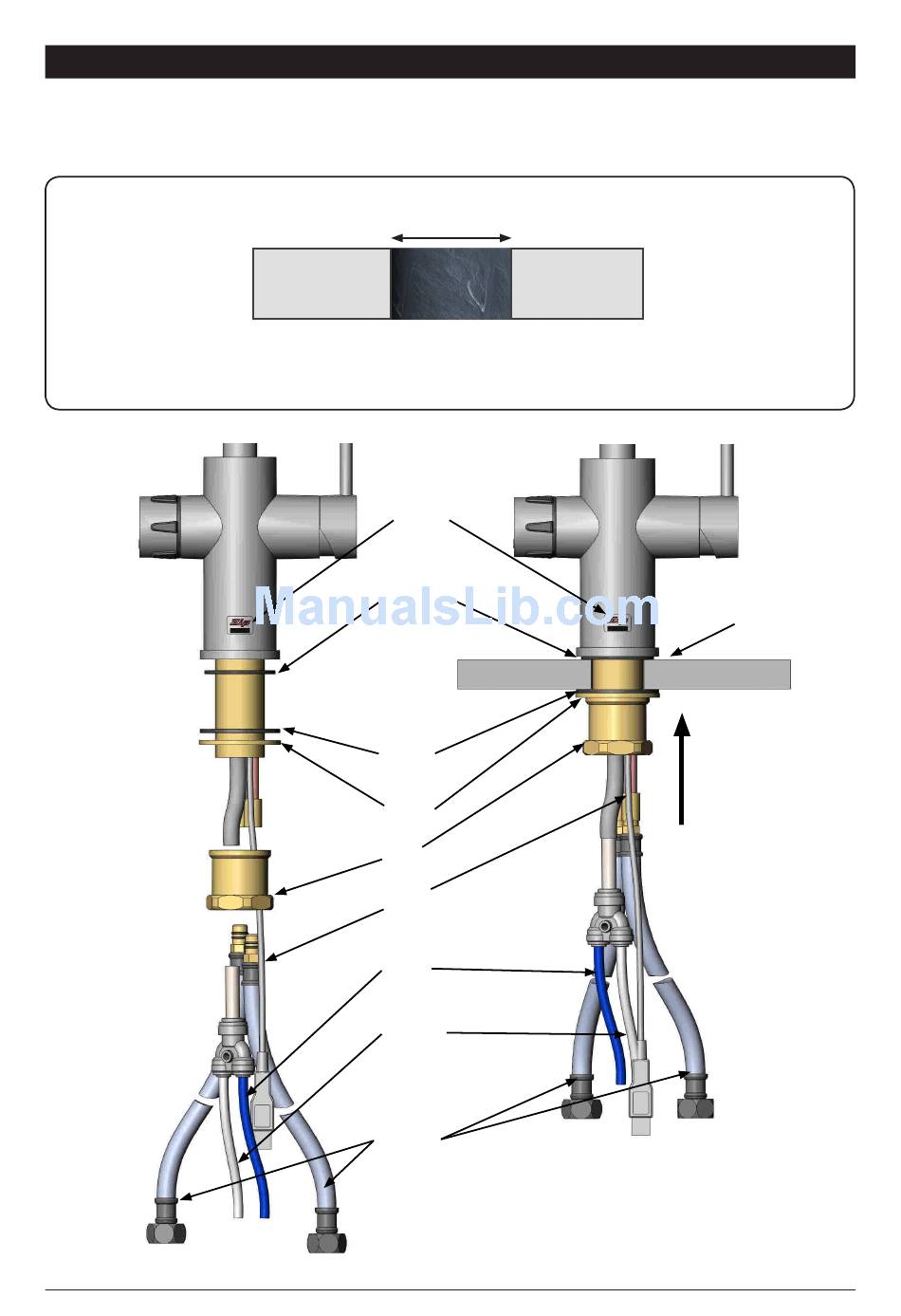

Celsius taps require a
Ø
Ø35mm
Vent
Upper
rubber
washer
Lower
rubber
washer
Brass
washer
Nut
USB
lead
Chilled
pipe
Sparkling
pipe
Mains hot
and cold
braided
hoses
802149UK Celsius residential - Installation instructions -Jan 2016 v2.03
35mm hole.
35mm hole
Ø
Fit the brass and
rubber washers
and secure with
brass nut.
