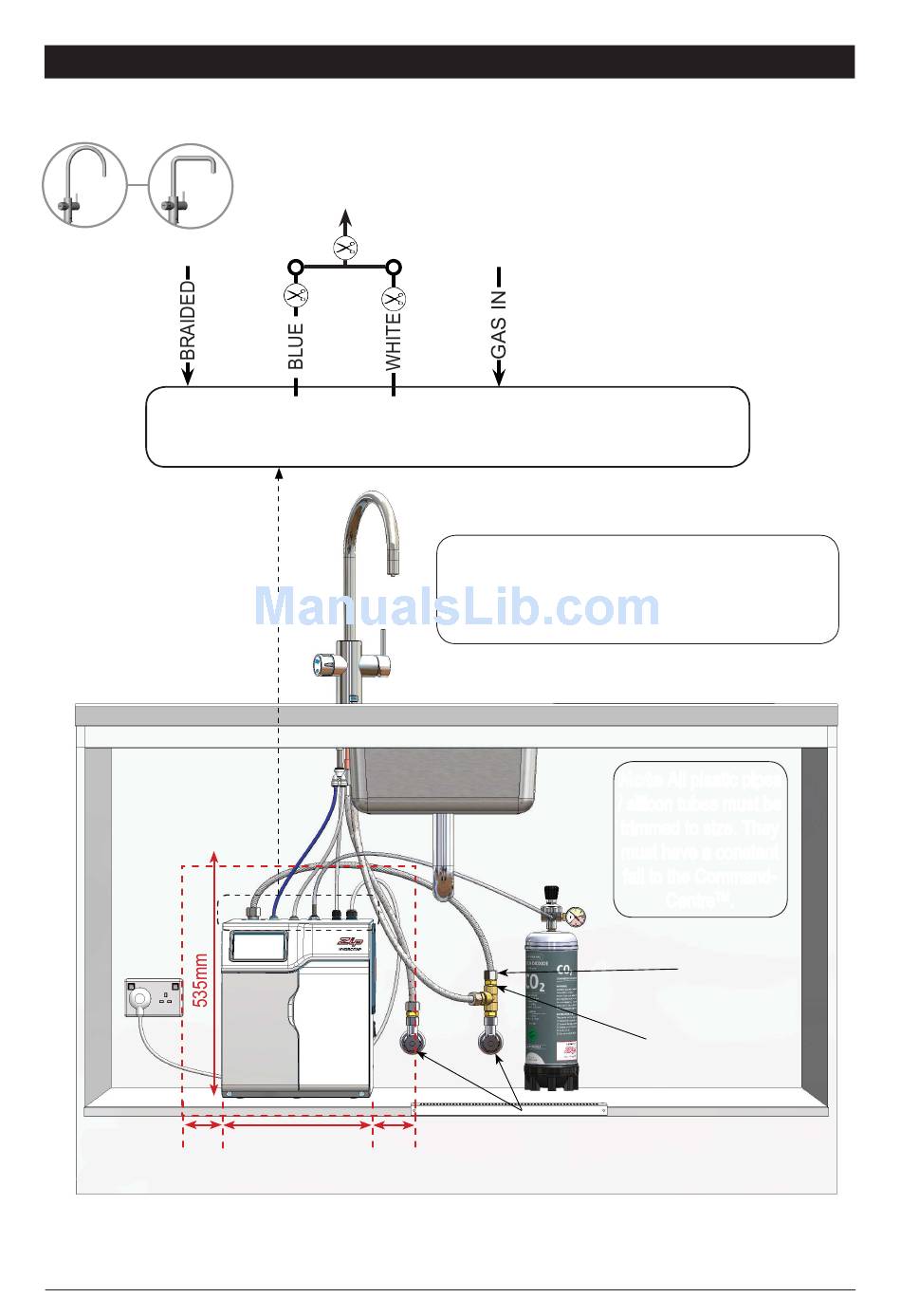

5.3 Chilled, sparkling and mixed hot & cold
Arc
Cube
MAINS
IN
Clearance
Envelope
50mm
Note
The connection hoses supplied with the tap CANNOT be lengthened, chilled pipes must be insulated
with the insulation provided.
802149UK Celsius residential - Installation instructions -Jan 2016 v2.03
Installation instructions
SPARKLING
CHILLED
OUTLET
OUTLET
280mm
50mm
CO
2 USB
IN
Note Mains hose length is 750mm.
Electrical power cable length is 3.0m nom.
Position the Command-Centre
hose and cable lengths supplied.
Note All plastic pipes
/ silicon tubes must be
trimmed to size. They
must have a constant
fall to the Command-
External HOT and COLD
isolation valves
(not supplied)
POWER
CABLE
according to the
TM
Centre .
TM
Male to male adaptor
to T-piece
(supplied)
T-piece
(supplied)
