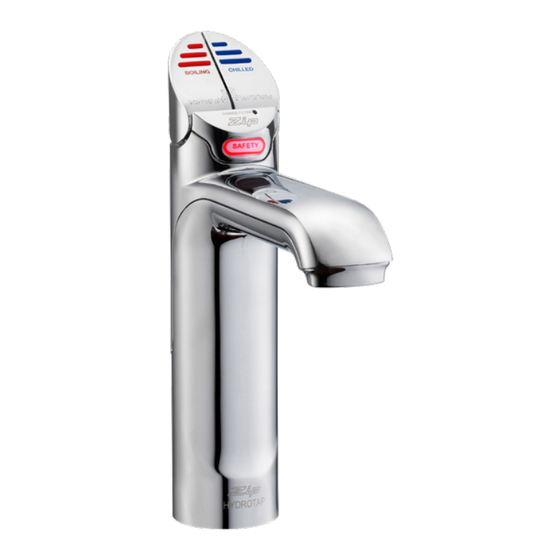

- Page 1 Zip HydroTap ® Installation and Operating Instructions BC100/75 and BC Scan QR Code to download the latest version of this document. English French 802411US v1.27 06.21 BC, BC100-75 Install Instructions Page 1 of 32...
- Page 2 Faucet options The HydroTap appliance series offers a range of interchangeable faucets to suit the customer’s needs. For ease of installation, it is recommended to fit the faucet before installing the Command Center. The installation procedure for each of the faucets is detailed in the Faucet Installation instruction book supplied with the faucet.
-
Page 3: Table Of Contents
Index HydroTap Specifications Installation Check List ........................4 General Product Features ......................5 Important Safety Instructions ....................... 6 Warnings and Regulatory Information ..................7 Major Components and Accessories ................... 8 Technical Specification ........................ 9 Before Installation and Site Requirements ................... 10 Installation Procedure STEP 1 - Fit the faucet to the benchtop or sink, before installing the Command Center. -
Page 4: Installation Checklist
Installation checklist Before Installation: Read the instructions and check if there is adequate space to mount all of the components. Note: Not all fittings are supplied with the appliance kit. Isolation valves are not supplied. Check the mains water pressure is between 150 - 700 kPa (22 - 100 psi) and 200 - 700 kPa (30 - 100 psi) when a booster is installed. -
Page 5: General Product Features
General Product Features Thank you for purchasing a Zip HydroTap. Please read and follow these instructions carefully to ensure safe and trouble free service. What is the Zip HydroTap ? The Zip HydroTaps are electronically controlled, filtered, Boiling water and Chilled water drinking systems for kitchens and tea rooms. -
Page 6: Important Safety Instructions
Lifting Take care when lifting the Zip HydroTap Command Center. Some units may exceed safe lifting limits. If you feel this is beyond your personal capabilities, please seek assistance with the lift. The weights of the units are marked on the packaging. -
Page 7: Warnings And Regulatory Information
WARNINGS 1. The Zip HydroTap Command Center must be earthed. The resistance of the earth connection from each exposed metal part must be less than 1 ohm. 2. All Installation and service work must be completed by trained and suitably qualified Tradespeople. -
Page 8: Major Components And Accessories
Major Components and Accessories Parts supplied Description Accessories Description 1x Faucet option Font (Drip Tray) with hoses Kit for Arc & Cube (Classic Faucet models shown) 93580US (Chrome) 1x HydroTap Command Center Font (Drip Tray) Kit with air and water for Classic Models filters 93303US (Chrome) -
Page 9: Technical Specification
Technical Specifications Models*: BC100/75 (230V) - Classic XX BC100/75 (230V) - CUBE XX BC100/75 (230V) - ARC XX BC (230V) - Classic XX BC (230V) - ARC XX BC (230V) - CUBE XX BC (230V) - Wave XX BC (110-120V) - Classic XX BC (110-120V) - ARC XX BC (110-120V) - CUBE XX BC (110-120V) - Wave XX... -
Page 10: Before Installation And Site Requirements
Before Installation Before installing ensure that the following have been provided at the installation site: • Review all the technical specifications. • Ensure the underbench can support the product weight when full of water (allow an extra 5 kg (11 lb) when full.) •... -
Page 11: Section 2 - Ventilation
Section 2 Ventilation When installing air flow ducts, the following tools will be required: • Jigsaw and a 12mm (½”) Drill • Keyhole or Wall Board saw. 2.1 Ventilation for All Models Proper air circulation must be provided for all models. The system will operate correctly only if the recommended air gaps are achieved during installation. -
Page 12: Cabinet Air Circulation
Ventilation When installing air flow ducts, the following tools will be required: • Jigsaw and a 12mm (½”) Drill • Keyhole or Wall Board saw. 2.3 Alternative Ventilation If the air flow, using the silicone door buffers, is insufficient, it will be necessary to fit a standard HydroTap vent kit, which ensures heat dissipation through natural convection via installed vents. - Page 13 Ventilation Typical cut-out procedure for 1. Mark out and cut the air inlet and door outlet holes as shown 2. Ensure the air inlet vent and air outlet vent are positioned at opposite ends of the same cabinet space. 3. Fit the inlet vent, as shown and secure with 5 screws 4.
-
Page 14: Section 3 - Command Center Installation
The diverter bypass valve allows the user to choose to have the boiling water treated either by the internal or by an optional external water treatment device. This diverter valve is located at the rear panel of the Zip HydroTap Command Center (see the image below). -
Page 15: Hose And Tube Fitting
Installation Instructions Hose and tube fitting • Remove all caps from the top of the Command Center (except the mixer caps) • Only remove the mixer caps if a mixer faucet is to be fitted. • Fit the foam insulation to the Blue and to the White tubes after trimming them to length •... -
Page 16: Model Bc Installation And Connection
Installation Instructions Model: BC 100/75 Boiling Chilled Note: Note: The hoses need to have a constant downward gradient to the HydroTap to allow all water to drain back into the tanks. BOILING BYPASS VENT BYPASS MAINS MIXER MIXER CHILLED Note: Mains hose length is 750mm (30”) Plug and Cord length is... -
Page 17: Section 4 - Commissioning
Section 4 Commissioning • Turn ON the water and gas and check for any leaks. • Turn the power ON at the outlet and at the side of the Command Center • If fitted, ensure the Booster is turned OFF (the Booster is commissioned, later, at section 4.5) •... -
Page 18: Boiling Calibration
Conditioning Procedure Note: Zip HydroTap Command Centers are sanitized during manufacturing and required final flushing before normal use. 1. Dispense 6 liters (1.6 gallons) of boiling water from the boiling outlet of the HydroTap (Equivalent to 2 complete tanks full of water) 2. -
Page 19: Troubleshooting
Flow Sensor Fault Internal fault Call Zip Service Contact your local service provider or Zip’s US distributor Culligan International Company on US Toll Free 1-833-233-2358 for assistance, service, spare parts or enquiries. 802411US v1.27 06.21 BC, BC100-75 Install Instructions Page 19 of 32... -
Page 20: End Of Life Disposal
End of Life Disposal In order to help preserve our environment we ask that you dispose of this product correctly. This product should not be treated as domestic waste, but should be taken to a dedicated recycling center for electrical and electronic equipment. -
Page 21: Performance Data Sheets
67 Allingham Street, Condell Park NSW 2200 Australia Distributed in US and Canada by: Culligan International Company Call Zip’s US distributor Culligan International Company on US Toll Free 1-833-233-2358 for assistance, service, spare parts or enquiries. Testing Conditions and Results:... - Page 22 67 Allingham Street, Condell Park NSW 2200 Australia Distributed in US and Canada by: Culligan International Company Call Zip’s US distributor Culligan International Company on US Toll Free 1-833-233-2358 for assistance, service, spare parts or enquiries. Testing Conditions and Results:...
- Page 23 67 Allingham Street, Condell Park NSW 2200 Australia Distributed in US and Canada by: Culligan International Company Call Zip’s US distributor Culligan International Company on US Toll Free 1-833-233-2358 for assistance, service, spare parts or enquiries. Testing Conditions and Results:...
- Page 24 67 Allingham Street, Condell Park NSW 2200 Australia Distributed in US and Canada by: Culligan International Company Call Zip’s US distributor Culligan International Company on US Toll Free 1-833-233-2358 for assistance, service, spare parts or enquiries. Testing Conditions and Results:...
- Page 25 67 Allingham Street, Condell Park NSW 2200 Australia Distributed in US and Canada by: Culligan International Company Call Zip’s US distributor Culligan International Company on US Toll Free 1-833-233-2358 for assistance, service, spare parts or enquiries. Testing Conditions and Results:...
- Page 26 67 Allingham Street, Condell Park NSW 2200 Australia Distributed in US and Canada by: Culligan International Company Call Zip’s US distributor Culligan International Company on US Toll Free 1-833-233-2358 for assistance, service, spare parts or enquiries. Testing Conditions and Results:...
- Page 27 67 Allingham Street, Condell Park NSW 2200 Australia Distributed in US and Canada by: Culligan International Company Call Zip’s US distributor Culligan International Company on US Toll Free 1-833-233-2358 for assistance, service, spare parts or enquiries. Testing Conditions and Results:...
-
Page 28: Warranty
Zip Customer can opt to extend the Zip Product warranty by one (1) year, making the total Limited Warranty period two (2) years. In order to extend the warranty to two (2) years, the Zip Customer must register their product with Zip. - Page 29 Dispute Resolution If the Zip Customer is not satisfied with the warranty service, he or she must submit a claim in writing to Zip’s Dispute Settlement Representative at Culligan International Company, d/b/a Zip Water, 9399 W Higgins Rd, Rosemont, IL 60018.
- Page 30 Notes Page 30 of 32 802411US v1.27 06.21 BC, BC100-75 Install Instructions...
- Page 31 Notes 802411US v1.27 06.21 BC, BC100-75 Install Instructions Page 31 of 32...
-
Page 32: Contact Details
Call US Toll Free 1-833-233-2358 for assistance, service, spare parts or enquiries. As Zip policy is one of continuous product improvement, changes to specifications may be made without prior notice. Images in this booklet have been modified and may not be true representations of the finished goods.
